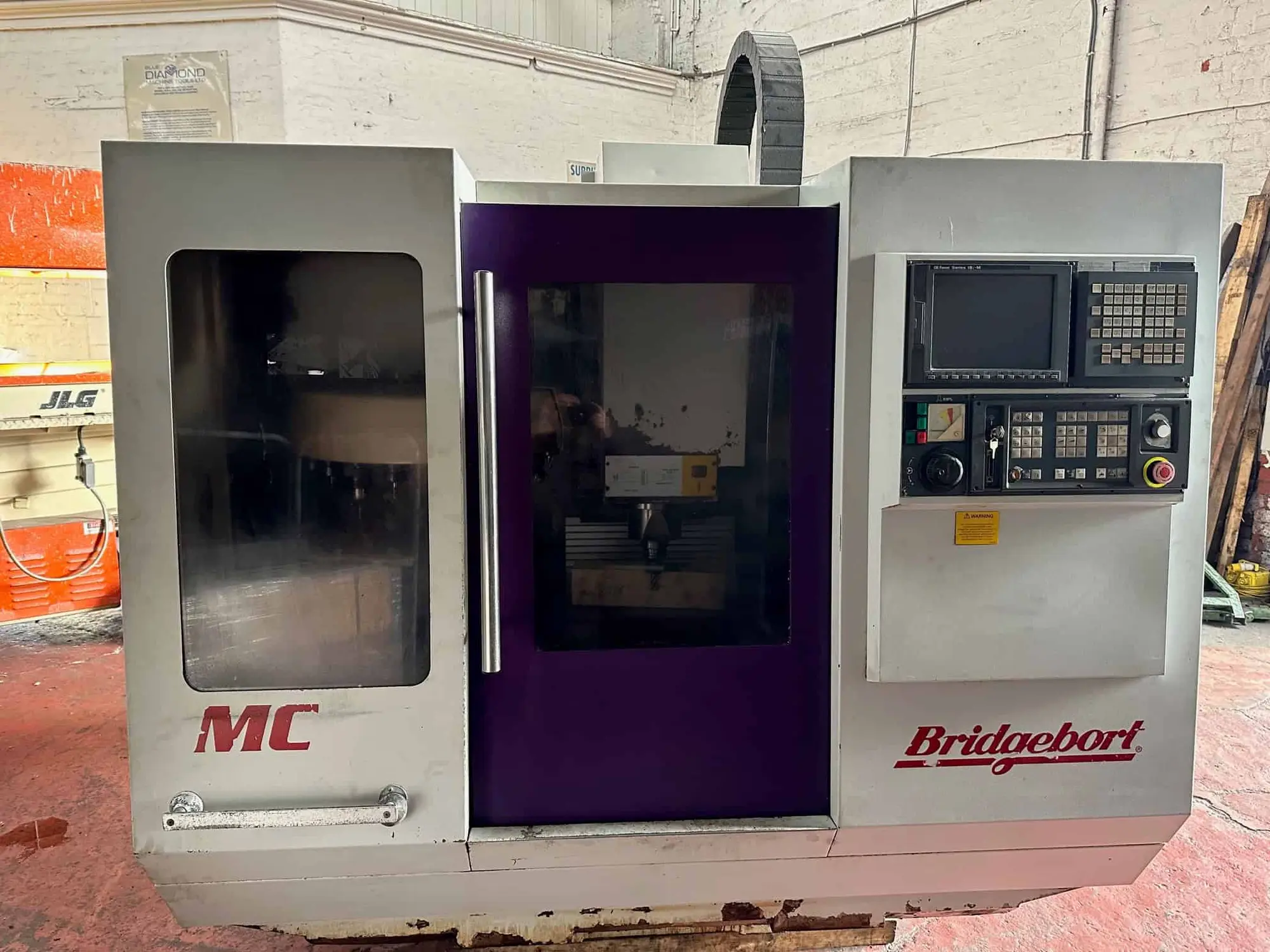

Bridgeport VMC 600

Bridgeport VMC 600 CNC Vertical Machining Centre – Precision, Power & Reliability
The Bridgeport VMC 600 is a robust and versatile CNC vertical machining centre built to deliver dependable performance in demanding manufacturing environments. Engineered for precision milling, this proven machine tool offers a perfect balance of capacity, rigidity and ease-of-use — making it ideal for job shops, toolrooms and production facilities seeking dependable vertical machining capability.
Key Features & Capabilities
Generous Work Envelope: With 600 mm X-axis, 410 mm Y-axis and 520 mm Z-axis travel, the VMC 600 provides a spacious machining area to accommodate a wide variety of parts and fixtures.
Spindle & Tooling: Designed with a BT40 spindle taper and capable of high spindle speeds up to around 8 000 rpm (exact figure may vary by configuration), this machine excels in efficient material removal and fine surface finishes across steels, aluminium and engineered plastics.
CNC Control: Fitted with a reliable CNC control (often Fanuc Series 18i-M or similar), the VMC 600 supports complex part programming and repeatable precision for batch production and bespoke components alike.
Worktable & Tool Capacity: The generous 840 × 420 mm table with T-slots offers flexibility for multiple workholding setups, while automatic tool changer options (typically 16–22 positions) significantly reduce cycle times and improve throughput.
Solid Build Quality: Built on a rigid cast structure with heavy-duty guideways and precision ball screws, Bridgeport’s milling machines are known for their mechanical stability and longevity under tough operating conditions.
Why Choose the VMC 600?
This model combines the trusted engineering of Bridgeport with the performance and programmability expected by today’s manufacturers. Whether you are producing prototype components or running repetitive production cycles, the VMC 600 delivers reliable machining accuracy and flexible performance across a broad range of applications.
Note: Specifications and control details may vary depending on the individual machine’s configuration and year of manufacture. Please contact Blue Diamond Machine Tools Ltd to confirm exact features, control type and available options before purchasing.

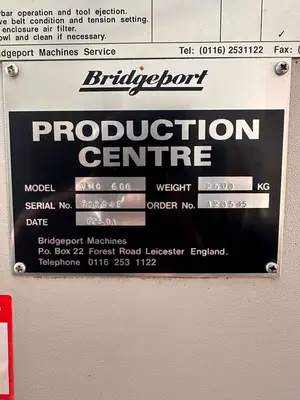

YEAR – 2001

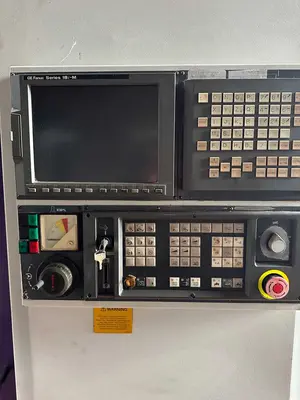

CONTROL – FANUC 18i-M
TABLE SIZE – 840 x 420 mm
TRAVLERS – X: 600 mm Y: 410 mm Z: 520 mm
SPINDLE – BT 40
SPINDLE SPEEDS – 0-8000 rpm
SPINDLE MOTOR – 11.5 Kw
RAPID FEED RATED – X/Y AXES 40m/min
RAPID FEED RATE – Z AXES 20m/min
MAXIMUM TABLE LOAD – 500 KG
ATC – 22 STATIONS
