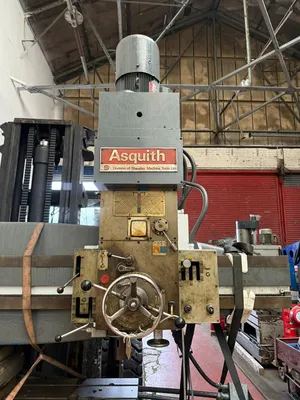

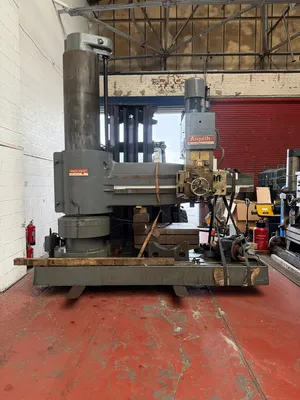

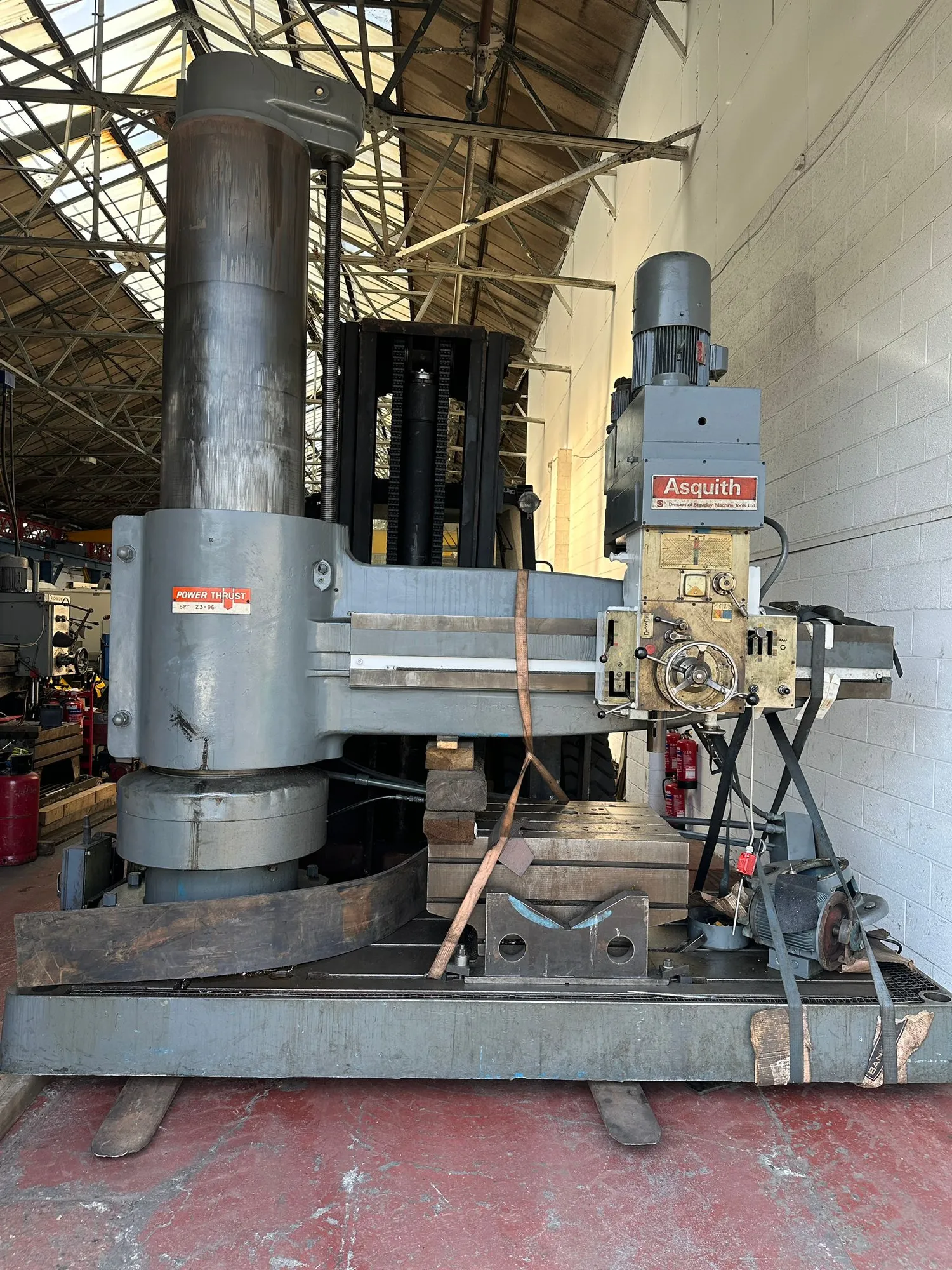

Asquith 6P 23/96 Radial Arm Drill

Overview
The Asquith 6P 23/96 is a heavy-duty radial arm drilling machine, built to deliver dependable performance in machining shops handling large workpieces. Its combination of a substantial arm travel, wide spindle speed range and robust construction renders it a reliable asset for demanding drilling and tapping operations.
Why It Stands Out
For a shop that needs a flexible, heavy-duty drilling machine capable of large reach and secure holding, this Asquith radial arm drill offers a compelling combination of capacity and functionality. The extended spindle-to-base clearance and long arm travel make it well-suited for large structural components or tall work-pieces. Power assisted features (e.g., elevating arm, power clamping) help reduce setup time and operator fatigue — an important advantage for higher-volume or heavy-work operations.
Ideal For
– Fabrication shops working on large components needing drilling or tapping with reach and versatility.
– Operations where fixed drill presses lack the reach or flexibility for tall or large work-pieces.
– Workshops needing a machine with both strong drilling/tapping capacity (50 mm) and good arm/travel reach.
– Facilities looking to invest in a used machine with robust specification and reputable supplier backing.

Specification
Drilling Capacity in Mild Steel: 50mm
Tapping Capacity in Mild Steel: 50mm
Max Distance Spindle to Base: 1490mm
Min Distance Spindle to Base: 365mm
Column Diameter: 406mm
Arm Travel: 965mm
Spindle Speeds: 10 – 2000rpm
Spindle Taper: 5MT
Spindle Travel: 381mm
Main Motor: 4.5kW
Equipment
Power Elevating Arm

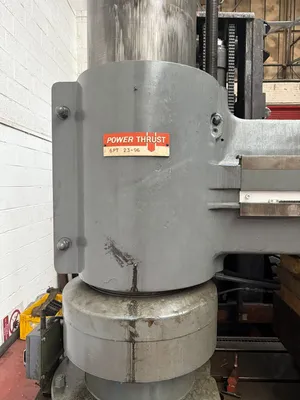

Power Clamping for Arm & Head
Coolant System
Worklight

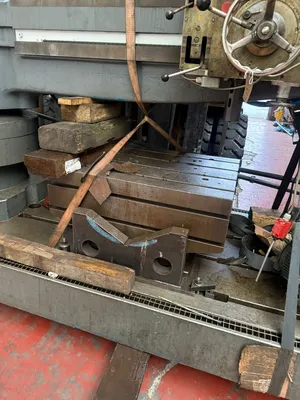

Box Table
Approx dimensions: 3.0m x 1.2m x 3.2m and weighs 6.5 tons
