Steco 200 Ton C Frame Press

Steco 200 Ton C Frame Press

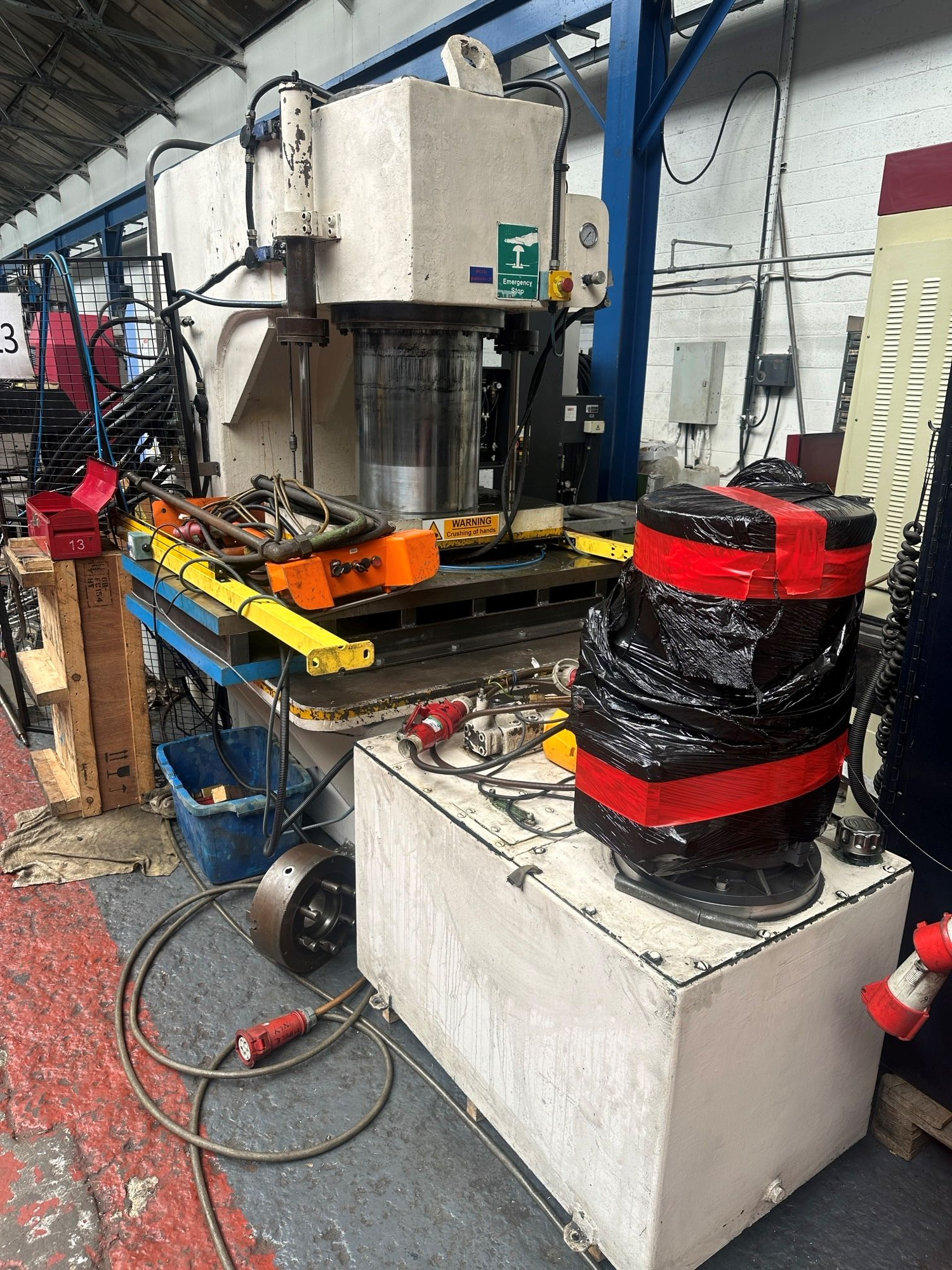

Blue Diamond Machine Tools LTD has this Steco 200 Ton C-Frame Press for sale and available for immediate delivery. The Steco 200 Ton C-Frame Press is a robust hydraulic press engineered for high-precision metal forming applications such as deep drawing, stamping, and general forming operations. Its C-frame design provides excellent accessibility, making it versatile for both standalone tasks and integration into automated production lines.​
This machine is located at our works in Shildon, If you would like more detailed information or to arrange a viewing, please contact Blue Diamond Machine Tools Ltd, using the enquiry button above to prearrange a visit. Allowing us to ensure the machine is under power for when you arrive.

Specification
200 Ton Pressing Force
Approx. 400 mm Stroke
Approx. 500 mm Open Daylight Height
Approx. 900 × 600 mm Lower Table (Bed)
T‑Slotted Ram Plate
Hydraulic Power Pack (Integrated)
Two‑Hand Push Button / Control Interface
CE Compliant Safety Features
Equipment
Front Safety Screens / Light Guarding
Emergency Stop
Optional Touchscreen HMI / Cycle Programming
Optional Hydraulic Cushion / Ejector
T‑Slotted Tooling Mounts
Approx. Dimensions & Weight
Footprint: ~2.1 m × 1.8 m
Height: ~3.4 m
Weight: ~13 ton
