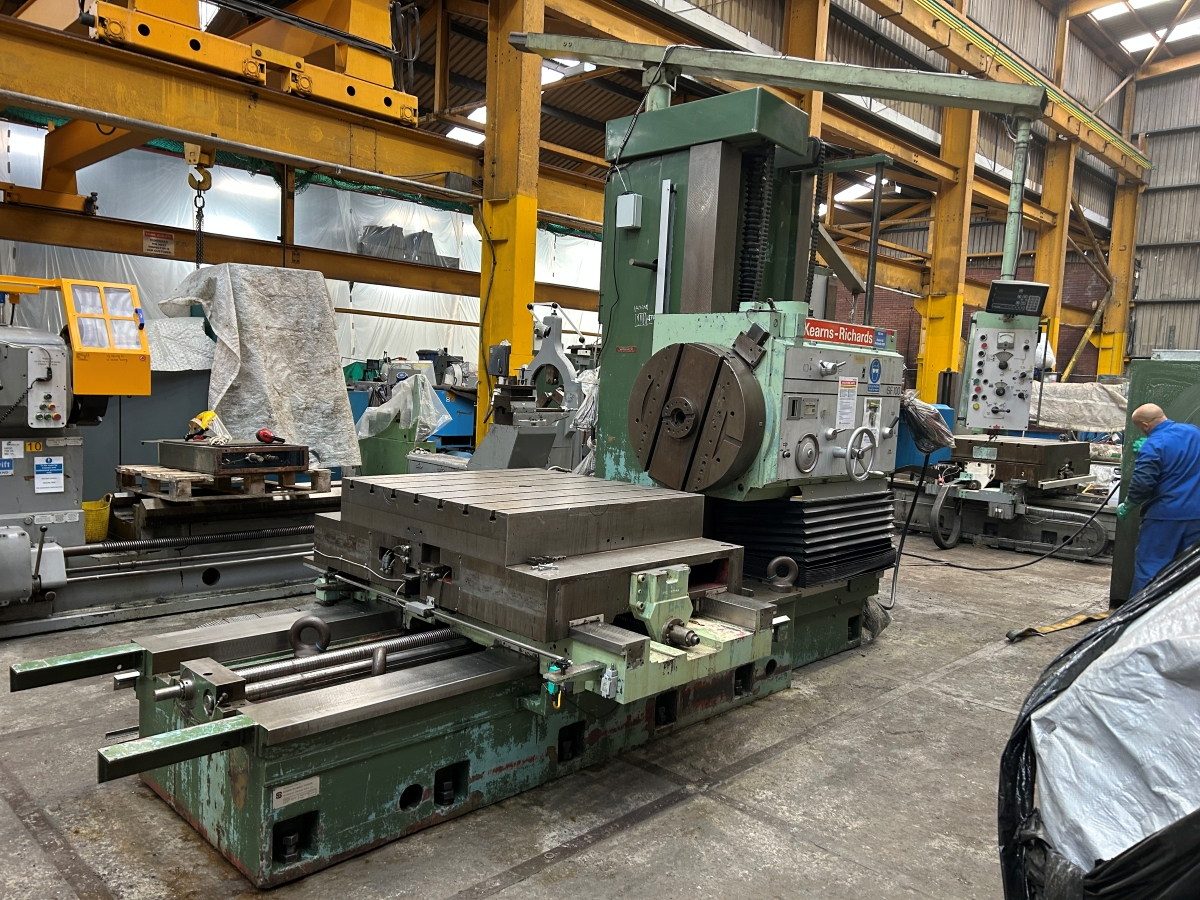

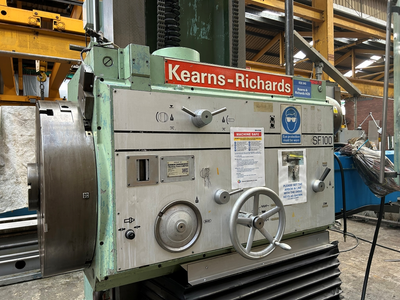

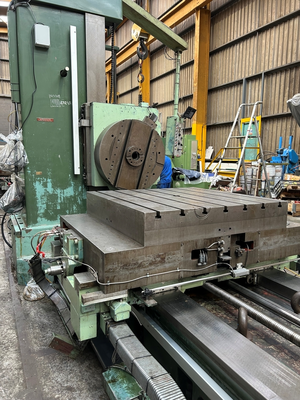

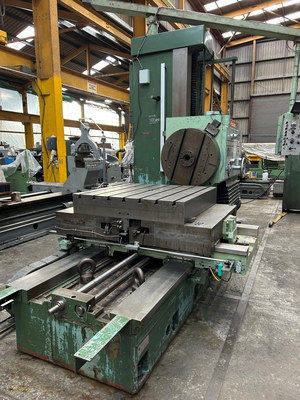

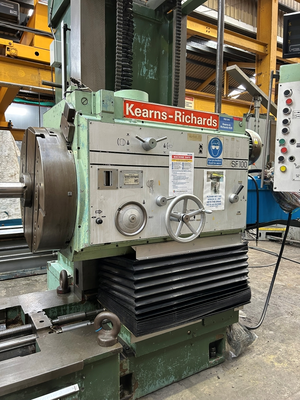

Kearns Richards SF100 Table Type Horizontal Borer

This SF 100 is a heavy-duty table-type horizontal borer built to tackle large workpieces with precision and flexibility. With a massive rotary table, wide traverses and a high-power spindle, it’s suited to production environments where big, heavy components need accurate machining.
Why It Stands Out
For any metal-working or heavy-machining facility requiring a large table horizontal borer, the SF 100 offers serious capacity and flexibility. The large table, deep feeds and wide travel ranges enable machining of large components with confidence. The inclusion of DRO technology and safety guards makes it notable among used machines.



Capacities:
Spindle Dia:                                             100mm
Spindle Speeds:                                        22 – 1120rpm
Spindle Taper:                                         50 Int
Spindle Traverse:                                    750mm
Heavy Duty Milling Quill Dia:               225mm

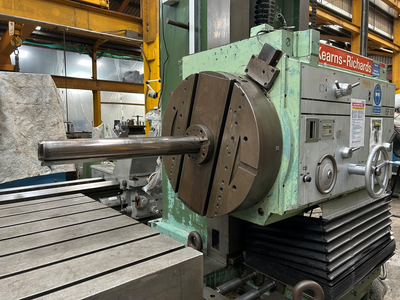

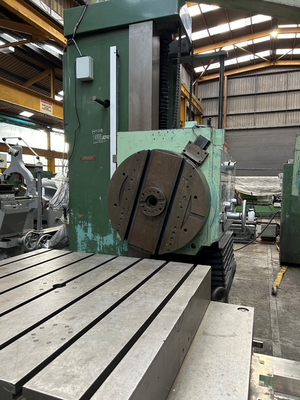

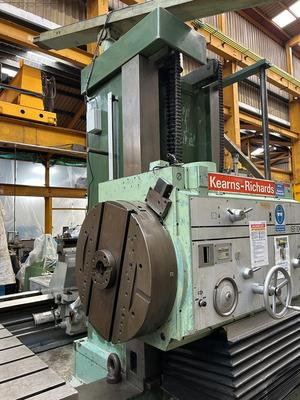

Facing Head Diameter:                           810mm
Facing Slide Traverse:                           190mm
Facing Head Speeds:                              2.2 – 224rpm

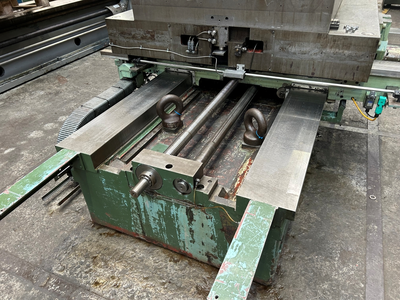

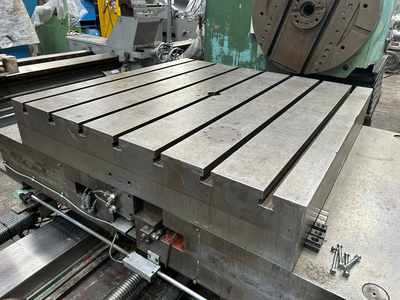

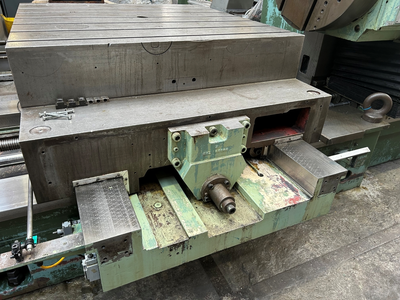

Rotary Table Size:                                 1200 x 1200mm
Longitudinal Traverse:                          1350mm
Cross Traverse:                                     1200mm
Vertical Traverse:                                 1186mm
Feed Rates:  (3 Ranges):                       1.3 – 3820mm/min

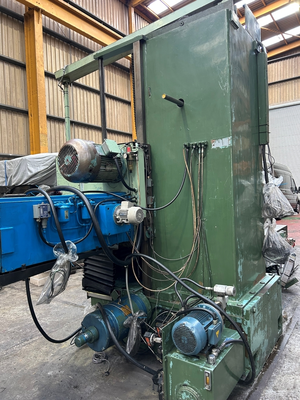

Spindle Motor:                                     18.5kw
Electrics:                                              415v, 3ph, 50 Cycles

Complete with:

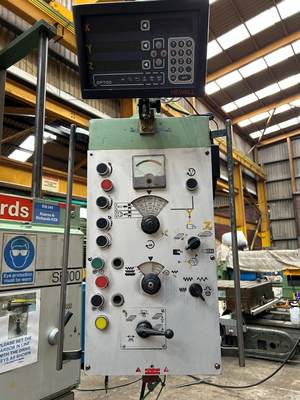

Newall DP700 3 Axis DRO
Steel Telescopic Guards to Long & Cross Traverse
Facing Slide Tool Holder
Manual Rotary Table

Approximate Dimensions:          6150 x 4700 x 4000mm
Approximate Weight:                 25000kg
