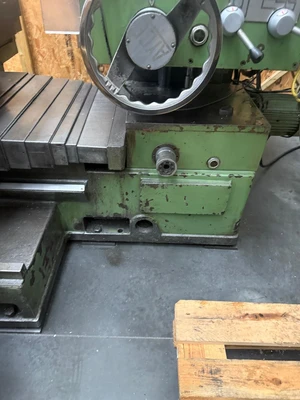

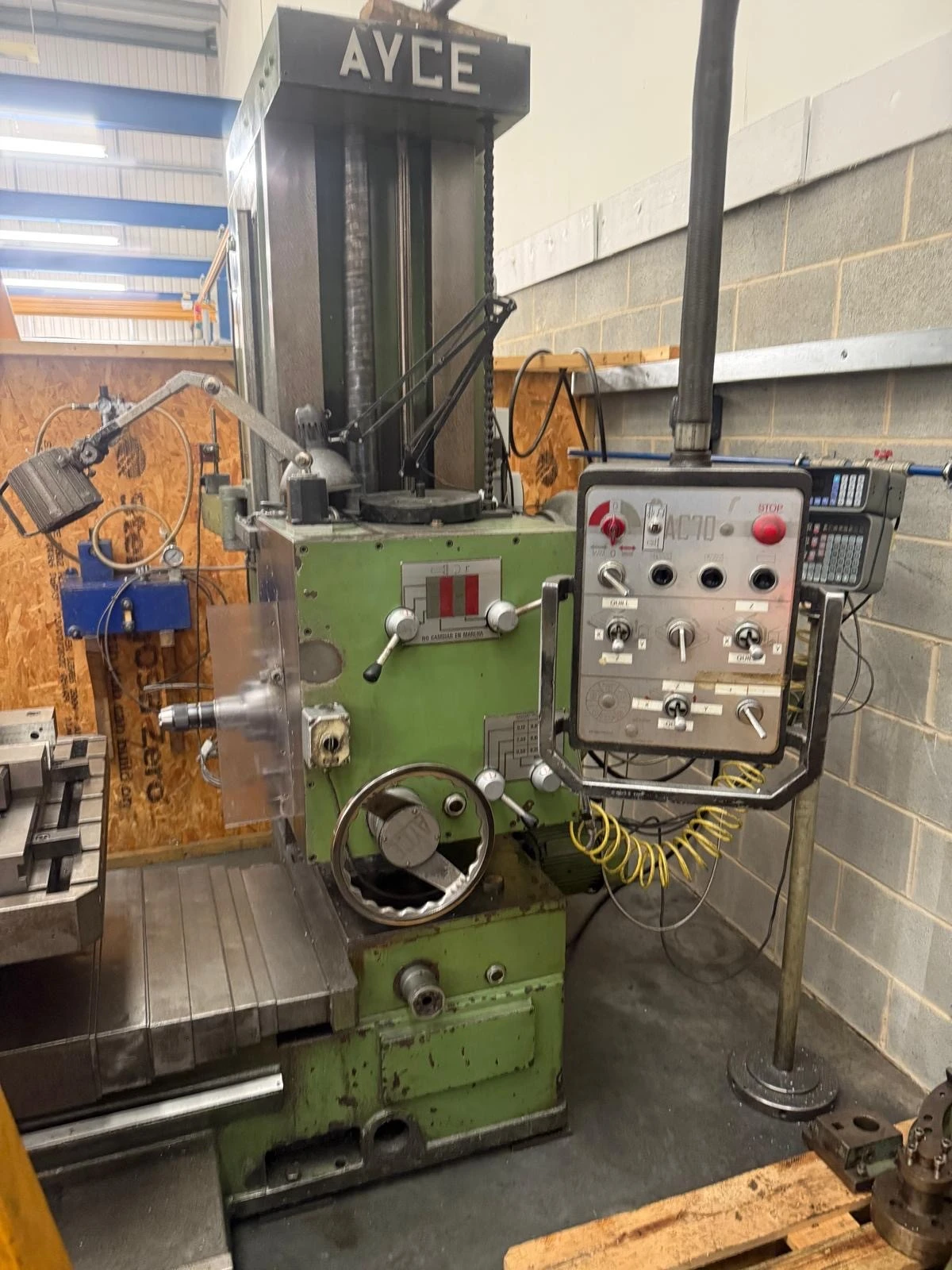

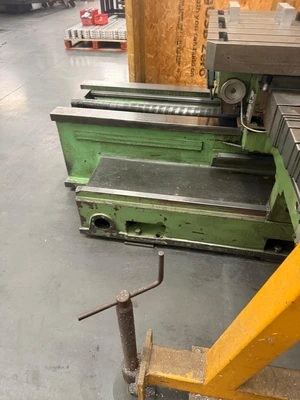

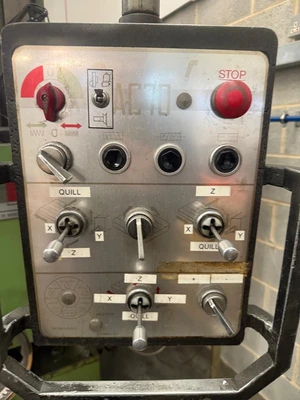

AYCE AC 70 Horizontal Borer

Ayce AC 70 Horizontal Borer for Sale
The Ayce AC 70 horizontal boring machine is a robust and versatile solution for heavy-duty machining, designed to handle large components with precision and efficiency. Built for reliability and accuracy, this machine is ideal for engineering workshops, fabrication environments, and subcontract machining operations requiring consistent performance across a wide range of applications.
Key Features
Horizontal boring machine with large working envelope
Axis travels: approx. 1500mm (X), 1000mm (Y), 1200mm (Z)
500mm spindle travel
70mm spindle with ISO 40 taper
Wide spindle speed range (18–1000 rpm)
Large rotary table (1100 x 820mm)
Heavy-duty construction for precision and stability
Suitable for a wide range of machining operations
Ideal Applications
The Ayce AC 70 is perfectly suited for:
Heavy engineering and fabrication
Machining of large castings and components
Toolroom and maintenance work
Subcontract and batch production

Calibration: metric
Rotating table size: 1100 x 820mm
Spindle size: 70mm
Spindle taper: 40 international
Spindle speeds: 18 to 1000 (12)
Spindle travel: 500mm
X axis travel: 1500mm TBC
Y axis travel: 1000mm
Z axis travel: 1200mm

Complete with

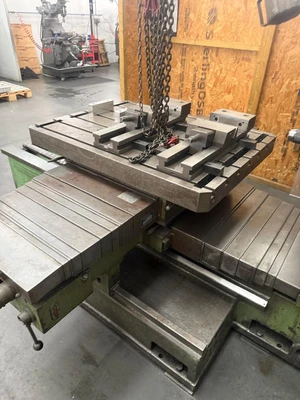

Power rotary table
3 axis DRO
Spindle steady

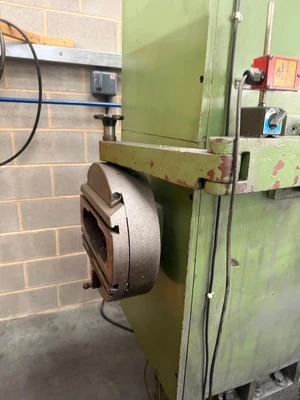

Bolt on Boring and facing head on davit 400 mm Dia
Machine in very good condition
Dims :- 3500mm long 2200mm wide 2400 high and weighs 6500 Kgs
