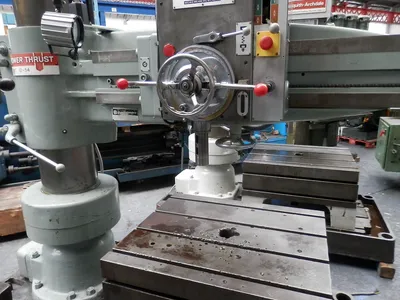

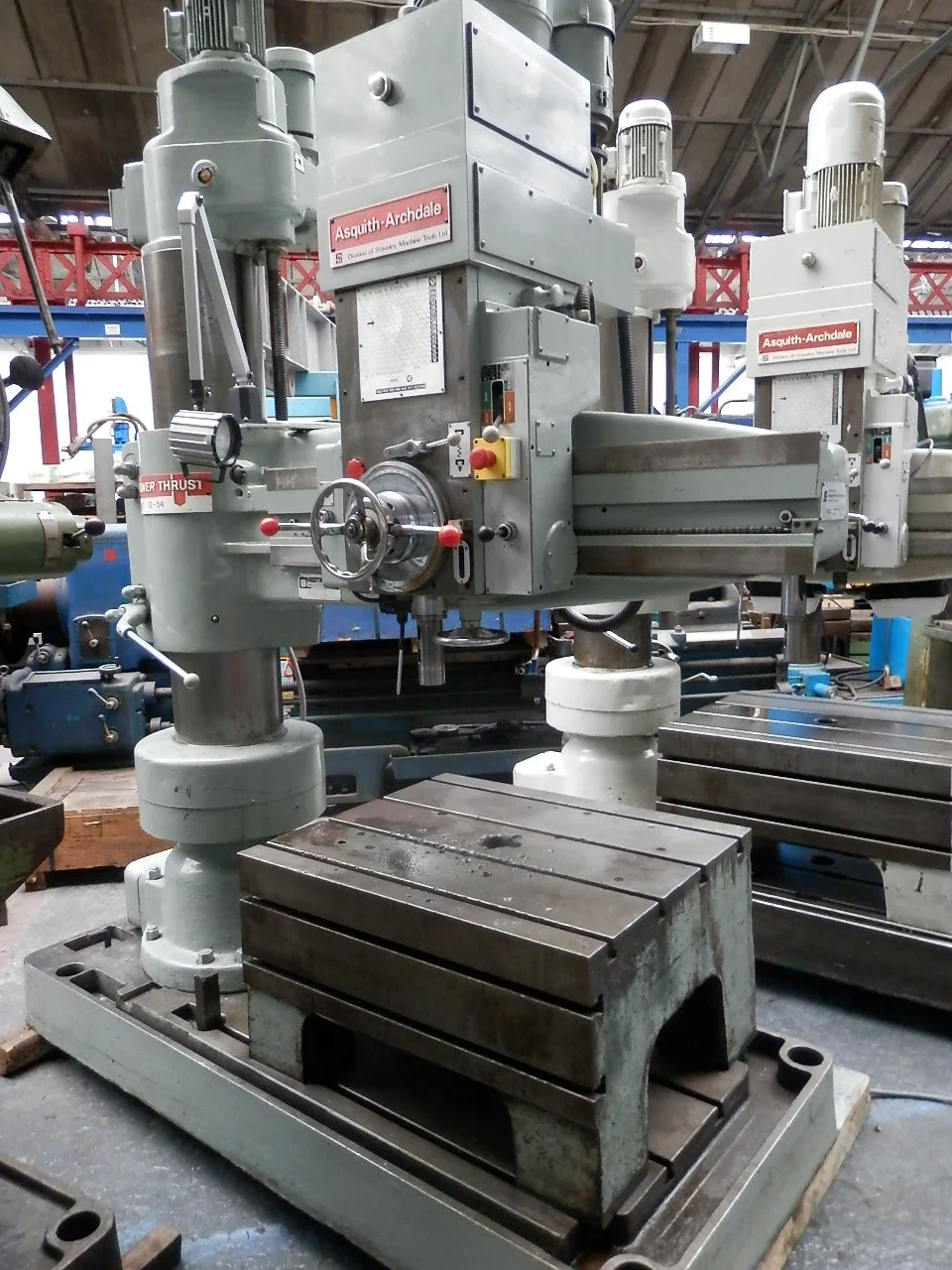

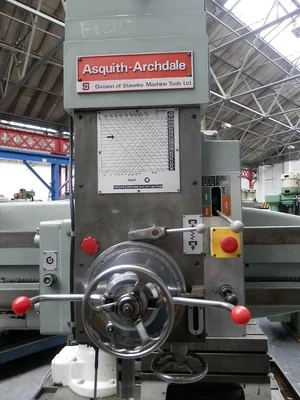

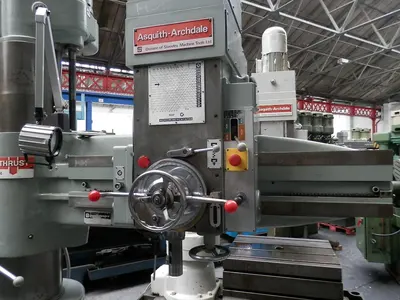

USED 1973 ASQUITH 2 PT 12-54

Asquith Power Thrust Radial Arm Drill for Sale
The Asquith Power Thrust radial arm drill is a heavy-duty, high-capacity drilling machine designed for precision machining of large components. Renowned for its robust British engineering and long-term reliability, this machine is ideal for fabrication shops, engineering firms, and production environments requiring flexibility, power, and accuracy.
Key Features
Heavy-duty radial arm drilling machine
Large arm reach for machining oversized workpieces
Morse taper spindle for versatile tooling compatibility
Wide spindle speed range for different materials
Deep spindle travel (approx. 400mm)
Power feed and clamping systems
Coolant system and safety brake
Rigid construction for precision and durability
Ideal Applications
The Asquith Power Thrust drill is perfectly suited for:
Heavy engineering and fabrication
Structural steel and plate work
Maintenance and repair workshops
Subcontract and production environments

YOM:   Dec 1973

SPECIFICATION
Spindle speeds: 40 to 2040 (18)
Spindle taper: No 4 Morse
Spindle travel: 410mm
Feeds: 0.066 to 0.963
Max spindle to base: 70″
Column Diameter: 14″
Graduations: metric
Power Locking
EQUIPMENT
Safety brake
Box table
Coolant
ELECTRICS Volt:440 Phase:3 Cycles:50

Approx dimensions: 9’x5’x11’6″ and weighs 3.5 Tons
