Kitchen & Walker 4’6″ E3

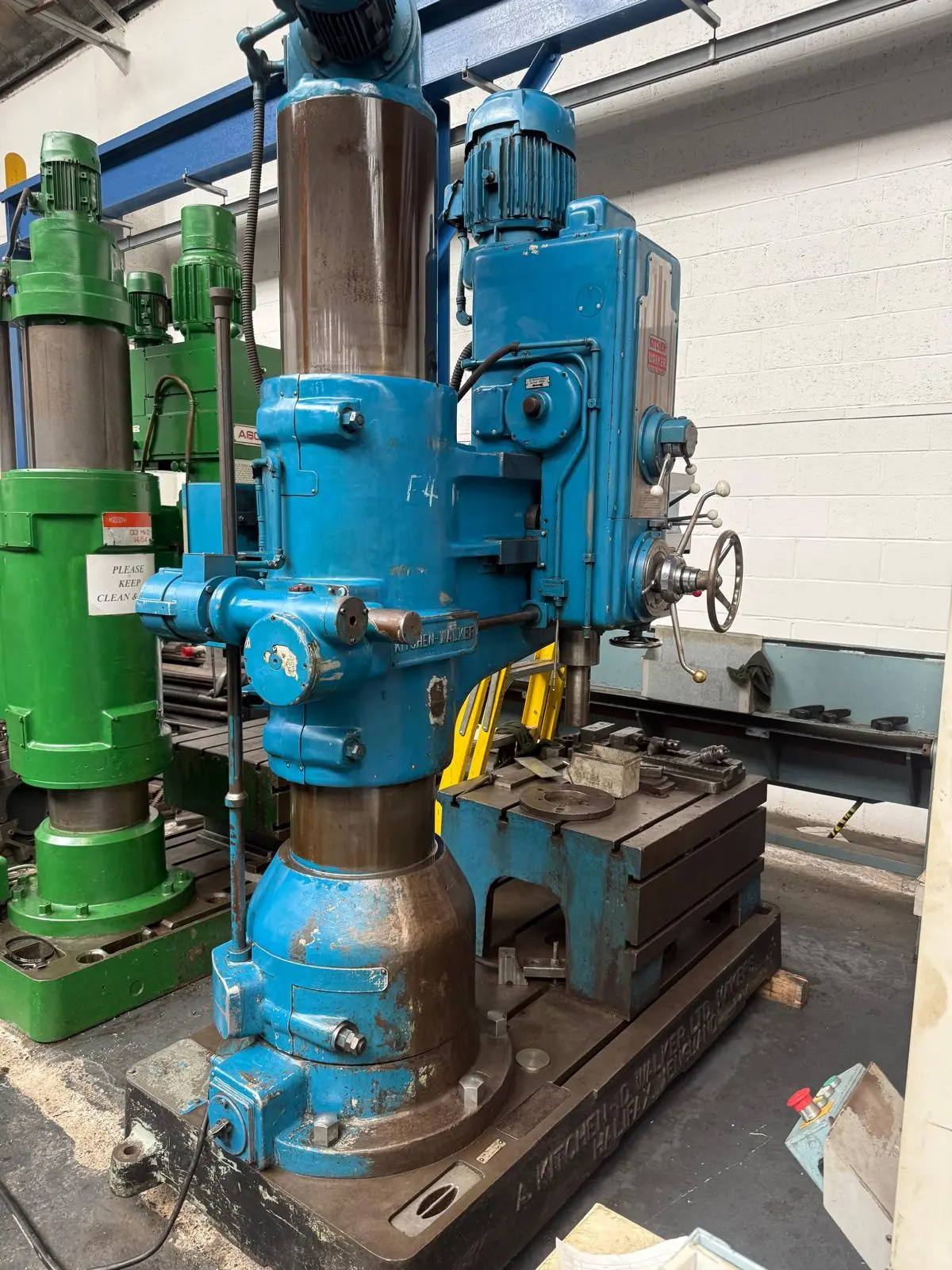

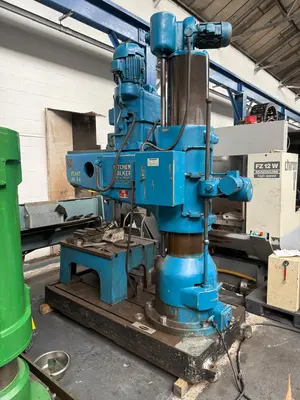

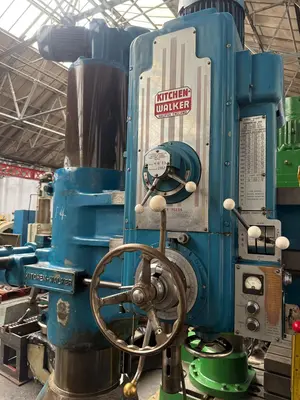

Kitchen & Walker 4′6″ E3 Radial Drill
Delivering precision and robust performance, the Kitchen & Walker 4′6″ E3 Radial Drill stands as a dependable workhorse ideally suited for demanding industrial machining tasks.
Key Features & Performance Highlights
Spindle Speed Range
Featuring versatile spindle speeds from 18 to 1500 rpm, this drill accommodates a wide spectrum of material types and drilling operations.
Spindle Specifications
Outfitted with a 5MT spindle taper and a 70 mm spindle diameter, ensuring compatibility with a broad array of tooling and high rigidity.
Quill and Travel Capacity
Boasts a 355 mm quill traverse combined with a spindle-to-base clearance ranging from 515 mm to 1365 mm, enabling precise control over depth and accommodating deep components.
Feed Precision
Offers fine feed control with spindle feeds ranging from 0.0035 to 0.041 inches per revolution, enhancing accuracy for delicate or precision drilling operations.
Sturdy Column & Base Dimensions
Built on a 300 mm diameter column and stable base footprint of 2.54 m × 1 m, providing a stable drilling platform for improved accuracy and operator confidence.
Power & Electrical Configuration
Powered by a 5 HP motor, operating on 415 V, three-phase, 50 Hz electrical supply—meeting prevalent industrial power standards.
Ready-To-Use Accessories & Safety Enhancements
Complete with a power-locking mechanism, safety brake, coolant system, box table, and a fine hand feed, this machine is both safe and operator-friendly.
Condition, Size & Weight
Offered in excellent condition, the drill comes in compact dimensions (~2000 × 1150 × 2600 mm), and weighs approximately 3200 kg, combining robustness with space efficiency.
Why This Model Stands Out
Precision Versatility
With finely adjustable feed rates and broad spindle speed, it’s perfectly suited for everything from delicate to heavy-duty drilling tasks.
Heavy-Duty Reliability
Kitchen & Walker’s E3 model boasts industrial-grade construction, ensuring consistent performance and longevity.
Operator Confidence & Convenience
Equipped with built-in safety and lubrication systems, it’s primed for hassle-free operation and reduced maintenance.
Optimised Workshop Footprint
Its compact size and sturdy foundation offer a space-efficient solution without compromising stability.
The Kitchen & Walker 4′6″ E3 Radial Drill merges precision engineering, operator-friendly design, and sturdy construction. With its adjustable feed range, powerful motor, and essential safety features, it comes ready to drive productivity and accuracy right out of the gate.

TYPE:   E3
Capacities:
Spindle Speeds:                       18 -1500rpm   (18)
Spindle Taper:                         5MT
Spindle Diameter:                   70mm
Spindle Feeds:                         0.0035 – 0.041 Inch Per Rev (9)
Quill Traverse:                         355mm
Spindle To Base Max:              1365mm
Spindle To Base Min:              515mm
Column Diameter:                  300mm
Base Dimension:                      2.54m x 1m
Motor:                                     5HP
Electrics:                                 415v, 3ph, 50 Cycles
Complete With:
Power Locking
Safety Brake
Coolant

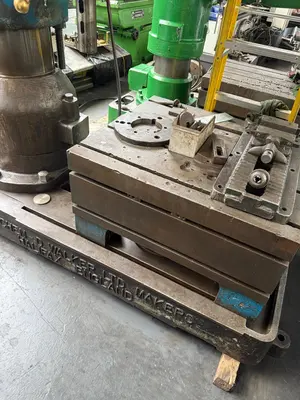

Box Table
Fine Hand Feed
Machine is in excellent condition
Approximate Dimensions:   2000 x 1150 x 2600mm
Approximate Weight:          3,200kg
