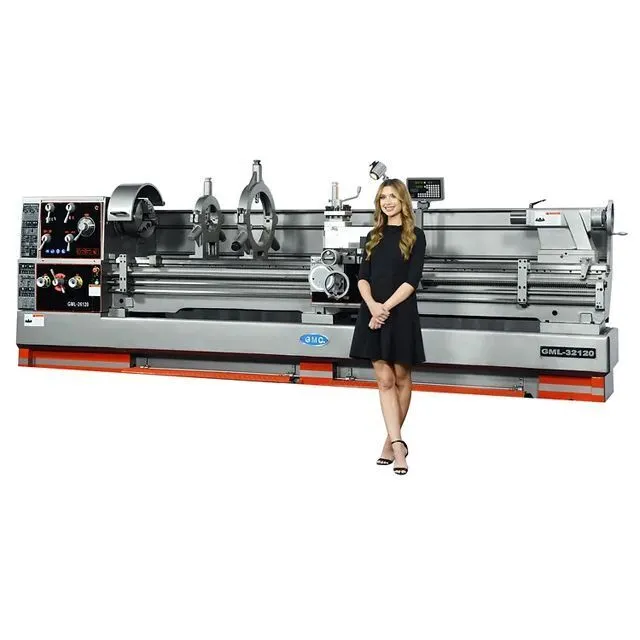

The GML-26120 26x120 in. Heavy Duty Precision Gap Bed Lathe, new from GMC Machine Tools.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 26" | 660.4 mm |
| Distance Between Centers | 120" | 3,048 mm |
| Spindle Bore | 4.125" | 104.77 mm |
| Spindle Nose | D1-8 | D1-8 |
| Number Of Spindle Speeds | 16 steps | 16 steps |
| Range Of Speeds | 25-1,600 rpm | 25-1,600 rpm |
| Number of Inch Threads | 80-7/16 TPI, 54 kinds | 80-7/16 TPI, 54 kinds |
| Motor | 15 hp | 11.2 kW |
| Phase | 3 | 3 |
| Voltage | 220V | 220V |
| Dimensions | 187 x 46 x 72 in. | 187 x 46 x 72 in. |
| Weight | 9,850 lbs | 9,850 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS:
ALORIS type QC tool post set # 3900-5160, 6 pcs …................... $1,850.00
15” large steady rest with roller jaws …………………………….. $1,850.00
Live Center # 3900-5005…………………………………………. $195.00
Extra 7-1/2” steady rest with roller jaws …………………………. $995.00
