Yang ML-300

Yang ML 300 For Sale.

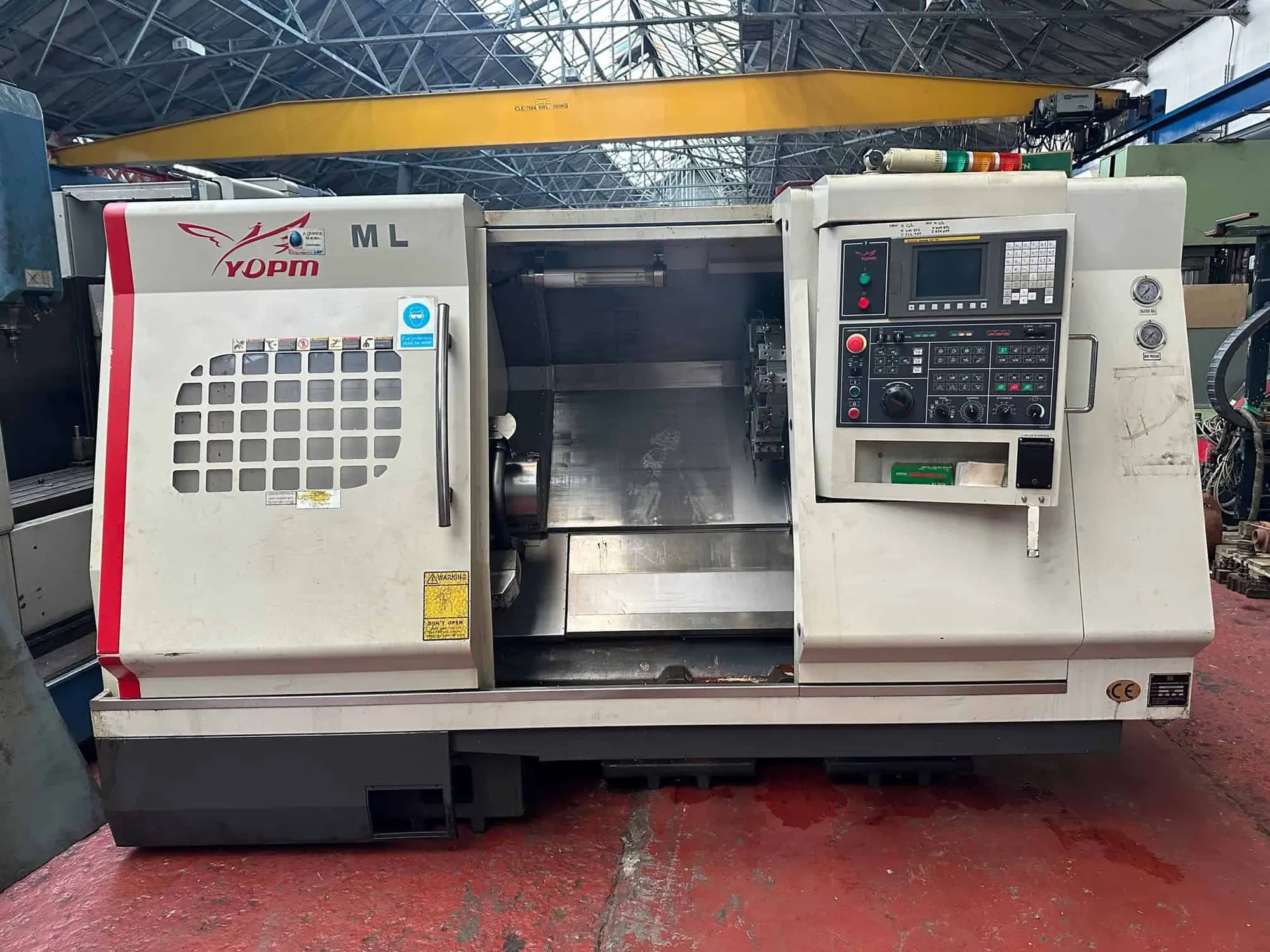

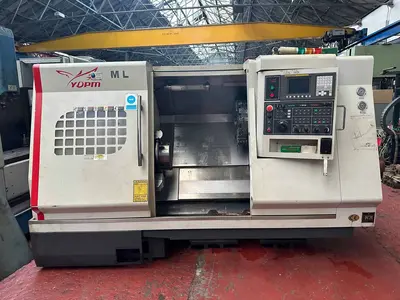

The Yang ML-300 is a robust horizontal CNC lathe offering exceptional turning capacity, accuracy, and versatility. Manufactured in 2008, this machine is ready for demanding workshop environments—and perfect for precision metalwork.
Performance & Applications
This machine is engineered to deliver smooth, high-quality machining for both heavy and delicate parts. With its combination of generous swing, versatile tooling, and precise FANUC control, the ML-300 handles a variety of tasks—from automotive shafts to aerospace components—with ease and repeatability.
Why It Stands Out
Heavy-Duty Build: Large swing and robust construction for longevity and sustained performance.
Flexible Tooling & Support: The 12-station turret, tailstock, and probing systems offer adaptability for complex setups.
Efficient Workflow: Automated chip and coolant systems provide uninterrupted machining.
Controllable Footprint: Compact layout relative to its capacity makes it well-suited for space-conscious workshops.
The Yang ML-300 CNC Lathe is a powerful, versatile, and precision-driven turning centre, tailor-made for industrial-scale or high-precision production environments. Whether you’re tackling complex geometries or high-volume runs, this machine delivers reliability, capacity, and efficiency all in one package. For more information about the machine you can enquire above, or Contact Us.

New 2008
Swing over bed – 600 (Ø 23.62)
Diameter × length – Ø 300 × 600 (Ø 11.81 × 23.62)
Max. diameter – Ø 380 (Ø 14.96)
Max. travel range of Z/X axis – 600 / 240 (23.62 / 9.44);
Z-axis: FANUC 2.8 kW (4 HP) /3000 rpm;
X-axis: FANUC 2.8 kW (4 HP) /3000 rpm
Diameter of spindle bore/Draw bar bore –
STD: Ø 77 / Ø 52 (Ø 3.03 / Ø 2.04); OPT: Ø 86 / Ø 77 (Ø 3.38 / Ø 3.03)
Spindle speed –
STD: 8” chuck 3500 rpm; OPT: 8” chuck 4500 rpm, 10” chuck 3500 rpm
Chuck diameter – STD: Ø 8” ; OPT: Ø 10”
Hydraulic Tailstock – travel 465 (18.3) MT. No.4

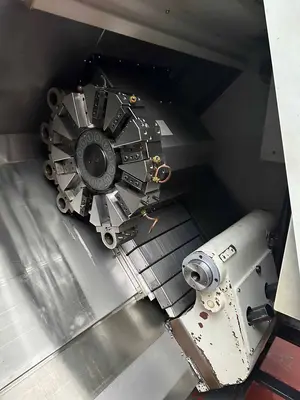

12 station turret
Drop down tool probe
Coolant and Chip conveyor
Power requirement – 208-220 volts / 100 Amps / 3 Phases / 60 Cycles
Floor area (L × W × H) – 4080 ×1675 × 1842 (160.62 × 65.94 × 72.51)
Gross weight (approx.) – 5200 kg (11440 Ibs)
