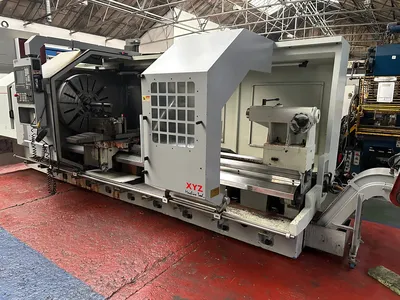

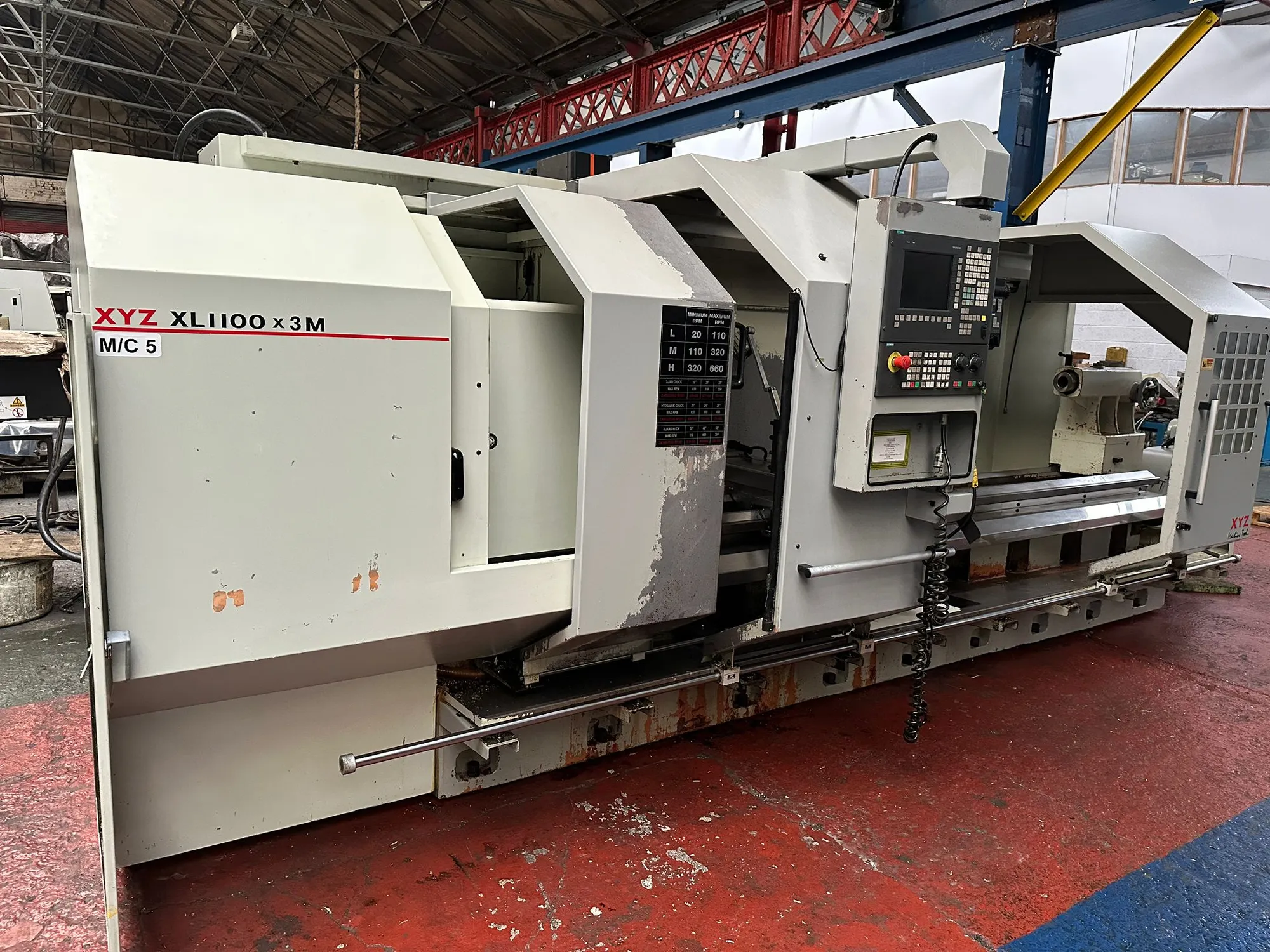

XYZ XL 1100 x 3000 CNC Lathe — Heavy-Duty Precision Turning Machine
Built for demanding industrial turning applications, the XYZ XL 1100 x 3000 CNC Lathe combines robust construction with reliable CNC control to deliver powerful performance across a wide range of machining tasks.

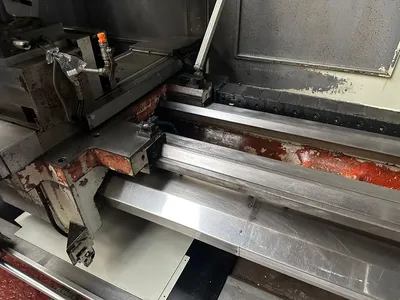

This large-capacity lathe features an 1100 mm swing over the bed and up to 3000 mm between centres, making it ideal for heavy-duty work on large components and long workpieces. Its solid ribbed cast-iron bed with wide vee and flat ways ensures excellent rigidity and stability under heavy cuts, maximising precision and surface finish consistency.
Key Features & Capabilities
Spacious Turning Envelope: 1,100 mm swing over bed and 3,000 mm centre distance provide generous capacity for large parts.
Powerful Spindle: High-performance spindle with up to 660 rpm and substantial torque for machining tough materials.
Siemens CNC Control: Reliable CNC system (typically Siemens) for easy programming, consistent cycles and automation of complex turning tasks.
Heavy Load Capacity: Designed to handle large, heavy components — capable of machining several tonnes when supported with steadies and tailstock.
Versatile Tooling: Supplied with a multi-station tool post and support for a wide range of tooling options and accessories.
Work-Ready Essentials: Includes coolant system, tailstock, fixed and travelling steadies to support long workpieces.
This machine is ideal for sectors such as aerospace, automotive, energy and general engineering, where large part turning, precision and repeatability are crucial. Its robust build and CNC automation make it suitable for both prototype work and continuous production environments.

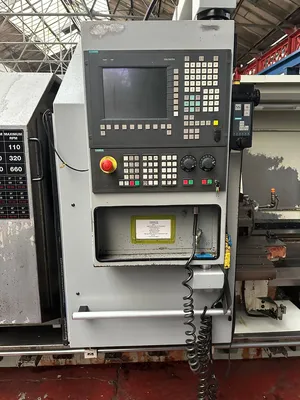

Siemens Control
Max’ Distance Between Centres 3000mm
Max’ Swing over Cross-slide 750 mm
Max Swing over Bed 1100mm
Spindle Bore 165 mm

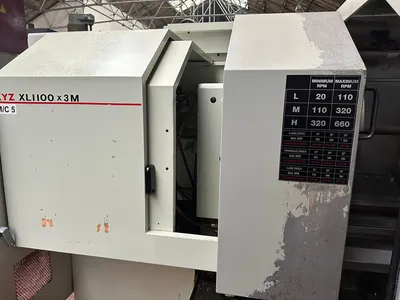

Spindle Speeds 20 – 660 rev/min 70 K.w
Spindle Motor 5.75Kw
Indexing 4 way Tool Post
Tailstock MT 6 / 7 T B C
Tailstock Dia’
Tailstock Travel
Machine YOM
Weight between centres unsupported 4 T supported is 7 T

Complete With:
Constant Surface Speed.
4 Jaw Chuck

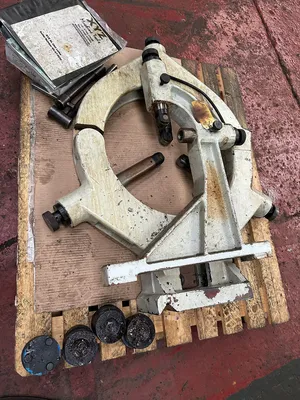

Fixed Steady and travelling steady
Coolant
