Europa CUP 5 Uni mill

Europa CUP 5 Uni mill
Blue Diamond Machine Tools LTD have this Europa CUP 5 Uni mill for sale and available for immediate delivery. Use the enquiry button above for more information on the Europa CUP 5 Uni mill or to arrange a viewing.

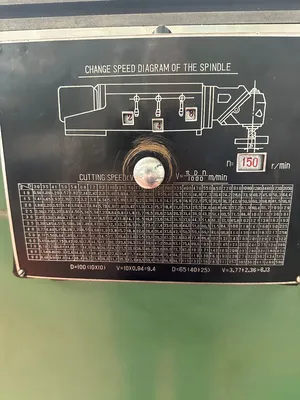

Spindle speeds 30 to 2050 (27)
Spindle taper ISO 50
Spindle travel 440 mm
Feeds 10 to 1000 mm/min (X & Y), 5 to 500 mm/min (Z)
Rapid traverse 2800 mm/min (X & Y), 1400 mm/min (Z)
Table size 1635 × 460 mm
Table travel X 1300 mm
Table travel Y 650 mm
Table travel Z 440 mm
Swivel head ±45°
Max table load 1800 kg
Graduations metric
Power locking Manual locking, central lubrication
Weight Approx. 3600 kg
Dimensions 2010 × 2621 × 1950 mm
