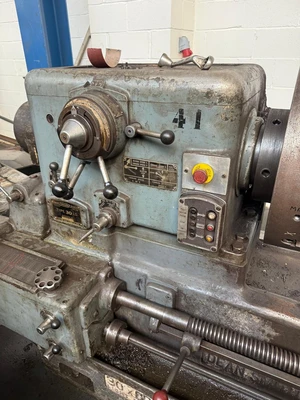

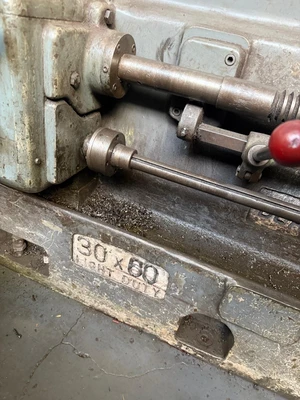

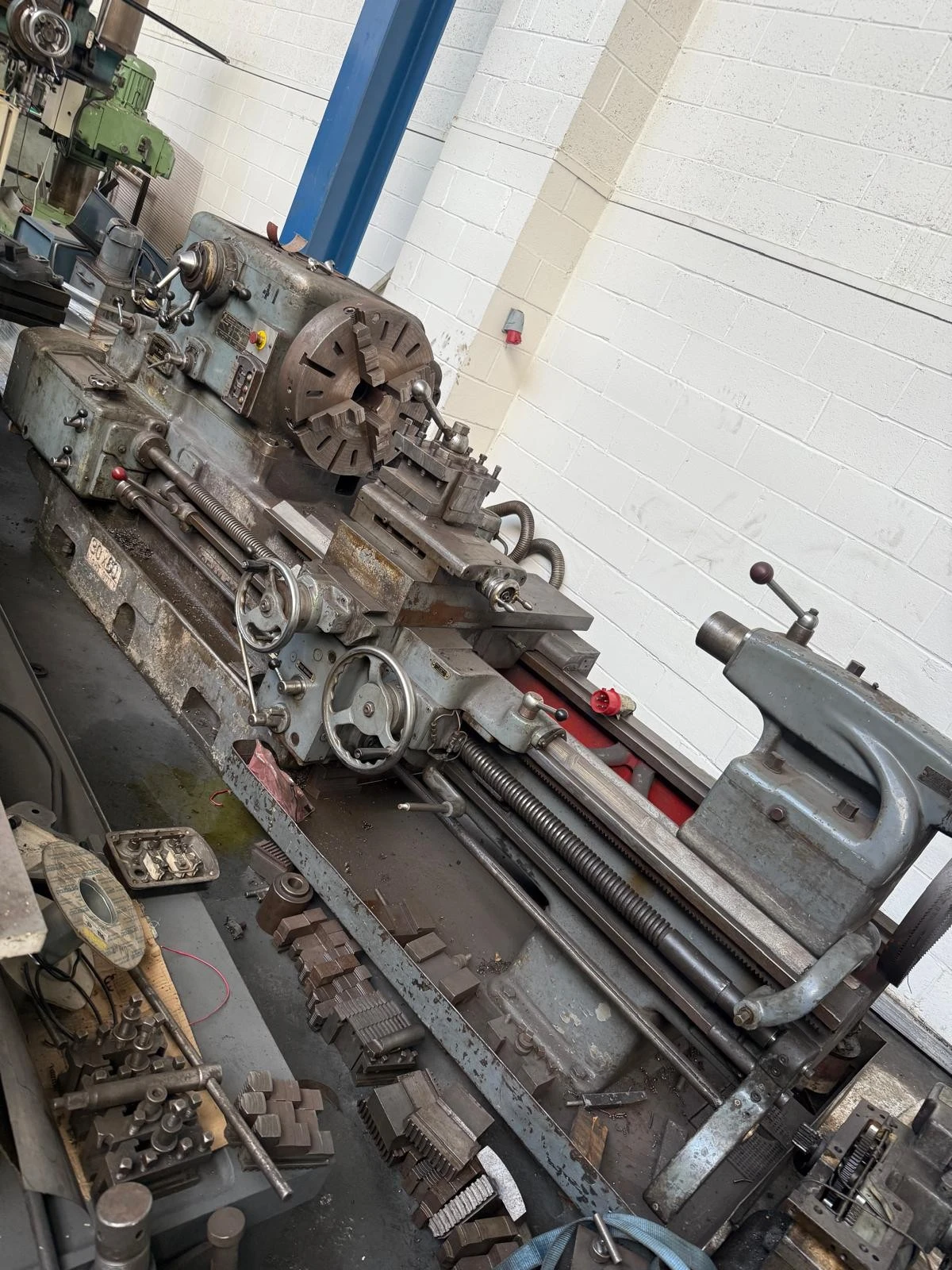

DSG T30 LD X 60

DSG T30 LD × 60 Centre Lathe
The DSG T30 LD × 60 is a robust and versatile manual centre lathe built for precision metalworking, engineering workshops, fabrication shops, and industrial environments where reliable performance matters. Manufactured by Dean, Smith & Grace (DSG) — a name renowned for quality and heavy-duty machine tools — this lathe combines classic mechanical design with practical capability for a wide range of turning operations.
Key Specifications & Features
Substantial Swing Capacities – With a 33″ swing over the bed and 21½″ over the saddle, this lathe accommodates large workpieces and robust turning tasks.
Long Working Distance – A maximum 60″ distance between centres provides ample capacity for turning lengthy shafts, bars, and components.
Powerful Spindle – The 4″ spindle bore supports larger bar work and through-bar turning; spindle speeds ranging from approx. 5.3 to 420 rpm deliver versatility across roughing and finishing cuts.

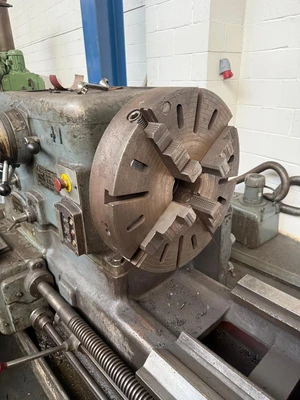

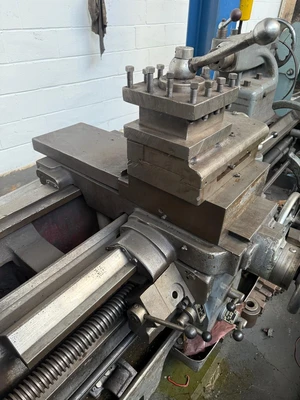

Practical Tooling Setup – Equipped with a 4-way toolpost for secure, multi-orientation cutting tooling, and supplied with a 22″ diameter 4-jaw chuck for flexible workholding of irregular or precision parts.
Integrated Coolant System – On-machine coolant supply enhances machining quality and extends tooling life during extended turning operations.
Safety & Protection – Includes a chuck guard to help protect operators during use.
Built for Durability & Precision
As a manually controlled lathe derived from DSG’s well-respected series of toolroom machines, the T30 LD × 60 offers a combination of robust construction, reliable mechanics, and ease of use. Whether you’re producing one-off components, setting up jig and fixture turning, or doing batch work, this lathe delivers the strength and flexibility needed in demanding workshop environments.
Why Choose the DSG T30 LD × 60?
Ideal for heavy turning, large diameter parts, and long components.
Strong, durable build with a legacy of reliability from DSG’s traditional machine tool design.
Versatile spindle speed range and comprehensive tooling setup suits a wide range of tasks.
A practical choice for machinists, fabricators, and engineering workshops seeking proven manual lathe performance.

Swing over bed 33”
Swing over saddle 21 1/2”
Max distance between centres 60”
Spindle 4”
Spindle speeds 5.3 – 420 rpm
Screw-Cutting
4-way Toolpost
22” dia 4 Jaw Chuck
Coolant
Chuck guard
