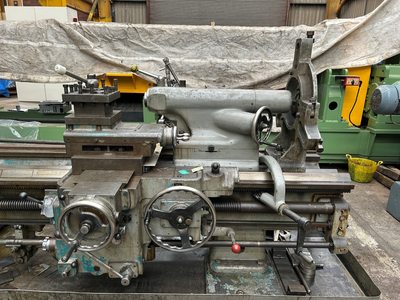

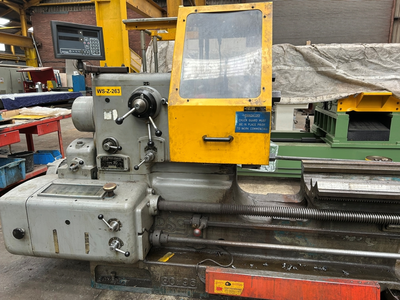

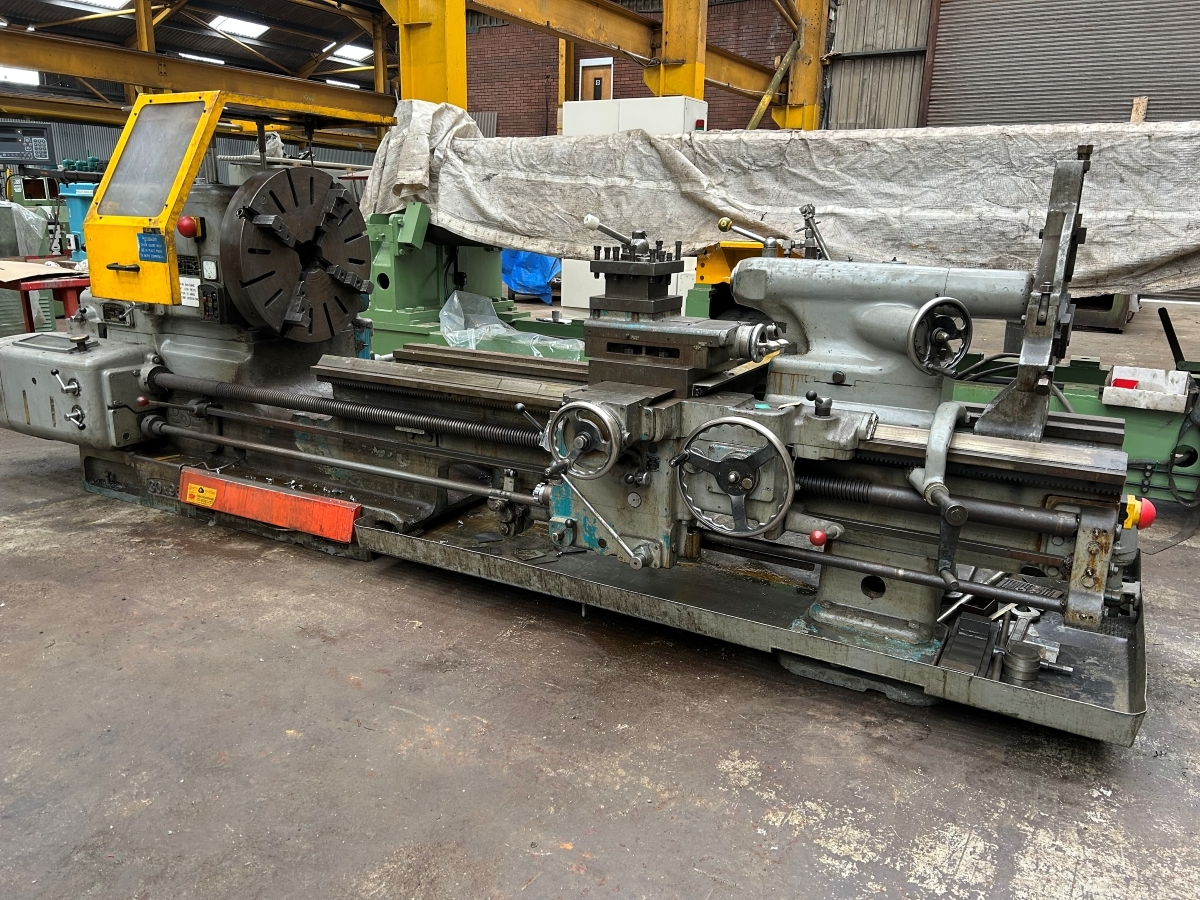

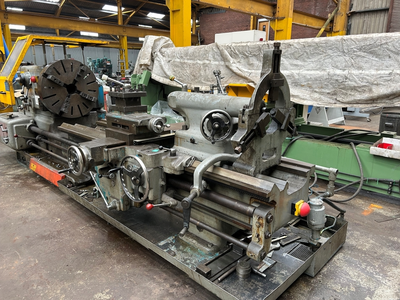

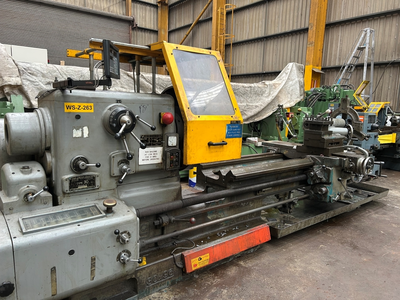

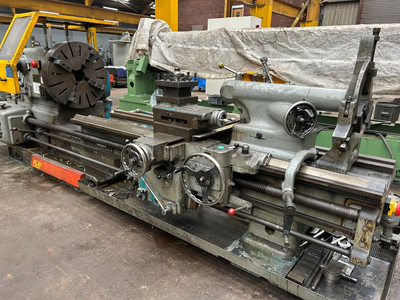

Dean Smith & Grace Type 30 × 96 Gap Bed Lathe
Overview
This Dean Smith & Grace Type 30 × 96 gap bed lathe—Serial No. 34108-6-62—is a heavy-duty, precision-engineered machining powerhouse, ideal for demanding industrial applications. With robust construction and advanced features, it’s built to deliver consistent performance across a wide range of turning operations.
Why This Lathe Stands Out
Exceptional Capacity & Reach
With a swing over bed of 840 mm and an impressive distance between centres of 2,438 mm, this lathe is well-suited to heavy-duty components and large-scale turning tasks.
Precise Control & Flexibility
A spindle speed range beginning at a low 5.3 rpm offers excellent control for finishing or precision work, while the top speed of 420 rpm ensures efficient material removal. The fine sliding and surfacing feeds allow for exceptional control over surface finishes, and the broad screw-cutting range (1–56 TPI) supports diverse threading jobs.
Enhanced Productivity & Safety
Equipped with a 2-axis DRO, workpieces can be monitored with digital precision, improving accuracy and workflow. The interlocked sliding chuck guard and spindle brake enhance operator safety, while the coolant system and integrated light ensure improved visibility and thermal control during machining.
Sturdy Build & Reliable Performance
Originating from skilled British engineering, the Type 30 is built for resilience—with a solid foundation and a 25 HP motor to tackle tough turning operations without compromise.

Dean Smith & Grace Type 30 x 96 Gap Bed Lathe
Swing Over Bed:                                              840mm
Swing Over Saddle:                                         530mm
Swing in Gap:                                                  1330mm
Maximum Distance Between Centres:           2438mm
Spindle Speeds:                                               5.3 – 420rpm
Spindle Bore:                                                   112mm
Feeds, Sliding:                                     0.002 – 0.1235” Per Rev
Surfacing:                                              0.001 – 0.06175” Per Rev
Screw Cutting:                                     1 – 56 TPI

Motor:             25HP
Electrics:         415v, 3ph, 50 Cycles

Complete With:

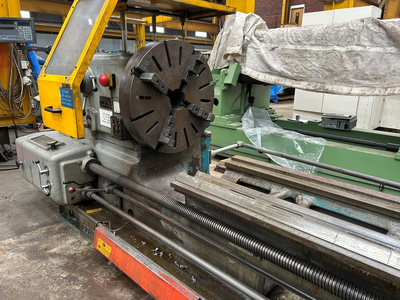

760mm 4 Jaw Chuck
300mm 3 Point Fixed Steady

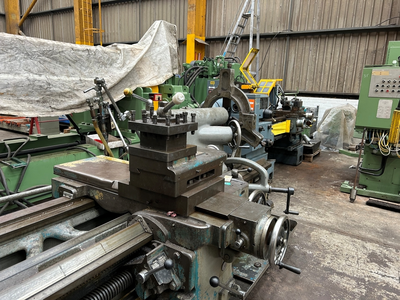

4 Way Tool Post
2 Axis Newall DRO
Interlocked Sliding Chuck Guard
Kick Interlock Spindle Brake
Coolant, Lovo Light

Approximate Dimensions:      5400 x 2150 x 1800mm
Approximate Weight:             6000kg
