Dean Smith & Grace 1709 x 60″

Dean Smith And Grace Lathe – Model 1709 × 60″ Gap Bed Centre Lathe
The Dean Smith & Grace 1709 x 60 is a heavy-duty industrial lathe, designed for precision turning in engineering workshops and metal fabrication shops. Renowned for its durability and smooth operation, this lathe is ideal for both high-volume production and detailed craftsmanship.
Key Specifications
Swing over bed: 17 inches
Distance between centers: 60 inches
Spindle bore diameter: 87mm
Gearbox: Variable speed, easy operation
Features & Benefits
Precision-engineered for long-term reliability
Robust construction minimizes vibration for accurate turning
Easy-to-use controls suitable for experienced machinists and workshop teams
Compatible with a wide range of tooling for versatile applications
Condition
This Dean Smith & Grace lathe has been fully serviced and tested. Bearings, gears, and key moving parts have been inspected and replaced where necessary to ensure smooth operation. It is in excellent working order, ready to be installed and used immediately in your workshop.
Delivery & Support
We offer nationwide delivery and can assist with loading and transport. Our team is available for advice and guidance to ensure the lathe is safely set up and ready for operation.
Why Choose This Lathe?
Investing in a Dean Smith & Grace 1709 x 60 means acquiring a machine with a reputation for reliability, precision, and longevity. Perfect for engineers, fabricators, and hobbyists who demand a high-quality lathe with proven performance.
For more information on this Dean Smith and Grace Lathe, or to make an enquiry you can use the button above or click here to contact us.

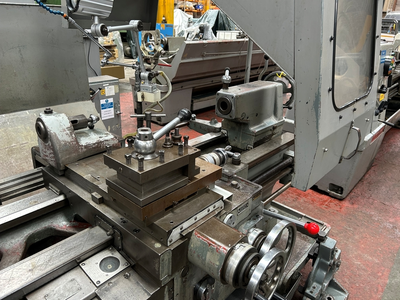

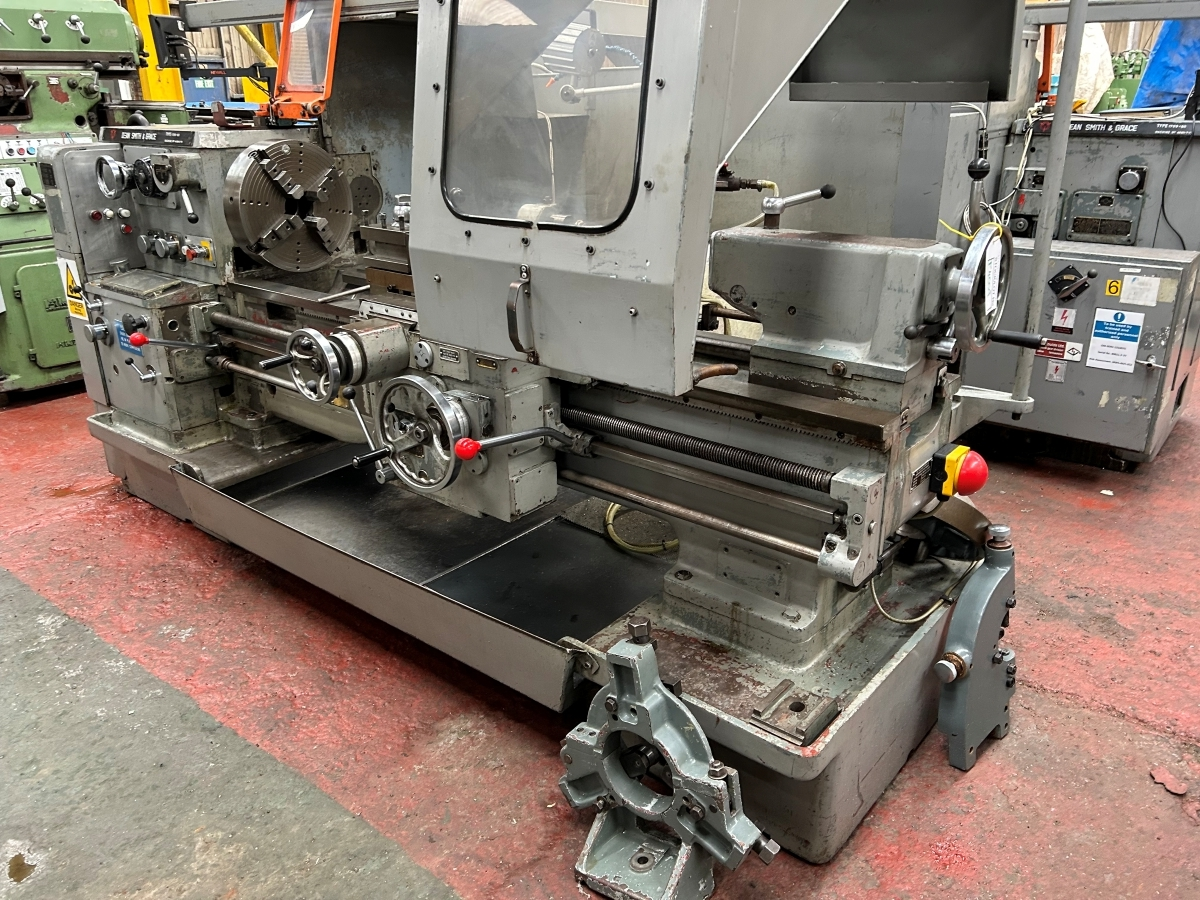

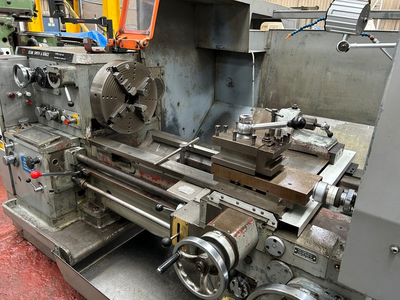

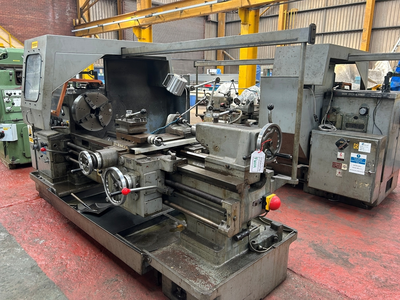

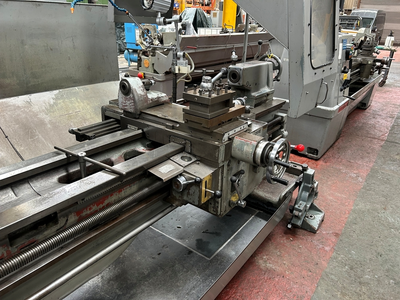

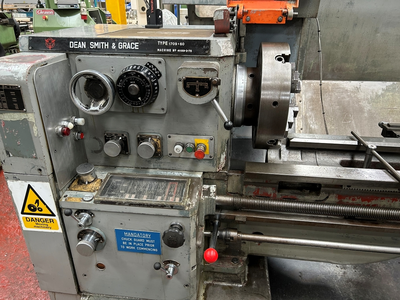

Dean Smith & Grace 1709 x 60″ Gap Bed Centre Lathe
Type:                    1709

Capacities:
Swing Over Bed:                                 430mm
Swing Over Saddle:                                      230mm
Swing in Gap:                                              660mm
Maximum Distance Between Centres: 1524mm
Spindle Speeds:                                  31.5 – 1400rpm
Spindle Bore:                                               87mm
Feeds, Sliding:                                    0.05 – 0.2mm/rev
Surfacing:                                          0.025 – 0.1mm/rev
Screw Cutting
TPI:                                                    2 -56
MM Pitch:                                           0.5 – 14

Motor:                   10HP
Electrics:      415v, 3ph, 50 Cycles
Complete With:
4 Jaw Chuck
Taper Turning
2 Axis DRO
Fixed 3 Point Steady
Cross Slide Drill Attachment
4 Wat Tool Post
Sliding Guard, Chuck Guard, Rear Splash Guard

Approximate Dimensions:                  3300 x 1950 x 1800mm
Approximate Weight                          2500kg
