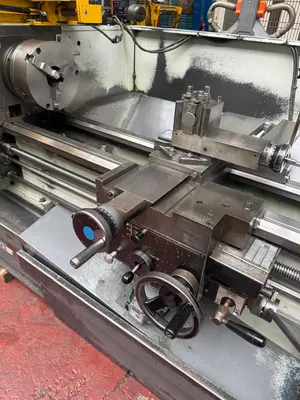

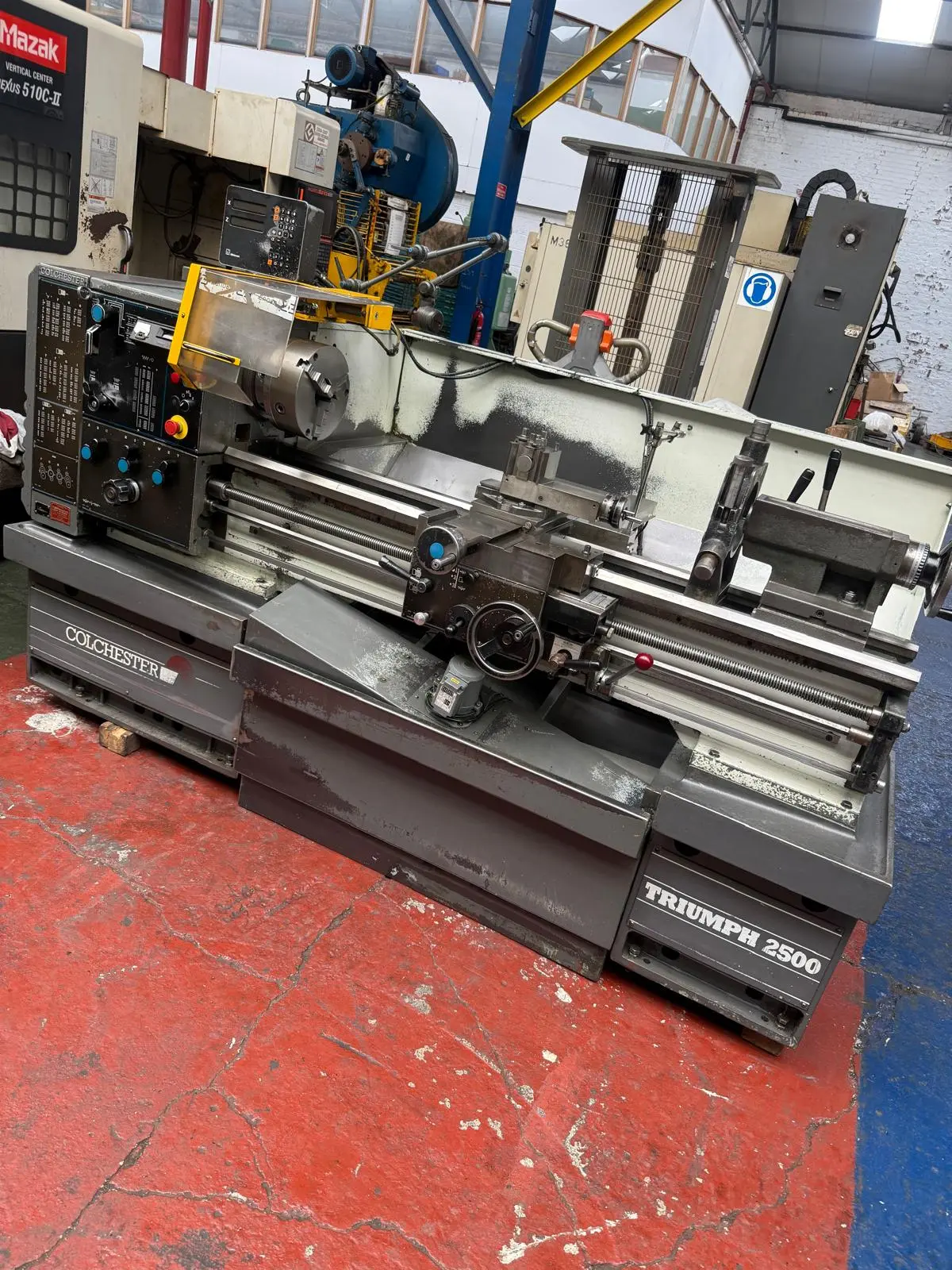

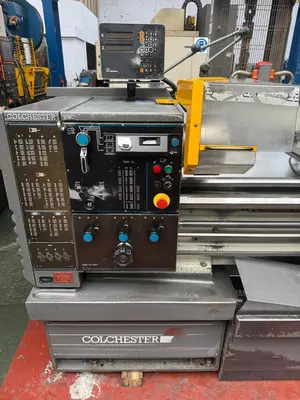

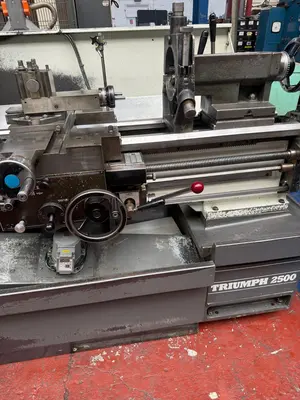

Colchester Triumph VS2500 50″

CAPACITY
Swing over bed
400mm
15.7″
Swing over cross slide
246mm
9.6″
Height of centres
195mm
7.7″
Swing in gap
585mm
23″
Gap width from faceplate
165mm
6.5″
Bed length
1270mm
50″
Distance between centres
1270mm
30″
SPINDLE
Spindle nose
D1 – 6 Camlock
D1 – 6 Camlock
Taper in spindle nose bush
No 4 MT
No 4 MT
Spindle bore
54mm
2.1″
Maximum spindle speed
2500 rpm
2500 rpm
Spindle speed ranges
     Low
14 – 300 rpm
14 – 300 rpm
     Medium
36 – 830 rpm
36 – 830 rpm
     High
109 – 2500 rpm
109 – 2500 rpm
Maximum spindle motor power
7.5kW
10 HP
Number of Imperial Pitches
56
56
Range of Imperial Pitches
2 – 56 TPI
2 – 56 TPI
Number of Diametral Pitches
20
20
Range of Diametral Pitches
8 – 56 DP
8 – 56 DP
Number of Metric Pitches
51
51
Range of Metric Pitches
0.2 – 14mm Pitch
0.2 – 14mm Pitch
Number of Module Pitches
20
20
Range of Module Pitches
0.2 – 3.5 MOD
0.2 – 3.5 MOD
TAILSTOCK
Tailstock quill taper
No 5 MT
No 5 MT
Tailstock quill travel
145mm
5.7″
