Dean Smith & Grace 1709 x 60″ Gap Bed

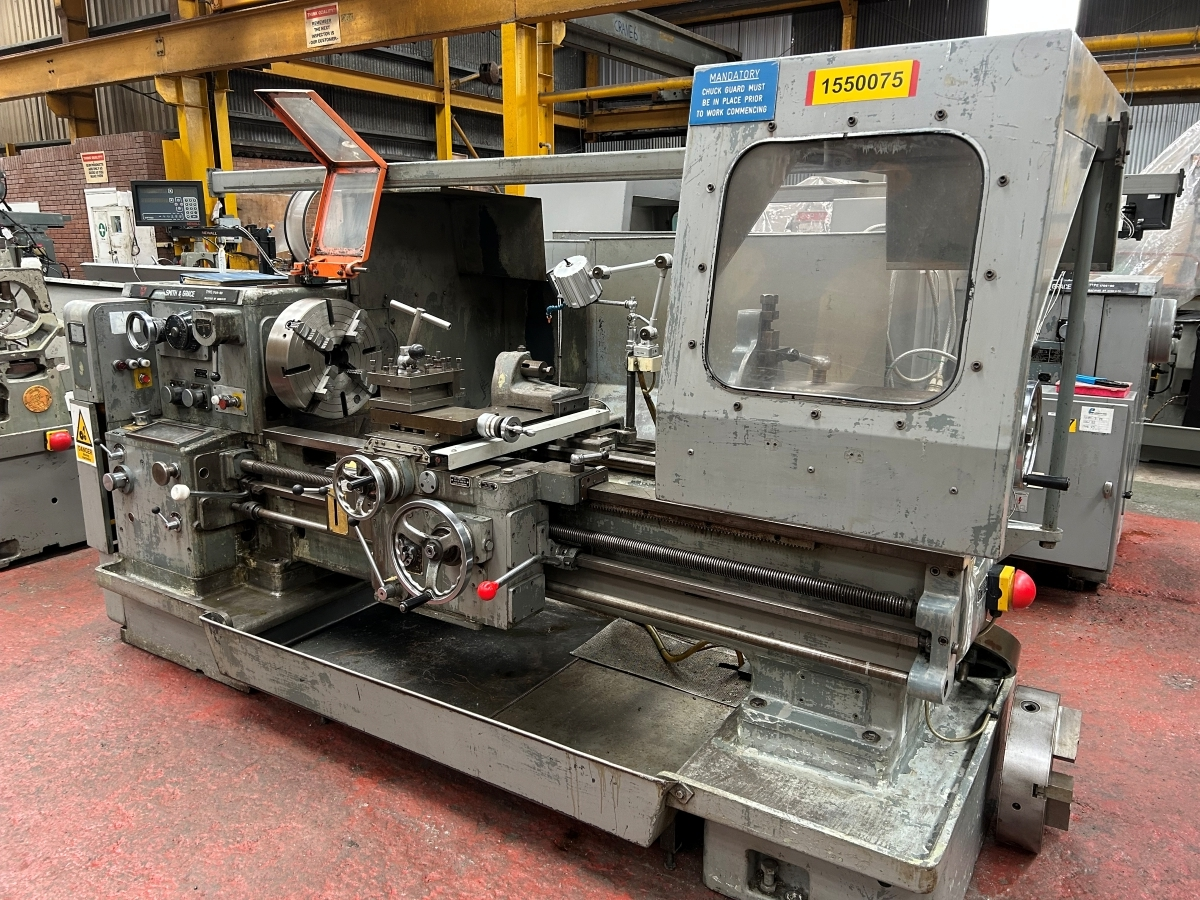

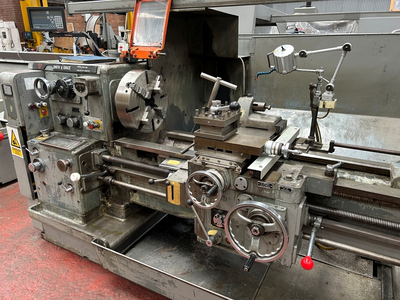

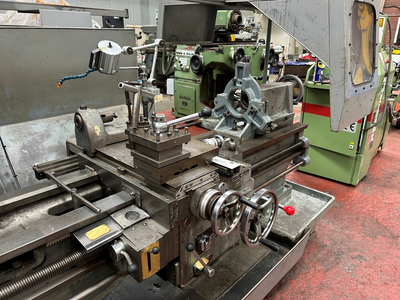

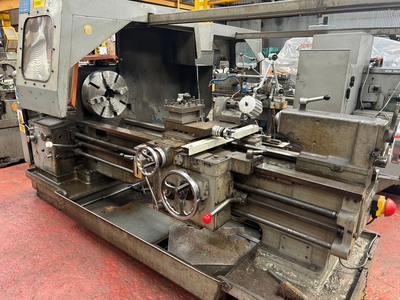

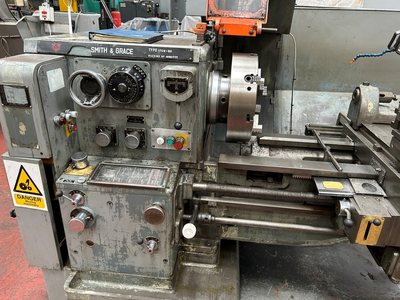

Dean Smith & Grace 1709 × 60″ Gap Bed Centre Lathe
Overview
This Dean Smith & Grace 1709 × 60″ Gap Bed Centre Lathe (Serial No. 40811-7-77) delivers rugged British engineering and precision. A versatile and durable machine, it’s well-suited to workshops and production environments needing both capacity and fine control.
Why This Lathe Stands Out
Gap Bed Versatility: With a generous 660 mm swing in the gap and 60″ between centres, it handles large or awkwardly shaped components with ease.
Balanced Power & Precision: A 10 HP motor paired with spindle speeds up to 1,400 rpm lets you efficiently rough and finely finish workpieces.
Superior Control: Precise feed rates as fine as 0.025 mm/rev ensure excellent surface finish and dimensional accuracy.
Comprehensive Threading Options: Flexible screw-cutting capabilities offer both imperial (TPI) and metric ranges to suit varied applications.
Built for Safety & Productivity: The 2-axis DRO improves workflow accuracy, while full guarding provides essential operator protection.
Heritage Build Quality: Dean Smith & Grace machines are renowned for robust construction and lasting craftsmanship.

The Dean Smith & Grace 1709 × 60″ Gap Bed Centre Lathe is available now at Blue Diamond Machine Tools. To arrange a viewing, request more details, or discuss refurbishment, please use the enquiry button above.

Type:                    1709

Capacities:
Swing Over Bed:                                 430mm
Swing Over Saddle:                                      230mm
Swing in Gap:                                              660mm
Maximum Distance Between Centres: 1524mm
Spindle Speeds:                                  31.5 – 1400rpm
Spindle Bore:                                               80mm
Feeds, Sliding:                                    0.05 – 0.2mm/rev
Surfacing:                                          0.025 – 0.1mm/rev
Screw Cutting
TPI:                                                    2 – 56
MM Pitch:                                           0.5 – 14

Motor:                   10HP
Electrics       415v, 3ph, 50 Cycles
Complete With:
4 Jaw Chuck
Taper Turning
2 Axis DRO
Fixed 3 Point Steady
Cross Slide Drill Attachment

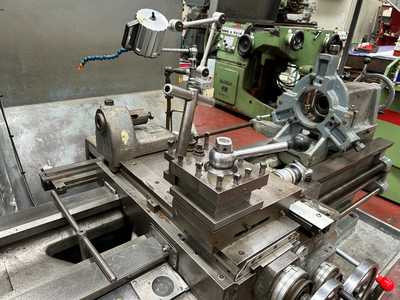

4 Wat Tool Post
Sliding Guard, Chuck Guard, Rear Splash Guard

Approximate Dimensions:                  3300 x 1950 x 1800mm
Approximate Weight                          2500kg
