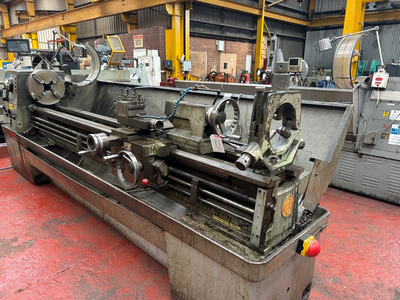

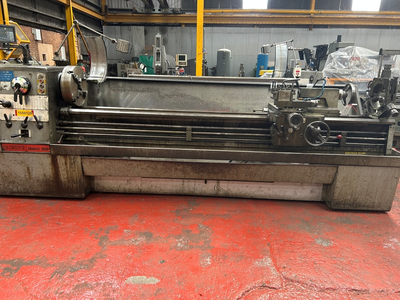

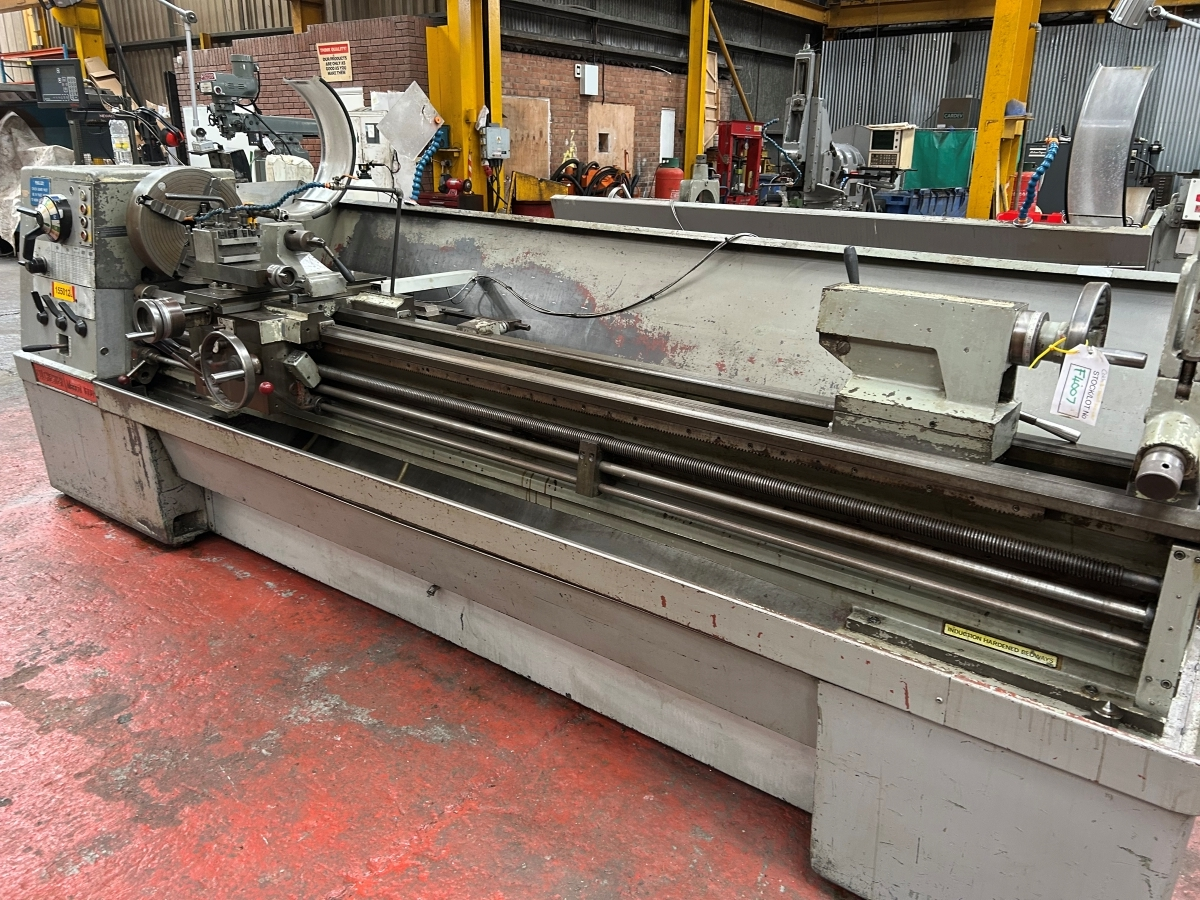

Colchester Mascot 1600 × 100″ Gap Bed Lathe
Overview
The Colchester Mascot 1600 × 100″ Gap Bed Lathe, Serial No. 7/0053/10131, is a robust and versatile centre lathe built for demanding industrial machining. Boasting long-range capacity and precision engineering, it meets the needs of heavy-duty workshops and precision toolrooms alike.
Standout Features & Benefits
Extra-Long Capacity & Gap Capability
With a massive 100″ between centres and a 711 mm swing-in-gap, this lathe handles oversized components, shaft work, and awkward shaping jobs with ease.
Wide Speed & Feed Range
The extensive speed span (20–1,600 rpm) and broad feed options let operators adjust performance from heavy roughing to fine finishing.
Rich Threading Versatility
Supports multiple threading standards—imperial (TPI), metric, module, and diametral pitch—for a wide range of industrial applications.
Operator Precision & Safety
Equipped with a 2-axis DRO for digital accuracy, plus guards and emergency stop features to keep operations safe without compromising usability.
Powerful & Durable
Powered by a 12.5 HP motor with solid 415 V, 3-phase electrics, built to withstand rigorous industrial environments.

Colchester Mascot 1600 x 100″ Gap Bed Lathe
Type:                    Mascot 1600

Capacities:
Swing Over Bed:                                          431mm
Swing Over Saddle:                                               266mm
Swing in Gap:                                                        711mm
Maximum distance Between Centres:           2540mm
Spindle Speeds:                                            20 – 1600rpm
Spindle Bore:                                                         74mm
Feeds, Sliding:                                              0.6 – 1mm/rev
Surfacing:                                                   0.3 – 0.5mm/rev
Screw Cutting:
TPI                                                              4 – 72
MOD                                                            8 – 60
Metric                                                          0.4 – 14
DP:                                                              0.3 – 3.5
Tailstock Taper                                           5MT

Motor:                             12.5HP
Electrics:               415v, 3ph, 50 Cycles

Complete With:

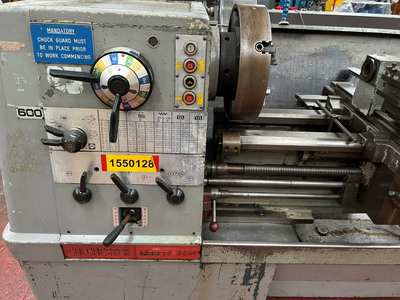

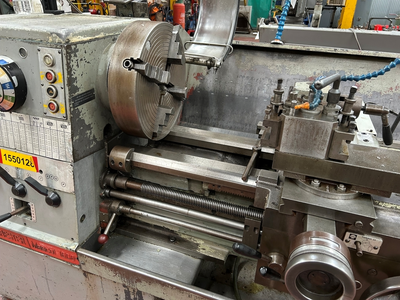

4 Jaw Chuck
Fixed 3 Point Steady
Taper Turning
2 Axis DRO

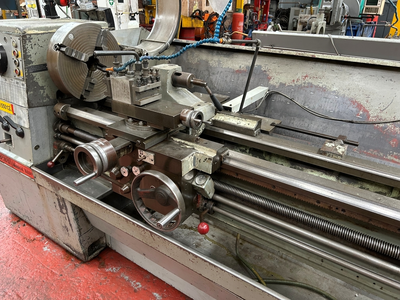

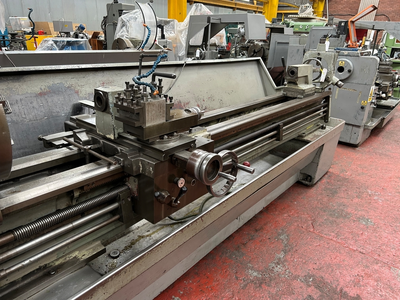

Quick Change Tool Post & Tool Holders
Chuck Guard & Rear Splash Guard, Emergency Stop

Approximate Dimensions:                  4000 x 1300 x 1500mm
Approximate Weight:                          2750kg
