DOOSAN Mynx 6500 Vertical Machining Center, used but high-performing. 50" x 26.4" x 24.6" travel; 12,000 RPM; 21 hp; 30-tool ATC; Fanuc 0i-MD control; 55" x 26.4" table handles 2,200 lbs; 3 axis; CAT 40 spindle for precision jobs.
| X-Axis | 50" | 1,270 mm |
| Y-Axis | 26.4" | 670.56 mm |
| Z-Axis | 24.6" | 624.84 mm |
| Power | 21 hp | 15.7 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 26.4" | 670.56 mm |
| Table-L | 55" | 1,397 mm |
| # Axis | 3 | 3 |

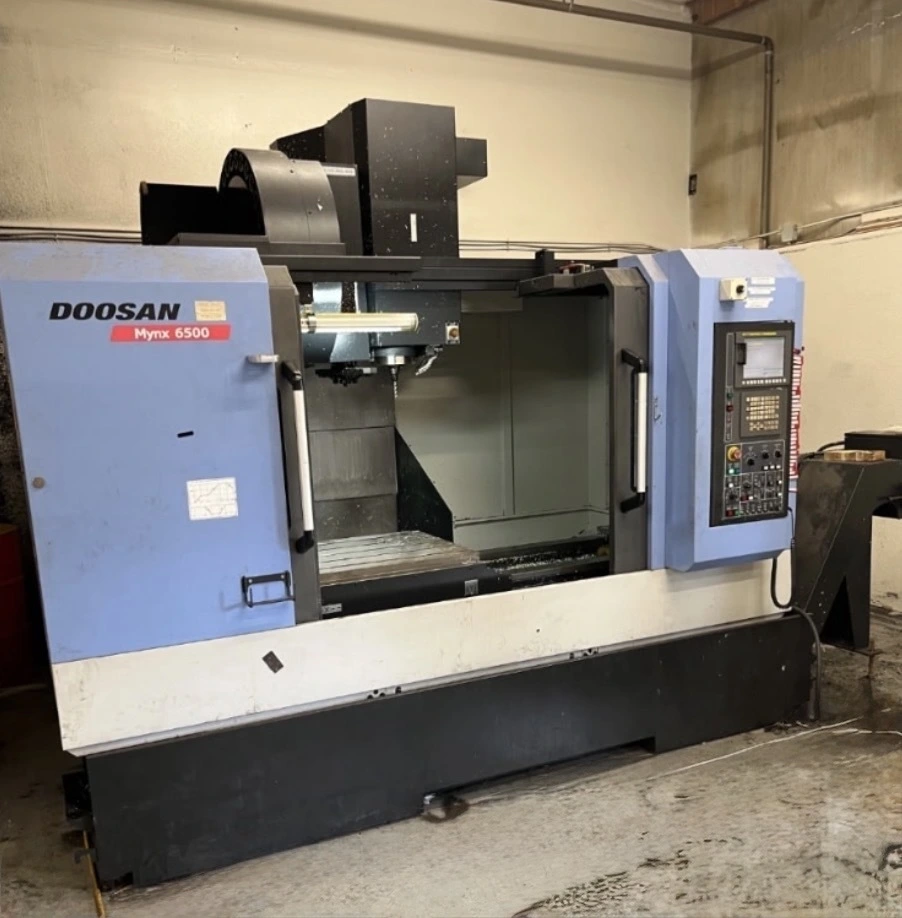

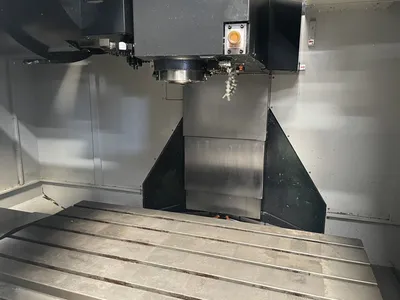

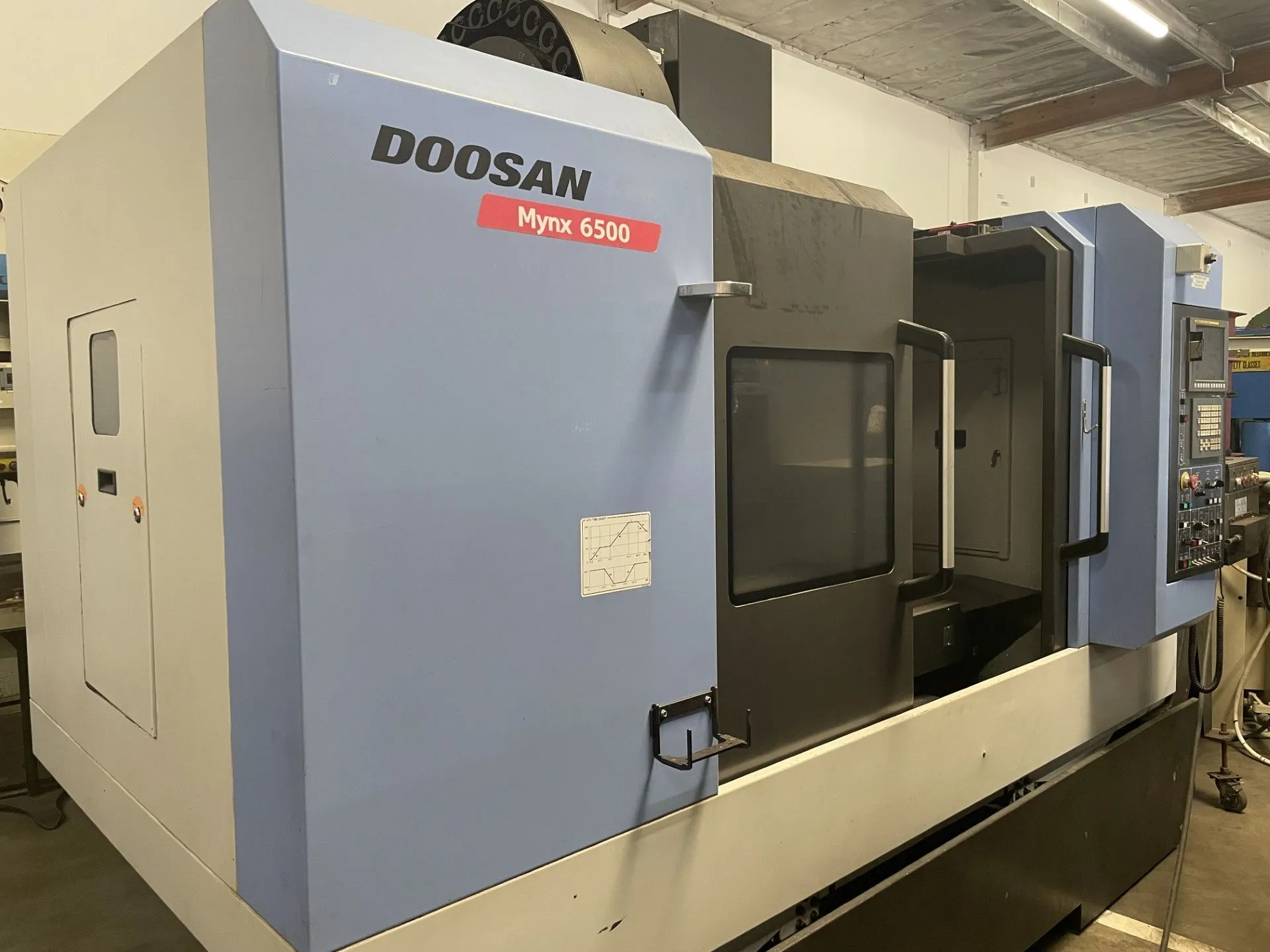

2011 DOOSAN Mynx 6500 Vertical Machining Center #8219
SPECIFICATIONS:
CNC Control: yes
Control Type: Fanuc i Series
# Axis: 3
Table Size: 55 x 26.4
Table Capacity: 2,200 pounds
X-Axis Travel: 50"
Y-Axis Travel: 26.4"
Z-Axis Travel: 24.6"
Spindle Speed: 8,000
Spindle Taper: CAT 40
Main Motor: 21 HP
Tool Changer Capacity: 30
Coolant Thru Spindle: yes
Machine Dimensions: 132" x 97" x 108"
Machine Weight: 15,500 pounds
EQUIPPED WITH:
Big-Plus Spindle Taper
Chip Conveyor
(2) Chip Augers
30 Station Side Mounted Tool Changer
Doosan Conversational Machining Software
Embedded Ethernet
Remote Pulse Generator
400 Pairs Tool Offsets
Spindle Chiller
Box Ways
6199 Cutting Hours
