24”/35” MAZAK/HERCULES/AJAX "MAZAK 24" GAP-TYPE ENGINE LATHE - Taper Attachment - Inch/Metric Threading - 3 & 4 Jaw Chucks - 24 1/2 " Swing Over Bed - 35” Swing Thru Gap - 14 1/2" Swing Over Cross Slide - 2” Hole Thru Spindle
| Swing | 24" | 609.6 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 2" | 50.8 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,540 RPM | 1,540 RPM |
| Swing Over Cross Slide | 14.5" | 368.3 mm |
| Weight | 13599 LBS | 13599 LBS |

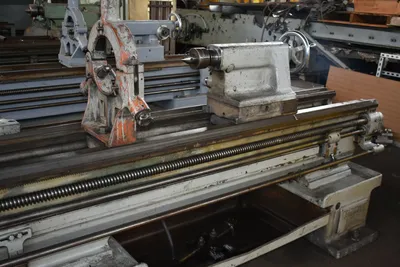

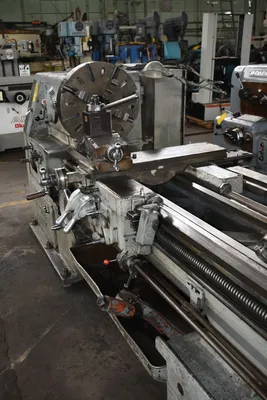

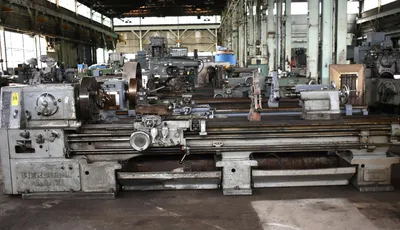

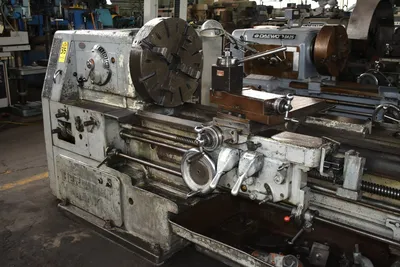

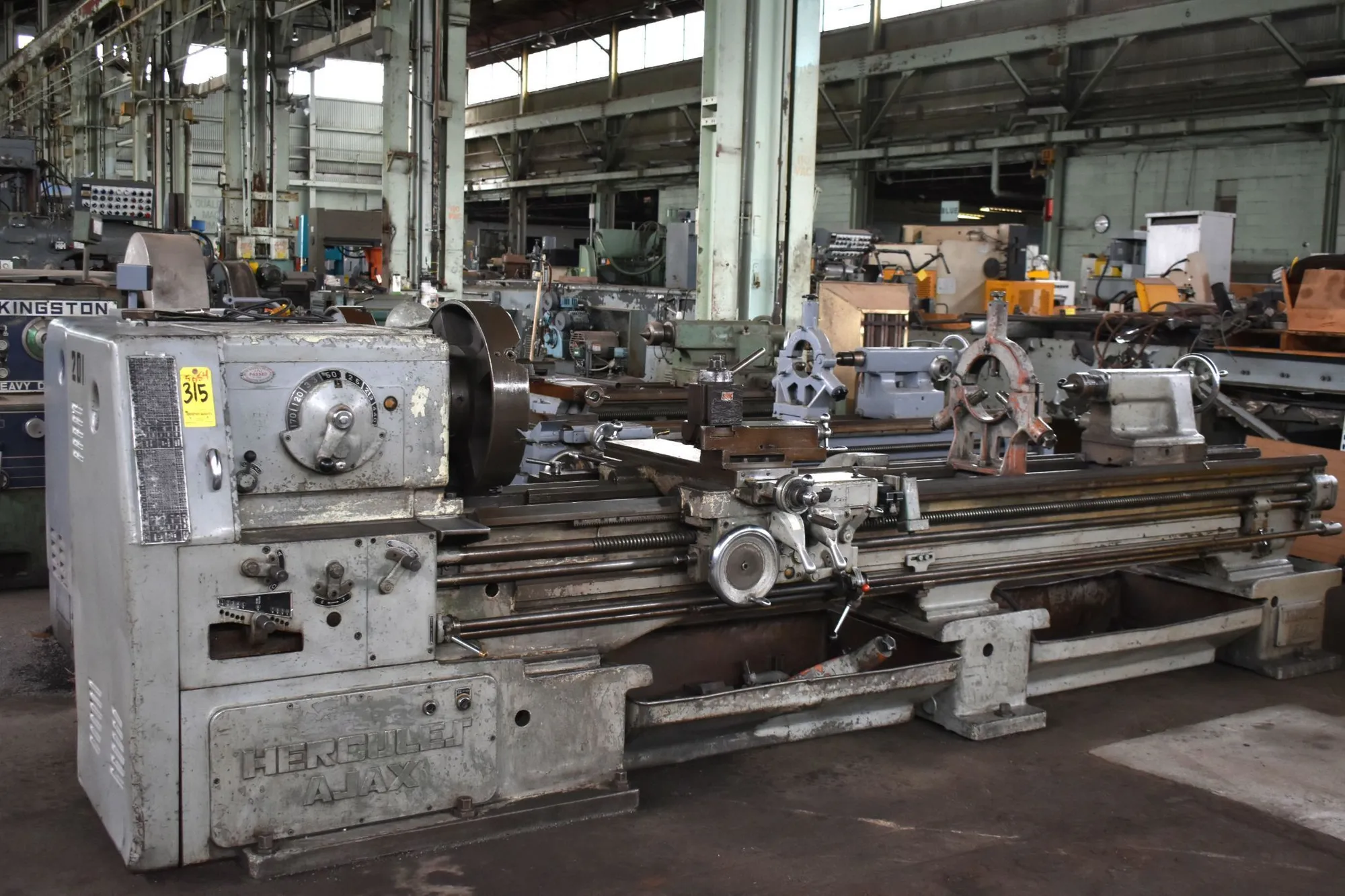

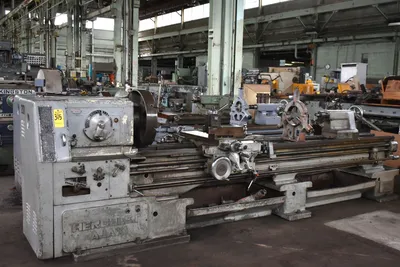

24/35” x 120” MAZAK/HERCULES/AJAX GAP-TYPE ENGINE LATHE
Serial No 8619, Model MAZAK 24,
EQUIPPED WITH:
Taper Attachment
Inch-Metric Threading
Removable Gap
Power Rapid Traverse

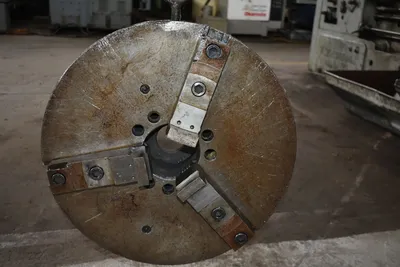

21" 3-Jaw Chuck w/Jaws
22" 4-Jaw Chuck w/Jaws

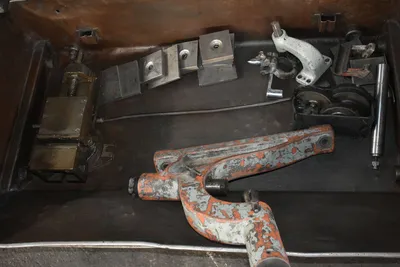

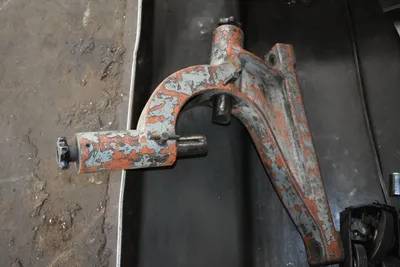

Steady Rest - Follow Rest
Aloris Tool Post
CATALOG SPECIFICATIONS:
Hole Thru Spindle 2”
Swing Over Bed Ways 24”
Swing Thru Gap 35”
Distance Between Centers 120”
Swing Over Cross-Slide 14.5”
Spindle Speeds, Range 25 to 1540 RPM
Thread Range, Inch 2 to 128 TPI
Diametral Threads, Range 8 to 64 DP
Thread Range, Metric .25 to 16 TPMM
Module Threads, Range .5 to 4
Motor Horsepower HP
Overall Dimensions, L x W 204” x 60”
Overall Height 65”
Weight Approximately 13500 LBS
F.O.B. OUR WAREHOUSE
