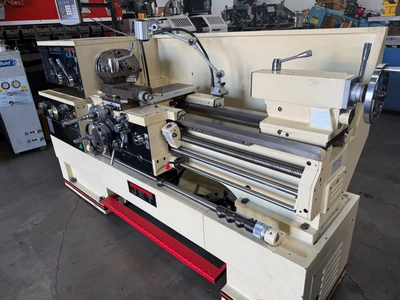

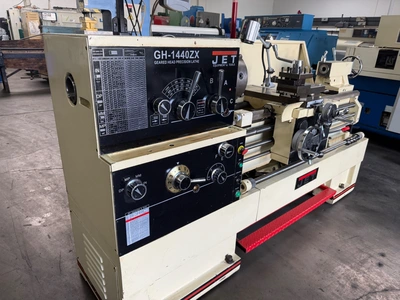

JET GH-1440ZX Engine Lathe, built for precision. Features a 14" swing over bed, 40" between centers, 3-1/8" spindle bore, and 12 speed settings from 42 to 1,800 RPM. Equipped with steady rest, tailstock, and 2-axis digital readout for versatile functionality.
| Swing | 18" | 457.2 mm |
| Centers | 44" | 1,117.6 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 7.625" | 193.67 mm |
| Control | CNC | CNC |
| Weight | 5187 | 5187 |

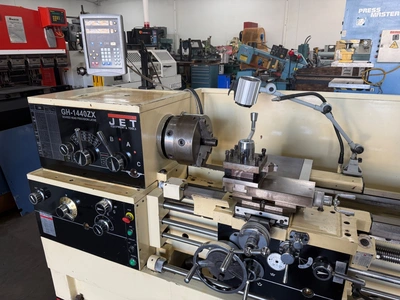

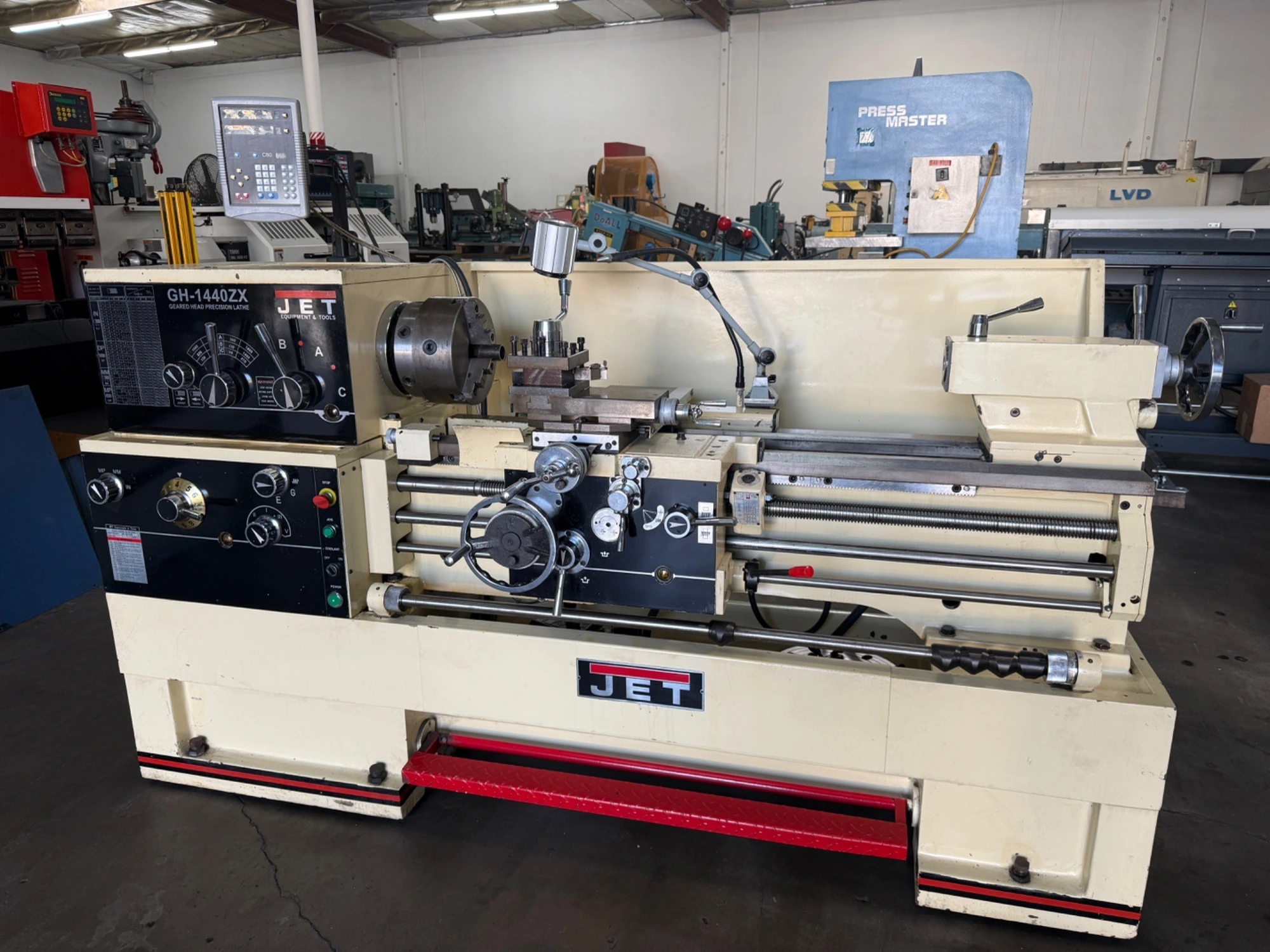

JET GH-1440ZX Engine Lathe #8217 #1
SPECIFCATIONS:
Swing Over Bed: 14"
Swing Over Cross Slide: 7-5/8"
Swing Through Gap: 23-5/8"
Distance Between Centers: 40"
Spindle Bore: 3-1/8"

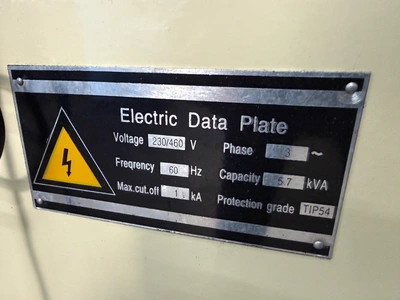

Motor: 7.5 HP, 230/460V, 3-Phase
Spindle Speeds: 12 speeds, ranging from 42 to 1,800 RPM
Spindle Mount: D1-8 cam lock
Tailstock Taper: 4 MT
Tailstock Travel: 5"
Machine Weight: Approx. 5,187 lbs
Inch Threads: 61 options, 1-5/8 to 72 TPI
Metric Threads: 24 options, 0.5 to 20mm
Longitudinal Feeds (IPR): 0.002" - 0.067"
EQUIPPED WITH:
Steady Rest
Tailstock

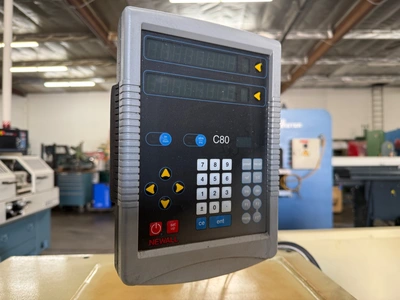

2-Axis Digital Readout
in/mm Threading
