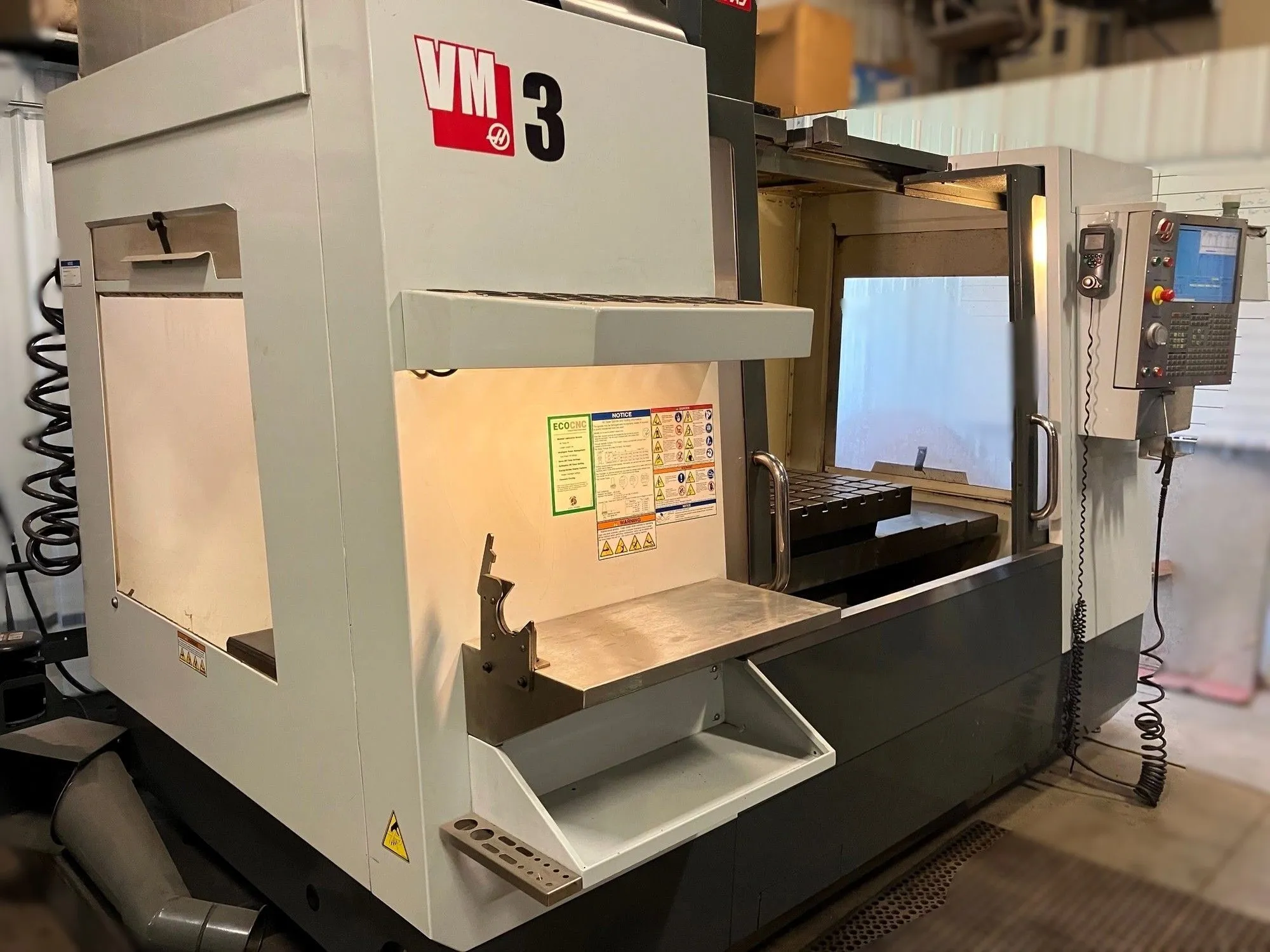

HAAS VM-3 CNC Vertical Machining Center, New in 2010.
| X-Axis | 40" | 1,016 mm |
| Y-Axis | 26" | 660.4 mm |
| Z-Axis | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 25" | 635 mm |
| Table-L | 54" | 1,371.6 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS CNC) | CNC (HAAS CNC) |
| Dimensions | 118" x 110" x 117" | 118" x 110" x 117" |
| Weight | 12,500lbs | 12,500lbs |
General Specifications:
X-Axis 40"
Y-Axis 26"
Z-Axis 25"
# Axis 4
Power 30 hp
# ATC 24
Table-W 25"
Table-L 54"
SPINDLE SPEED 12,000 RPM
TOOL MAGAZINE CAPACITY 24 ATC
CONTROL HAAS CNC
COOLANT THROUGH SPINDLE COOLANT PREPPED
RAPID RATE X/Y/Z-AXIS 710 IPM
TABLE SIZE 54" X 25"
MAX TABLE LOAD 4,000 LBS.
DIMENSIONS 118" X 110" X 117"
WEIGHT 12,500 LBS.
Machine manufactured 10/2010, Installed in 2011.
Probe.
High Pressure Thru-Spindle Coolant Prepped
