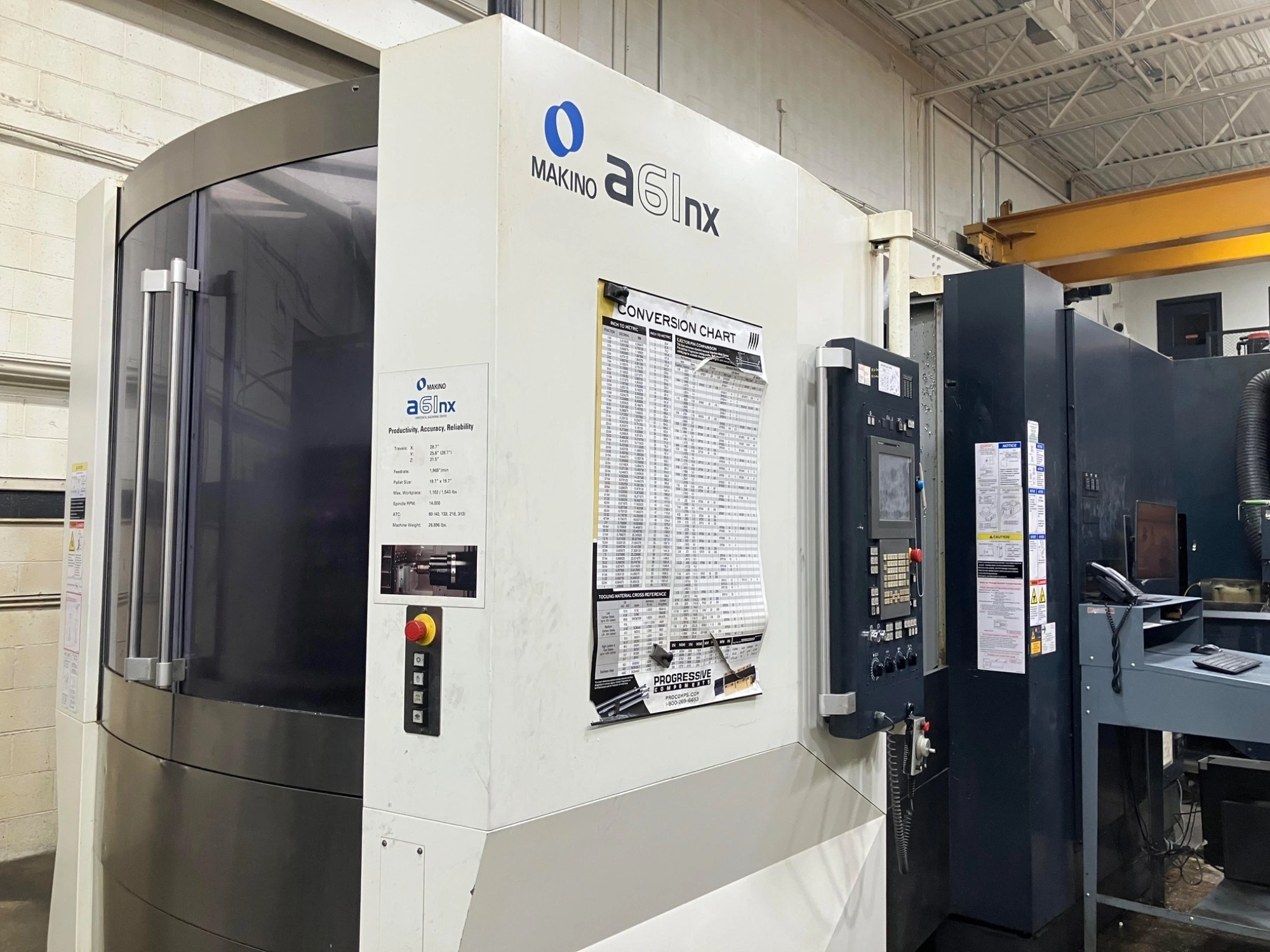

2013 Makino A61NX 4-Axis CNC Horizontal Machining Center. Equipped with FANUC 31i CNC, 2 pallets, 14,000 RPM spindle, and 134-tool changer. Includes PRO 5 control, high-pressure coolant, and more. Ideal for precision engineering projects.
| Pallet Size - L | 19.7" | 500.38 mm |
| Pallet Size - W | 19.7" | 500.38 mm |
| Number of Pallets | 2 | 2 |
| Pallet Weight Capacity | 1,100 lb | 499 kg |
| Pallet Surface to Spindle Center | 3.15" ~ 28.7" | 3.15" ~ 28.7" |
| Pallet Center To Spindle Gage Line | 3.9" ~ 31.8" | 3.9" ~ 31.8" |
| Workpiece Dimensions | 31.4" x 39.3" | 31.4" x 39.3" |
| X - AxisTravel | 28.7" | 728.98 mm |
| Y - Axis Travel | 25.6" | 650.24 mm |
| Z - Axis Travel | 31.5" | 800.1 mm |
| B - Axis Travel | .001 | .001 |
| Rapid Traverse Rate - X | 1,968 in/min. | 50 m/min. |
| Rapid Traverse Rate - Y | 1968 ipm | |
| Rapid Traverse Rate - Z | 1968 ipm | |
| Cutting Feed Rate | 1,968 in/sec. | 2,999.2 m/min. |
| Spindle Speed | 14,000 RPM | 14,000 RPM |
| Spindle Taper | HSK A63 | HSK A63 |
| Main Motor | 30 hp | 22.4 kW |
| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 3.76" / 6.7" | 3.76" / 6.7" |
| Tool Length | 20" | 508 mm |
| Tool Weight | 24 lb | 10.9 kg |
| Tool Change Time | 0.9 sec. | 0.9 sec. |
| Machine Weight | 26,400 lb | 11,974.9 kg |
| Control | CNC | CNC |
| Weight | 27000.00 | 27000.00 |
FANUC 31I CNC CONTROL WITH PRO 5
FULL 4TH AXIS N/C ROTARY TABLE
CHIP REMOVAL SYSTEM
PRO 5 CONTROL
BROKEN TOOL SENSOR BTS
PORTABLE HAND HELD MPG
RIGID TAPPING
GI CONTROL
AIR DRYER SYSTEM
1000PSI HIGH PRESSURE COOLANT CHIP BLASTER
CUSTOM MACRO/COMMON VARIABLE 600
HIGH SPEED SKIP FUNCTION
BLUM TOOL LENGTH LASER PROBE
RENISHAW SPINDLE PROBE
