72″ x .375″ x 50,000Lb Paxson Loop Slitting Line

Specifications:
Manufacturer: Paxson
Min. Width: 12”
Max Width: 72"
Weight Capacity: 50,000Lb
Min. Gauge: .050"
Max Gauge: .375"
Coil ID: 20" - 30"
Coil OD: 72"
Line Speed: 850 feet per minute
Direction: Right to Left
Line Includes:
Entry L-Type Coil Car
-Floor Standing Design
-Hydraulic Lift & Traverse
-Self Contained Hydraulics

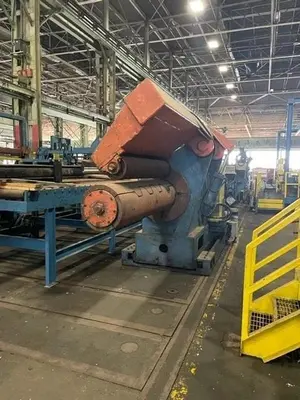

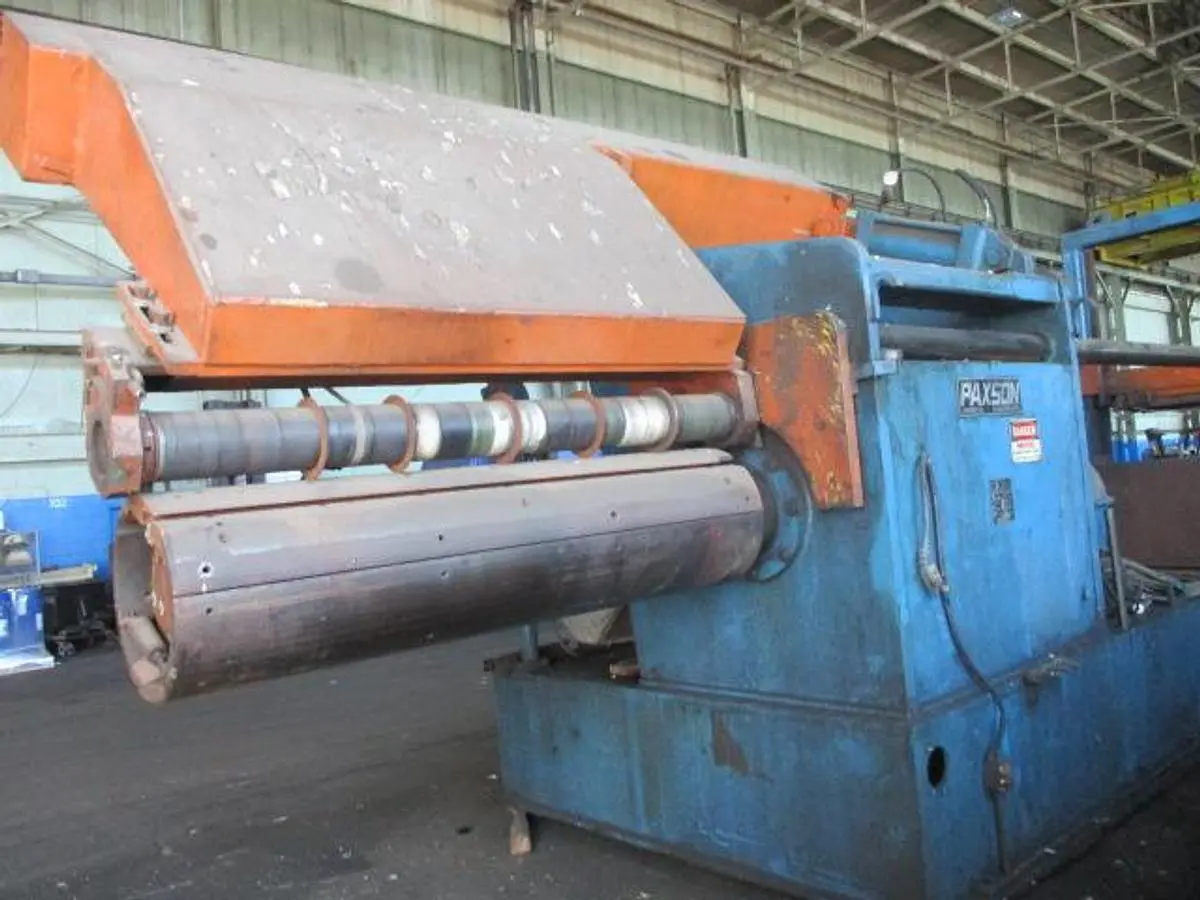

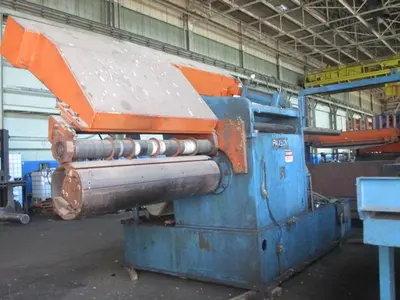

Mandrel Uncoiler
-Powered Hold-Down Roll
-Hydraulic Expansion
-Water Cooled Brake
-Feed-Up Motor
-Sliding Base

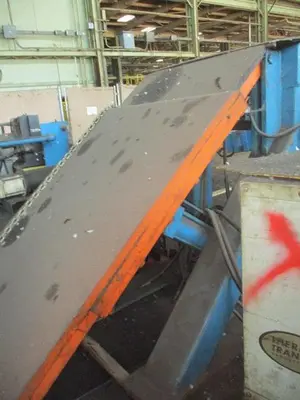

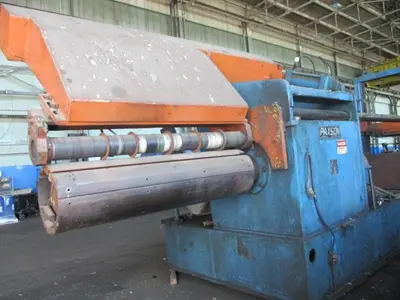

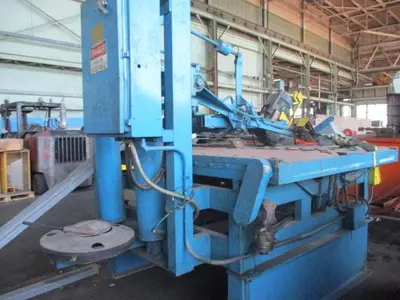

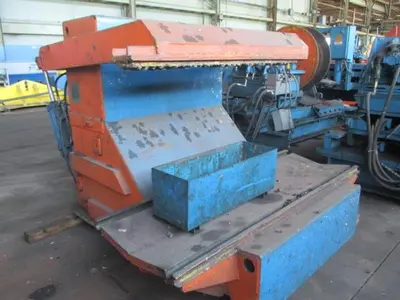

Hydraulic Peeling Table
-Driven Pinch Rolls
-Adjustable Edge Guides
-4-Roll Coil Breaker

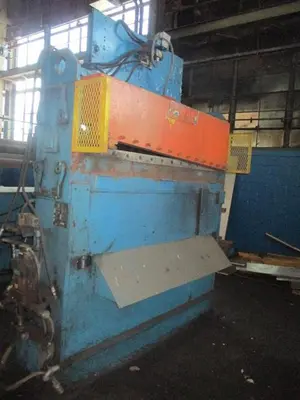

-Mechanical Entry Crop Shear

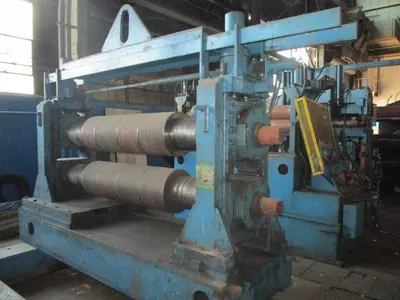

Two (2) Slitting Heads
-Arbor Diameter: 9" and 12"
-Crane Removable Type
-Adjustable Arbors
-150HP DC Motor Drive
-Multi Speed Gear
-Lots of Knives and Tooling

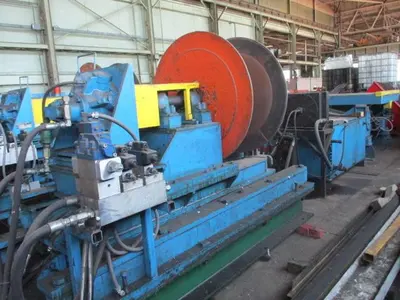

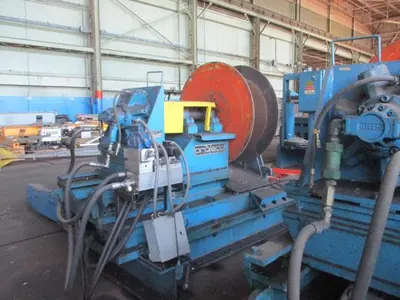

Two Pro-Eco Scrap Winders
-Max Thickness: .500"
-25HP Motor for Each Unit
-Powered Open / Close

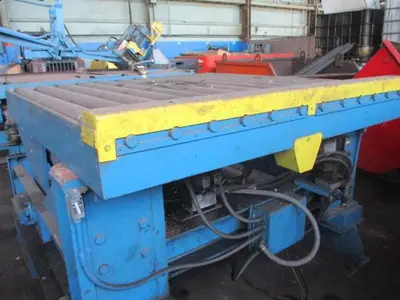

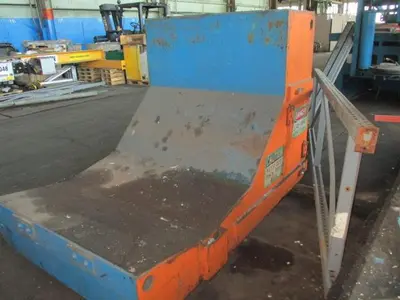

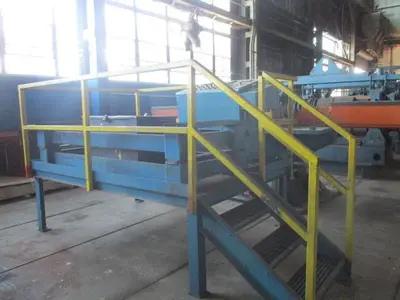

Pit Cross Over Table
Drag Board Tension Stand
-Recoiler Feed Table
-Strip Separating Bar with Tooling
Recoiler
-Powered Over-Arm Separator
-Hydraulic Push-Off
-Hydraulic Gripper
-125HP DC Motor Drive
-Multi Speed Gear Box
Exit L-Type Coil Car
-Floor Standing Design
-Hydraulic Lift and Traverse
-Self Contained Hydraulics

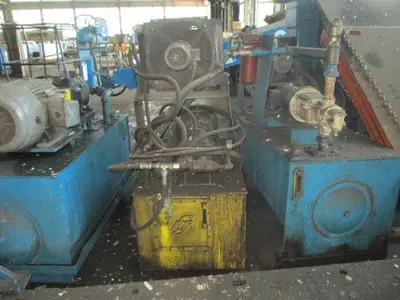

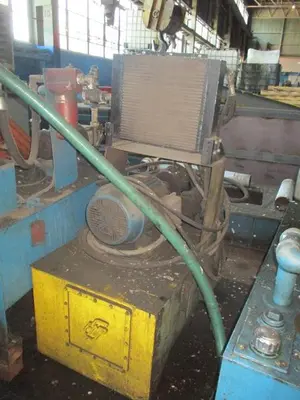

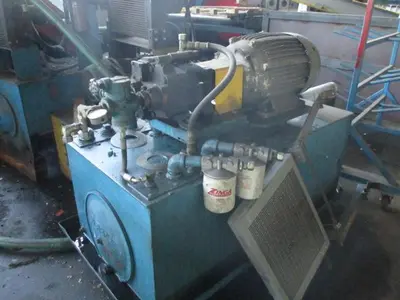

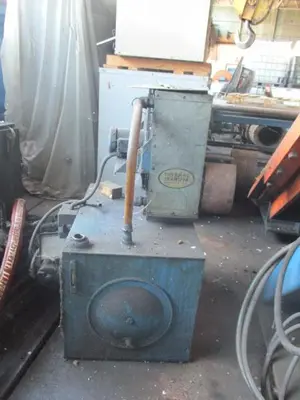

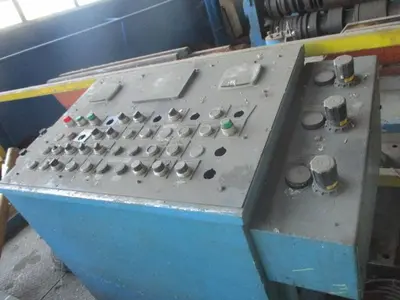

Electrics, Hydraulics, Controls, PLC, Lots of Tooling
