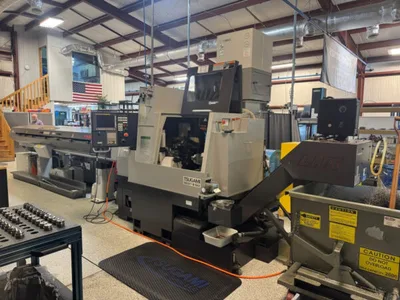

Tsugami SS327-5AX-III – 2022

2022 TSUGAMI SS327-III-5AX

BAR CAPACITY 1.26″

MAX MACHINING LENGTH 12.99″

MAX DRILLING DIAMETER 0.47″

MAIN SPINDLE MOTOR 7.4 hp

MAIN SPINDLE INDEXING FULL C-AXIS

MAIN SPINDLE SPEED 8,000 RPM

BACK SPINDLE MOTOR 7.4 hp

BACK SPINDLE INDEXING FULL C-AXIS

BACK SPINDLE SPEED 8,000 RPM

LIVE TOOL SPEEDS 6,000 RPM

CONTROLLABLE AXES 7

FANUC 31i-B5 CNC CONTROL (SIMULTANEOUS ALL AXES CONTROL)

FMB TURBO 3-38 BARLOADER

X1, Z1, Y1, X2, Y2, Z2, C1, C2

MODULAR B-AXIS TOOL SPINDLE (7,000 RPM SPINDLE)

BACK CROSS TOOL SPINDLE INCLUDED

DEEP HOLE DRILL HOLDER BESIDE BACK SPINDLE (T91 & T92)

MP SYSTEMS 2000 PSI COOLANT SYSTEM (8-PORT)

FIRETRACE SYSTEM

CHIP CONVEYOR (LNS)

PARTS CATCHER

LONG PARTS EJECTOR

TRANSFORMER

SLIDING HEADSTOCK W/DIRECT DRIVE GUIDE BUSHING

CONVERTIBLE TO CHUCKER MODE W/ OPTIONAL CHUCKER KIT

RIGID CAST IRON FRAME
