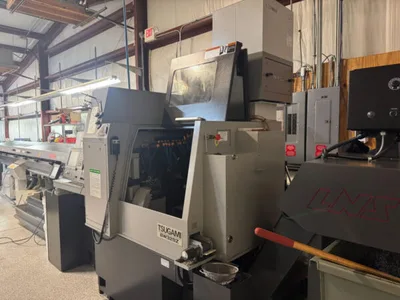

2022 TSUGAMI BW329Z CNC Swiss Type Lathe
MAIN SPINDLE INDEXING Full C
SUB SPINDLE INDEXING Full C
LIVE BACK WORKING TOOLS? Yes
Maximum Bar Stock: 32mm / 1.26″
Number Axes: 9
Max Headstock Stroke w/ Guide Bushing: 330mm / 12.99″
Max Headstock Stroke w/o Guide Bushing: 70mm / 2.76″
Number Tool Positions (std/max): 29 / 38
Number Live Tool Positions (std/max): 11 / 26
Main Spindle Speed: 200 – 8,000 RPM
Sub Spindle Speed: 200 – 8,000 RPM
Main Spindle Motor: 3.7 / 5.5 kW
Approx. Weight: 11,460 lbs. / 5,200 kg
Approx. Dimensions: 104.5″ x 64.5″ x 79″
Red/Yellow/Green Patrol Light System
Plumbed for 8 Port High Pressure Coolant System
Two Sets of Collets and Guide Bushings
V2-HO8 High Pressure 2,000 PSI Oil Pump
TriMist 850 Mist Collection System
LNS Turbo Micro Hinge Chip Conveyor, 500 Micron
FireTrace Fire Suppression System
12′ Edge Patriot 338 Barfeeder
TOOLING AS PER PHOTOS
