Overview
Type:
Tube & Pipe Machinery (Miscellaneous)
Manufacturer:
TVN
Model:
RT/8
Description

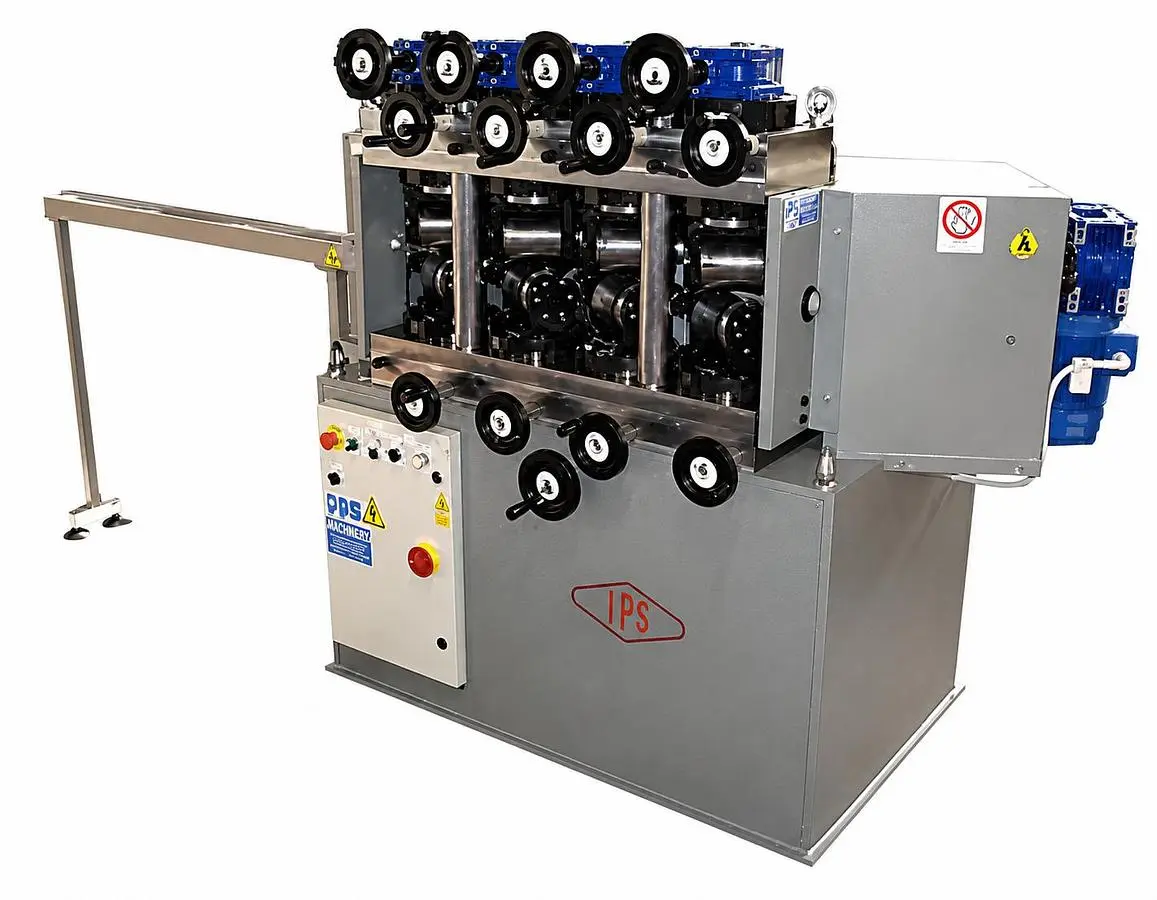

The machine is made to straighten Ag-Au material tubes and relative alloys. The complex of parts are mounted on a solid steel structure composed of base and cover connected by columns and tie rods to keep rigid the machine.

The machine has 4 couples of rollers aligned on the vertical axis. Max 0,3-0,5 mm. x mt. final tolerance.

The angular and vertical controls are manuals, through suitable wheels with gravitational analogical indicators. To guarantee the position of rollers during the working a mechanic locking system with driving lever is applied on every roller.

The machine is supplied with a entry guide plate with nylon bush adjustable for height and a counter bench in exit to support the tube.

Specifications

Double straightening speed: 5-10 mt/min
Diameter range tubes max: 30 mm.
Thickness range tubes from: 1-4 mm.
Length range tubes from: 1000 to 2000 mm.
Yielding: 500 N/mm2.
Feeding direction tube from: left to right
Installed HP: 2,3Kw
Overall dimensions: 2000mm x 1000mm x 1650mm
Approximate Weight: 1300 Kg
