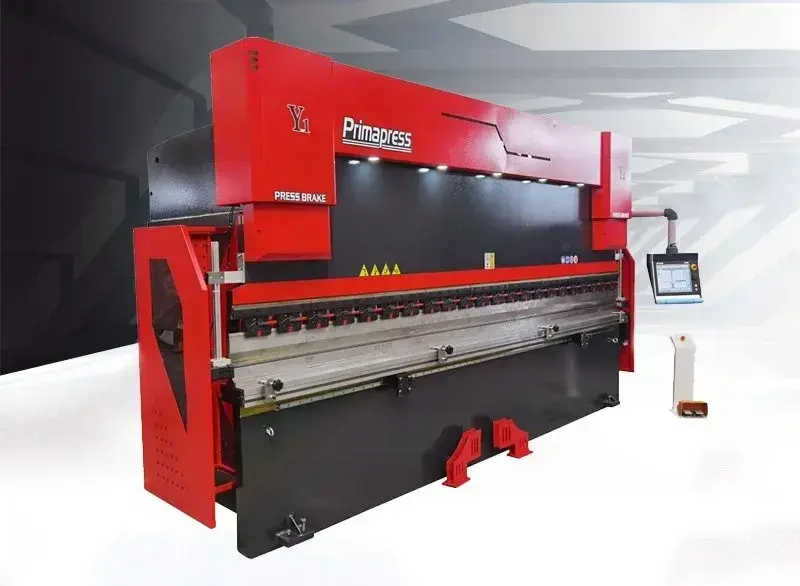

NEW 2026 PRIMAPRESS Tandem 2 x 400ton x 4000
Overview
Description
2026 PRIMAPRESS TANDEM PRESS BRAKES 2 - 400Ton x 4000 with Delem 53 Control
Prima adopts Europe 80 years engineering design drawings and quality oriented attitude to build long-using-life and easy-to-operate CNC Machines with best after-sales Services.Prima Technology from Europe .Prima Have ISO & CE Certificates,3 Years Warranty Time.

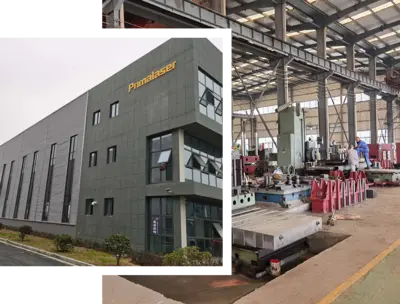

All kinds of hydraulic machine, ironworker, rolling machine ,duct pipe making machines and other metal forming forging equipment by 4 factories nearby and totally 80000 SQM Factory with 850 technicians and 150 after sales service technicians.
Primapress is a mature brand in China. We have CE, ISO and SGS certification to prove our quality. We welcome your visit, seeing is believing.
Specifications
| Tonnage | 400 T | 362.874 t |
|---|---|---|
| Type | HYD | HYD |
| Overall Length | 157.48" | 4 m |
| Between Housings | 124.02" | 3.2 m |
| Stroke | 9.84" | 249.94 mm |
| # Axis | 4 | 4 |
| Control | CNC (DELEM DA53T 4 axes) | CNC (DELEM DA53T 4 axes) |
| Dimensions | 188.98" x 125.98" x 212.6" | 188.98" x 125.98" x 212.6" |
Bending length 4000mm 157.48"
Bending Tonnage 400 Tons
3 Distance between 3150mm (124.02")
4 Throat 900mm (35.43")
5 Stroke 250 mm (9.84")
6 Max open height 800 mm (31.")
7 X, Y axis travel repeat positioning accuracy: ±0.02mm
8 Approach speed(max) 80mm/s
9 Working speed 8mm/s
10 Backing speed 80mm/s
11 Control axis X,Y1, Y2,CNC control 4 axes
12 Dimension 2*4800x3200x5400mm Removable
13 Electrics 380V/50Hz/3Ph Optional
14 Motor 30KW*2 Kw 40 HP
Attachment with the machine& Machine key components list
