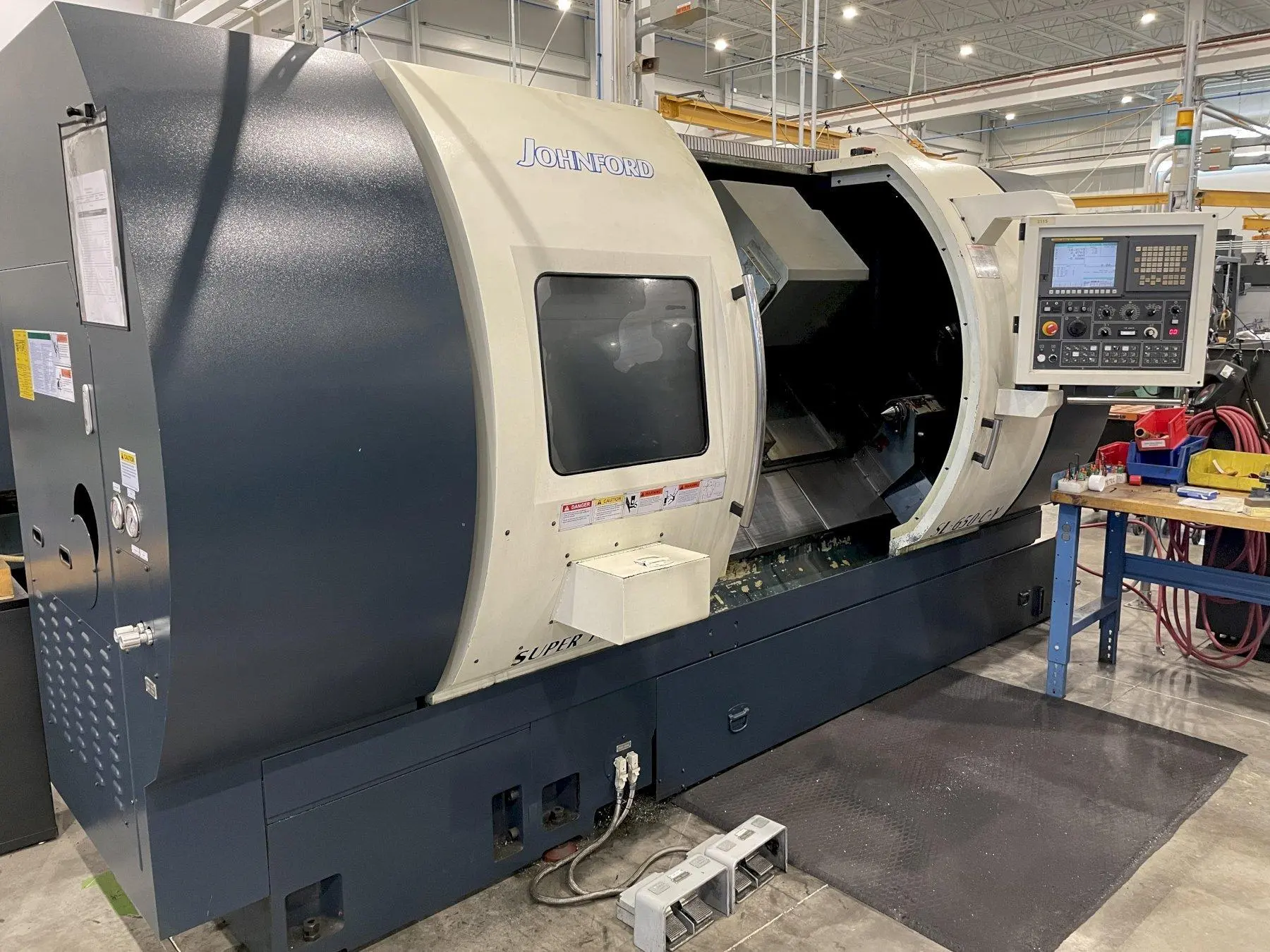

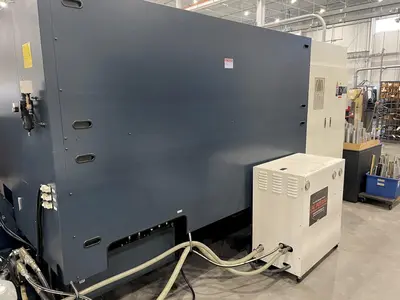

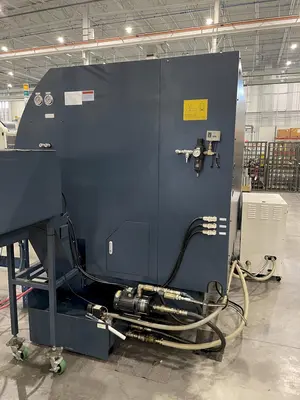

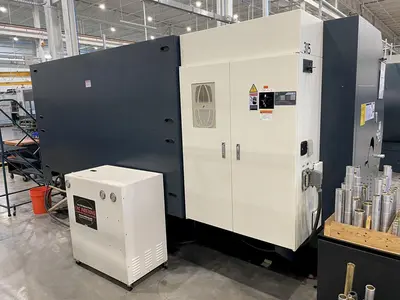

USED 2013 JOHNFORD SL-650+C+Y

The Johnford SL-650+C+Y is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

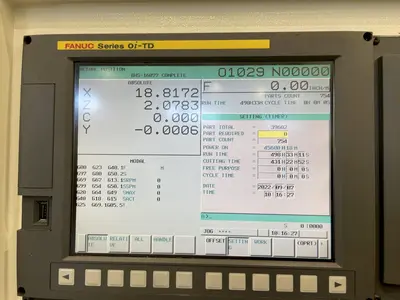

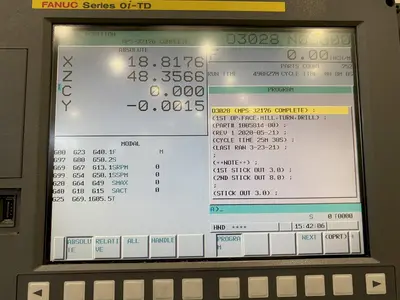

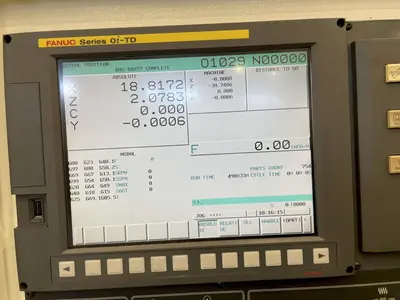

Control Type: Fanuc 0i-TD
# Axis: 4
Swing: 22.8"
Turning Diameter: 16.5"
Center Distance: 60"
Chuck Size: 10"
Bar Capacity: 3"
X Axis Travel: 9.8"
Z Axis Travel: 55.1"
C Axis Index: 0.001°
Rapid Traverse (X/Z): 590/708 ipm
Rapid Traverse Y-Axis: 393 ipm
Spindle Nose: A2-8
Spindle Speed: 3,500 rpm
Main Motor: 25 hp

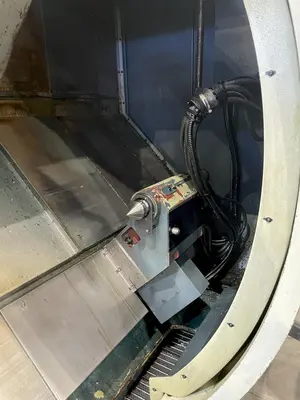

Tailstock: yes
Y Axis: yes
Live Tooling: yes
Live Tooling Speed: 3,800 rpm
Live Tooling Motor: 7.5 hp
Turret Capacity: 12
Dimensions: 208" x 89" x 86"
Weight: 26,000 pounds

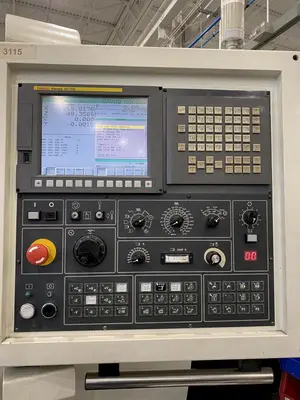

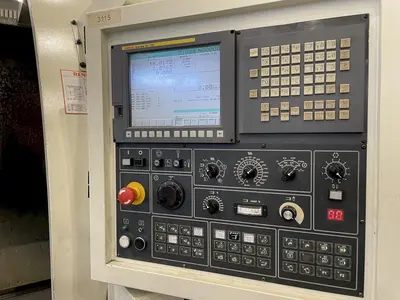

- Fanuc 0i-TD CNC Control

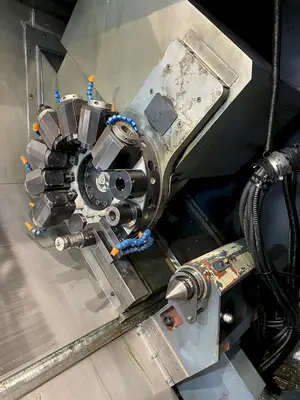

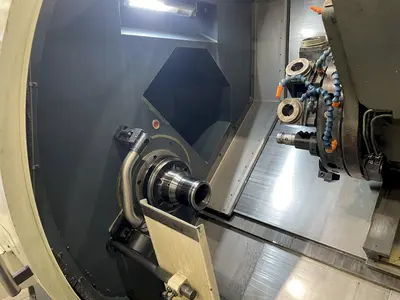

- 12 Position VDI Live Tooling Turret
- 10" Samchully 3-jaw Chuck
