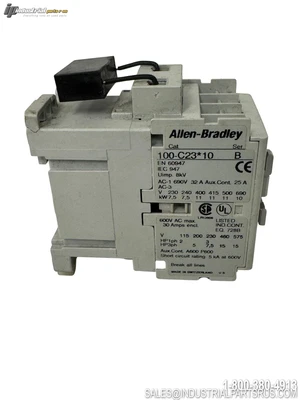

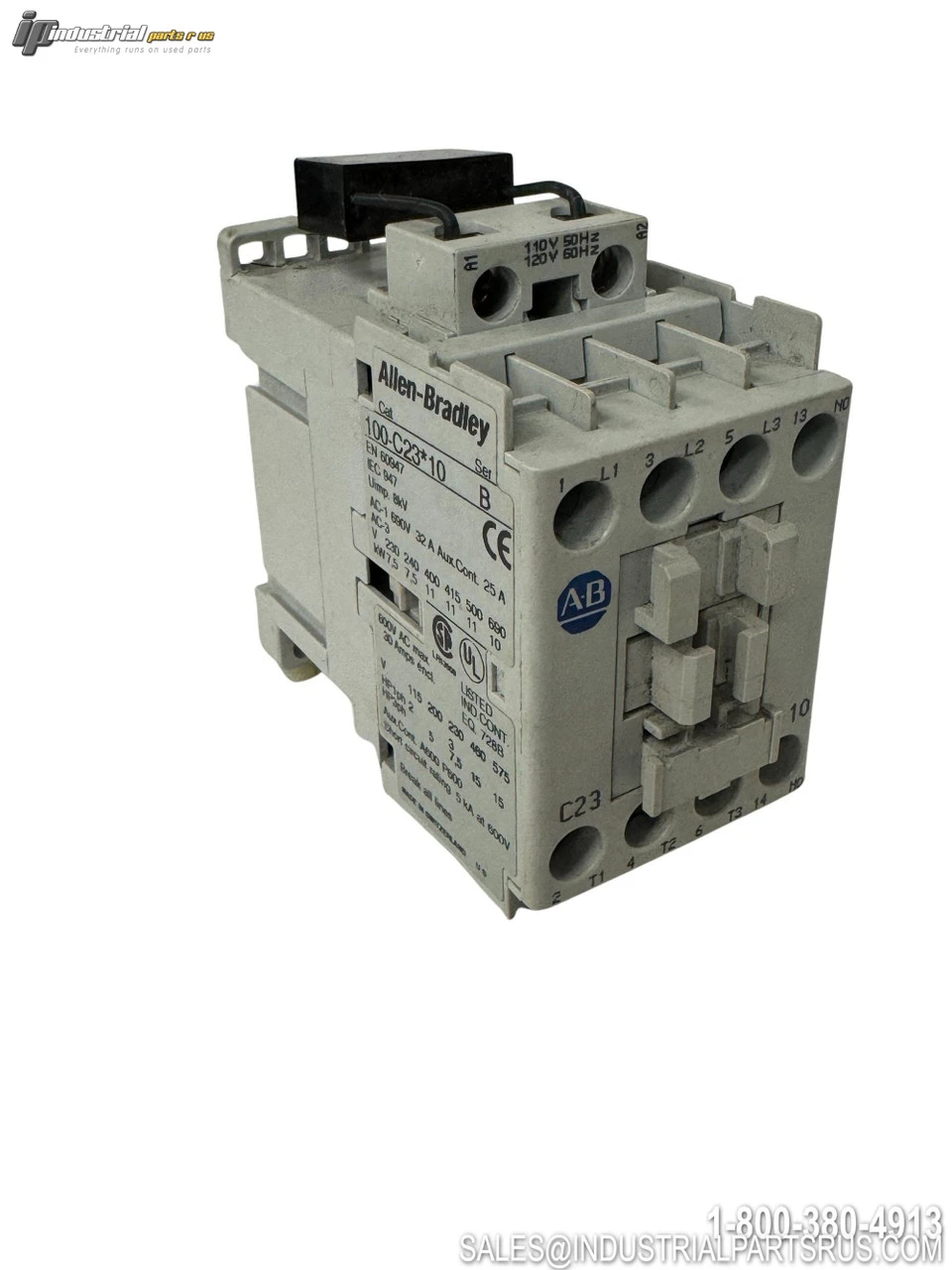

USED ALLEN-BRADLEY 100-C23*10

The Allen-Bradley 100-C23*10 is a 3-pole IEC contactor from the Bulletin 100-C series designed for motor control and industrial switching applications. This contactor is rated for 23A AC-3 duty and includes one normally open auxiliary contact factory-installed. The asterisk (*) indicates that a coil voltage code must be selected to complete the catalog number.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
100-C23*10
Type
IEC Contactor
Bulletin Series
100-C
Frame Size
23
Poles
3
Current Rating (AC-3)
23A
Current Rating (AC-1)
32A
HP Rating 230V
7.5
HP Rating 460V
15
Auxiliary Contact
1 NO (10 suffix)
Coil Voltage
See label - requires selection
Terminal Type
Screw terminals
Mounting
DIN Rail, Panel Mount
Operating Temperature
-25 to +60°C
IEC Standard
IEC 60947-4-1
Auxiliary Contact Mounting
Left side only
Electrical Life (AC-3)
See technical data
We warranty all items for 30 days from date of purchase.

SKU: AI1663
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Mounting Style: DIN Rail, Panel Mount
Current Rating: 23A
Full Load Amps: 23A
Manufacturer: Allen-Bradley
Part Number: 100-C23*10
Series: 100-C
Shelf: C-14
Model: 100-C23*10
Coil Voltage: See label
Horsepower: 7.5 HP @ 230V, 15 HP @ 460V
MPN: 100-C23*10
Type: Contactor
