USED ALLEN-BRADLEY 100-C09E*10

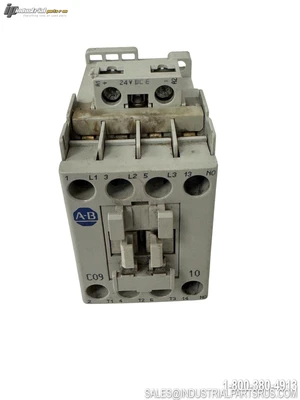

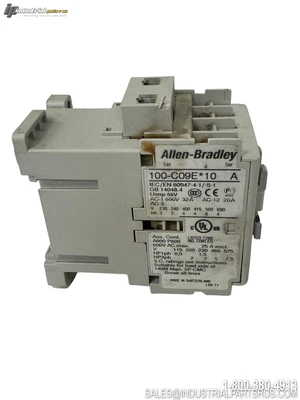

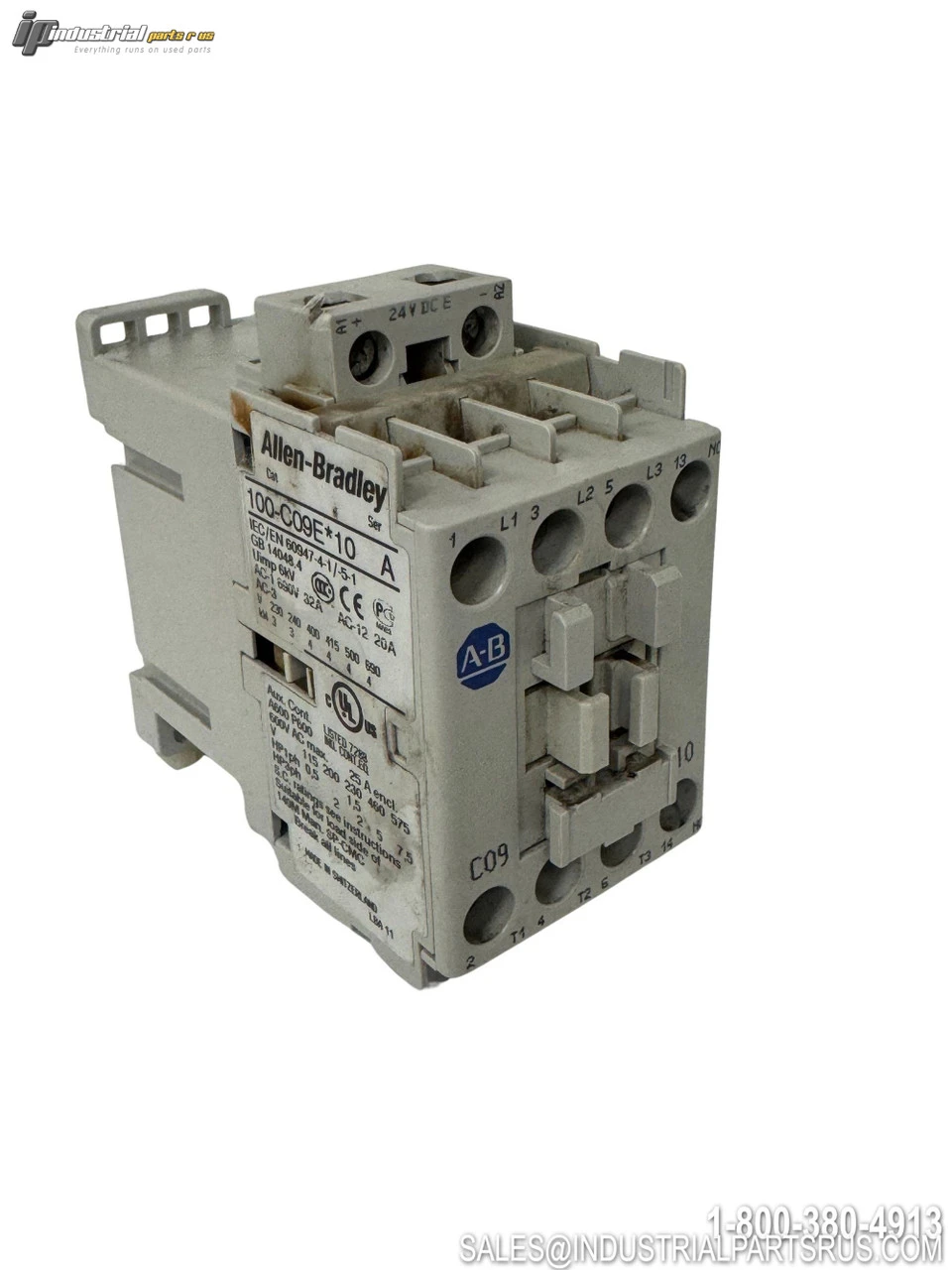

The Allen-Bradley 100-C09E*10 is a compact IEC-rated 3-pole contactor from the Bulletin 100-C series designed for motor control applications. This contactor is rated 2 HP at 230V and 5 HP at 460V and comes with 1NO auxiliary contact. The "E" designation indicates an electronically-controlled DC coil designed for enhanced performance and reliability in industrial automation systems.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
100-C09E*10
Product Type
IEC Contactor
Current Rating
9A
Poles
3-Pole
HP Rating at 230V
2 HP
HP Rating at 460V
5 HP
Voltage Rating
600V AC
Coil Type
Electronically-Controlled DC
Coil Voltage Range
12-250VDC
Auxiliary Contacts
1 NO (Normally Open)
Mounting Type
DIN Rail or Base Mount
IEC Conformance
IEC/EN 60947-4-1 / 5-1
Series
Bulletin 100-C
Platform
Miniature Contactors
We warranty all items for 30 days from date of purchase.

SKU: AI1662
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Mounting Style: DIN Rail/Panel Mount
Current Rating: 9A
Material: High-Grade Polymer Housing, Silver Alloy Contacts
Manufacturer: Allen-Bradley
Part Number: 100-C09E*10
Series: Bulletin 100-C
Shelf: C-14
Model: 100-C09E*10
Coil Voltage: 12-250VDC
Horsepower: 2 HP @ 230V, 5 HP @ 460V
MPN: 100-C09E*10
Type: Contactor
