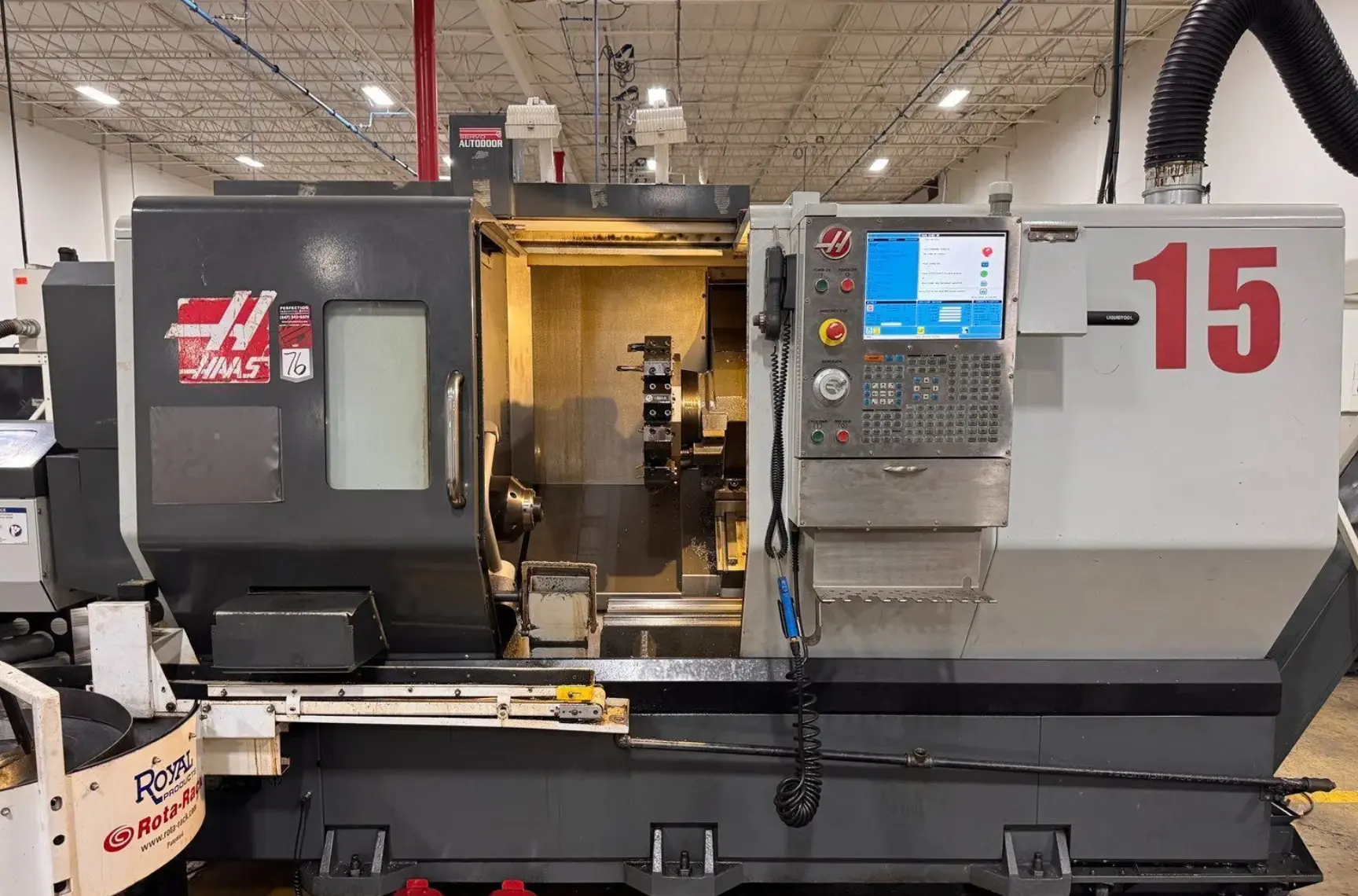

Used CNC Lathe, 21" swing, 26" machining length, 2-axis, 3" bar capacity, 30 hp, max RPM of 3,400. Equipped with Haas CNC Control, programmable tailstock, tool presetter, and chip conveyor. Tailstock and 12 tool turret included.
| Swing | 21" | 533.4 mm |
| Machining Length | 26" | 660.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 21" | 533.4 mm |
| Tailstock | Yes | Yes |
| Control | CNC (HAAS) | CNC (HAAS) |
Chuck: 10″
Max. Part Swing: 21″
Max. Cutting Diameter: 15″
Max. Cutting Length: 32.5″
Bar Capacity: 3″
Distance Between Centers: 32.5″
X-Axis Travel: 9.4″
Z-Axis Travel: 32.5″
X & Z Axis Rapids: 945 IPM
Spindle Nose: A2-6
Spindle Power: 30 HP
Max. Spindle Speed: 3,400 RPM
Spindle Bore: 3.5″
Turret Capacity: 12 Tool
Haas CNC Control
Programmable Hydraulic Tailstock
Tool Presetter
Chip Conveyor
