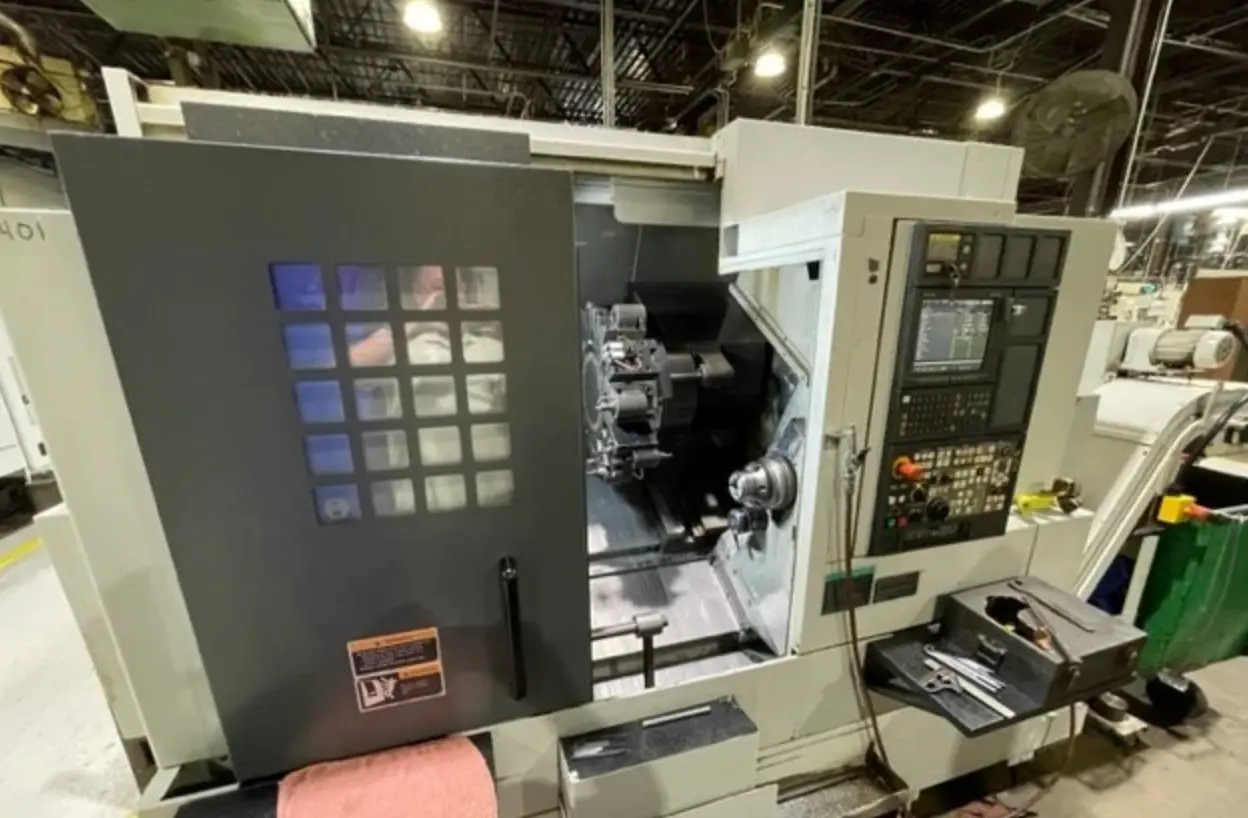

CNC Lathe in used condition, featuring MSX-850 III CNC Control with MAPPS, 8" and 6" chuck sizes, 12-station turret, spindle speeds up to 6,000 RPM, and extensive tooling. Max turning dia 14", weight 13,000 lbs.
| Swing | 36.4" | 924.56 mm |
| Machining Length | 20" | 508 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Tailstock | No | No |
| Sub Spindle | Yes | Yes |
| Dimensions | 134" X 76" X 84" | 134" X 76" X 84" |
| Weight | 13,000 LBS | 13,000 LBS |
BAR CAPACITY:2"
CHUCK SIZE:(MAIN) 8" & (SUB) 6"
SPINDLE SPEED:(MAIN ) 5,000 RPM / (SUB) 6,000 RPM
SPINDLE MOTOR:20/15 HP
X AXIS TRAVEL:10.2"
Z AXIS TRAVEL:23.3"
RAPID RATE Z AXIS:1,181 IPM
TURRET TOOLS:12 STATION
RAPID RATE X AXIS:1,181 IPM
MAX TURNING DIA:14"
MAX TURNING LENGTH:20"
MAX SWING:36.4"
DIMENSIONS:134" X 76" X 84"
WEIGHT:13,000 LBS
MSX-850 III CNC CONTROL W/ MAPPS
COLLET CHUCK ON MAIN AND SUB SPINDLE
CHIP CONVEYOR
PARTS CATCHER
ALL AVAILABLE TOOLING
