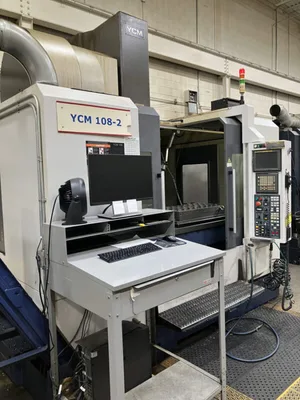

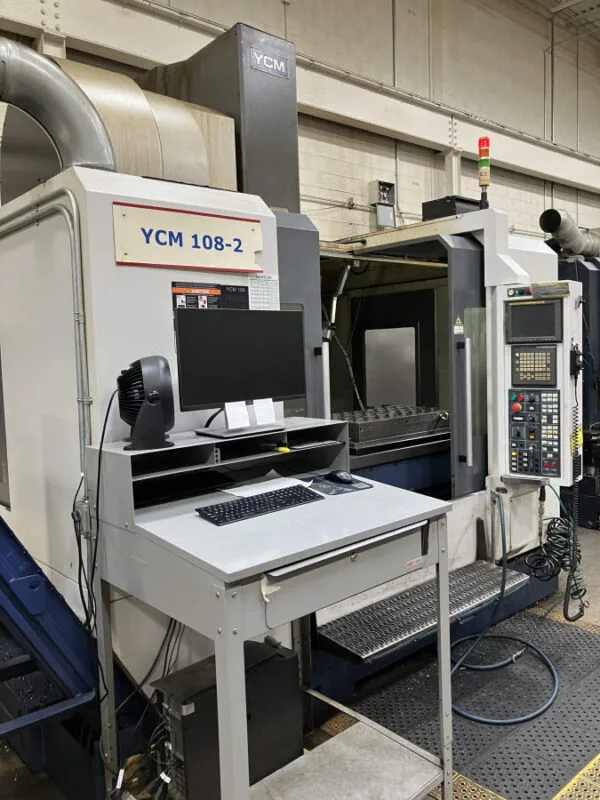

2008 YCM WV108B CNC Mill
VERTICAL MACHINING CENTER
Table Size L x W (in.): 51.180(L) x 32.280(W)
Max Workpiece Weight (lbs): 2,464 Lbs.
Spindle Taper: CAT 50
Top RPM: 10,000
Travel Max Feed Rate Rapid Traverse
X 44.090″
Y 30.000″
Z 27.560″
HP (30 min rating): 30.00
Tool Carrier: 32 ATC
Rapids: 945 IPM
Machine Weight: 11,000 kg (25,000 Lbs)
Control Fanuc MXP-200i
Chiller Unit
Coolant Through Spindle
Chip Conveyor
