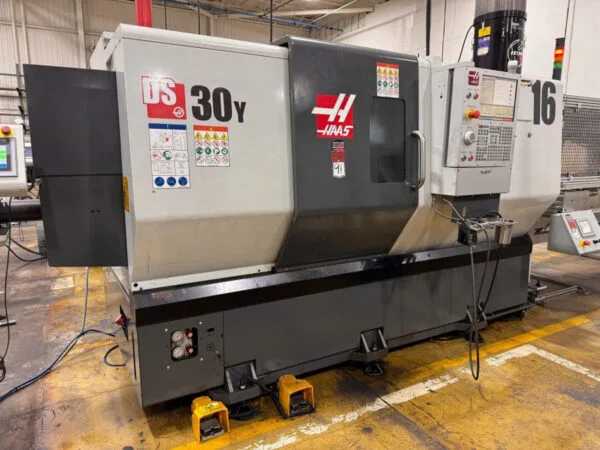

HAAS DS30Y CNC Lathe

Bar Capacity: 3″

Chuck Size: 10″

Spindle Speed: 4,500 RPM

Spindle Motor: 30 HP

X Axis Travel: 12.5″

Z Axis Travel: 23″

Rapid Rate Z Axis: 945 IPM

Turret Tools: 24 Station

Rapid Rate X Axis: 472 IPM

Max Turning Dia: 18″

Max Turning Length: 23″

Max Swing: 31.8″

Swing Front Apron: 31.8″

Swing Over Cross Slide: 20.8″

Swing Second Spindle: 21.8″

Max Thrust X: 4100 lbf

Max Thrust Y: 2300 lbf

Max Thrust Z: 5100 lbf

Spindle Nose: A2-6

Drive System: Direct Speed

Max Torque: 275 ft-lbf

Spindle Bore ø: 3.50″

Main Spindle: C Axis

Max Rating: 5 hp

Positioning (±): 0.01 °

Brake Clamp Force: 1000 lbf

Brake Diameter: 14.4″

Interpolated Motion and Positioning
SUB SPINDLE:

Chuck Size: 8″

Spindle Nose: A2-5

Drive System: Direct Speed

Max Rating: 20 hp

Max Speed: 4800 rpm

Max Torque: 110 ft-lbf

Spindle Bore: 2″

Bar Capacity: 2″

Boring Bar Rear Clearance: 4″
LIVE TOOLING:

Y Axis: ± 2.0″

Max Speed: 6000 rpm

Drive Ratio: 1:1

Tooling: BMT65

Coolant Capacity: 65gal

Dimensions: 171″ x 90″ x 92″

Weight: 12,200 LBS

Haas CNC

COLLET CHUCKS

TOOL SETTER

CHIP CONVEYER

MIST COLLECTOR
