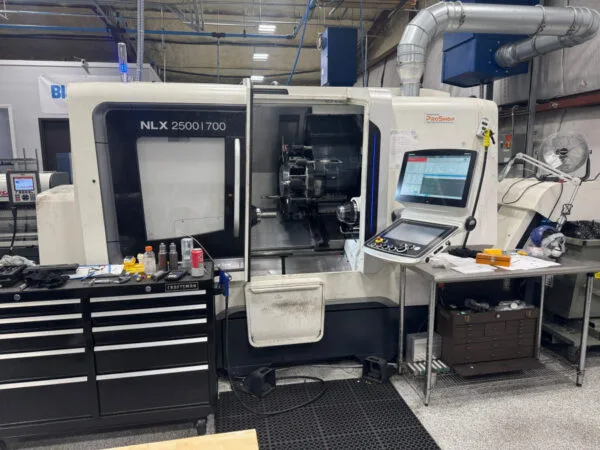

DMG Mori NLX-2500SY/700 – 2020

2020 DMG MORI NLX2500SY

Trough Hole: 4.1″ 111mm

Chuck Size: 12″

Spindle Speed: 2500 RPM

Spindle Motor: 30 HP

X Axis Travel: 10.2″

Z Axis Travel: 31.3″

Rapid Rate Z Axis: 1,181 IPM

Turret Tools: 12 Station

Rapid Rate X Axis: 1,181 IPM

Max Turning Dia: 18.1″

Max Turning Length: 27.7″

Max Swing: 23.2″
SUB-SPINDLE:

Sub Spindle Speed: 5,000 rpm

73mm hole through

Sub Spindle Nose: A2-6

Sub Spindle Motor: 15 hp

Travels (B Axis, Sub-spindle): 28.9″
TURRET:

Turret Type: Block Style

Turret Positions: 12

Turret Index Time: 0.27 sec

Rotary Tool Spindle Speed: 10,000 rpm

Travels (Y Axis): +/- 2.0″

Rotary Tool Spindle Motor: 10 hp

Dimensions: 156″ x 82.9″ x 86.6″

Weight: 14,000 LBS

Tool Setter

Chip conveyer

Robot interface

Sub spindle

y-axis

tailstock option

Celos Control

LNS quick load servo 3 barloader
