USED BUHLER INC. BTSK 30/40

Manufacturer Info
Bühler is a global manufacturer of advanced processing and extrusion equipment for food, plastics, chemicals, pharmaceuticals, and specialty material applications. Bühler twin screw extruders are engineered for high-performance compounding, reactive extrusion, polymer processing, and continuous industrial manufacturing operations.
Description

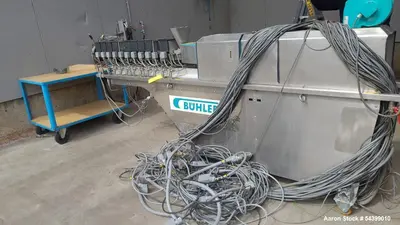

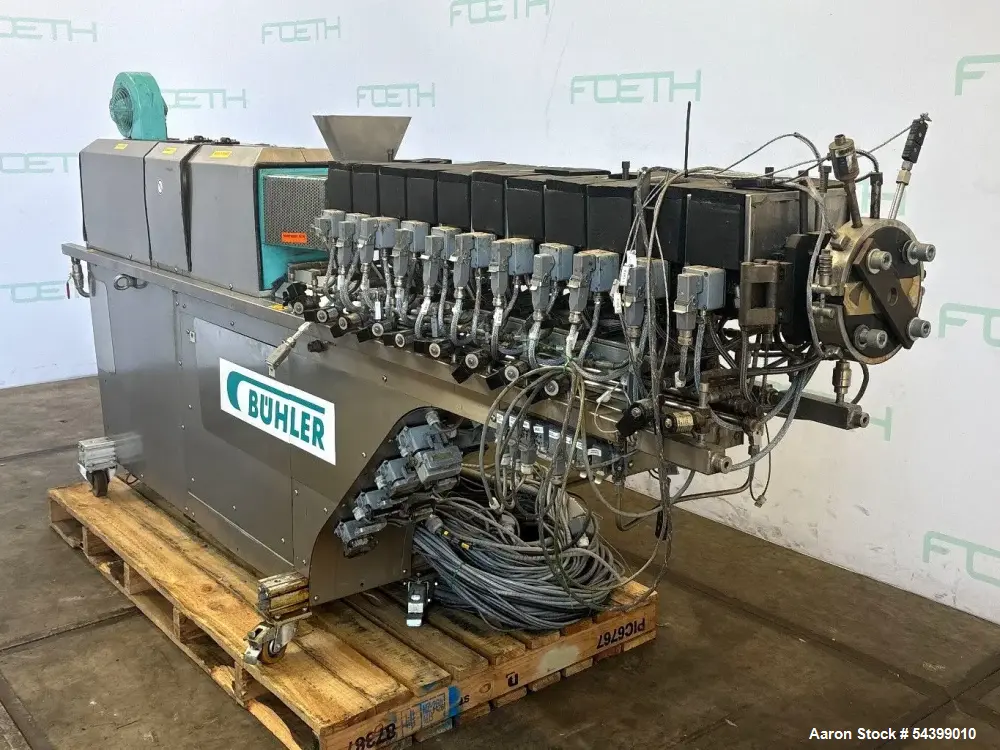

Used Bühler BTSK 30/40D twin screw extruder equipped with (2) 50 mm diameter side-by-side screws and a 53:1 L/D ratio. Unit features 11 electrically heated and water-cooled barrel sections for precise thermal processing and material control. Driven by a 21 kW (31.5 HP), 440 volt AC drive motor through a gearbox, with maximum screw speed up to 800 RPM.

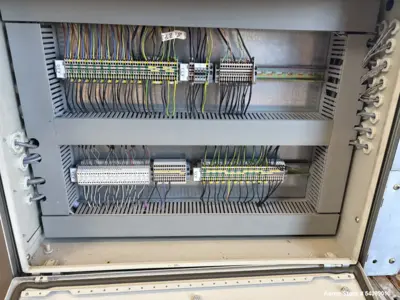

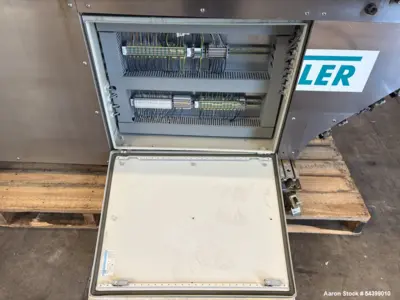

The extruder is frame mounted and includes its control panel. Previously utilized in a Teijin Aramid application, making it suitable for specialty polymer compounding and engineered material processing applications.
Specifications

Manufacturer: Bühler
Model: BTSK 30/40D
Type: Twin Screw Extruder

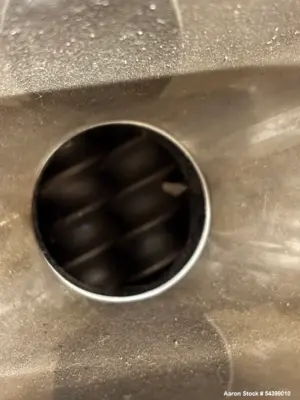

Screw Configuration:

Twin Side-by-Side Screws

Screw Diameter:

2 x 50 mm

L/D Ratio:

53:1

Barrel Sections:

11 Sections

Barrel Features:

Electrically Heated
Water Cooled

Drive Motor:

21 kW
Approx. 31.5 HP
440 Volt AC

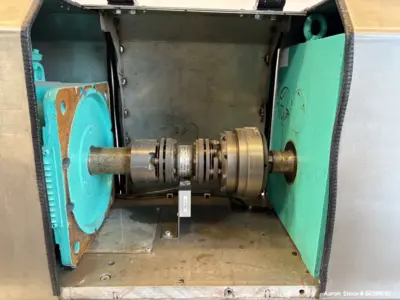

Drive System:

Gearbox Driven

Maximum Screw Speed:

800 RPM

Mounting:

Frame Mounted

Includes:

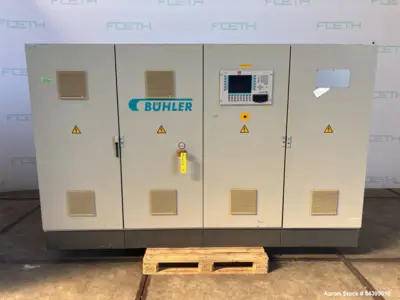

Control Panel

Previous Application:

Teijin Aramid Processing

Weight:

Approximately 1540 lbs / 700 kg

Extruder Dimensions:

2400 mm Long
500 mm Wide
1450 mm High

Condition: Used

Applications

Polymer compounding
Reactive extrusion
Specialty material processing
Fiber compounding
Plastics processing
Aramid material processing
Engineering resin production
Continuous mixing
Additive incorporation
Industrial extrusion processing

Products This Would Be Used For

Engineering plastics
Aramid compounds
Polymer masterbatch
Filled resins
Reinforced plastics
Thermoplastic compounds
Specialty polymers
Composite materials
Industrial fibers
High-performance materials
