USED TRANE CO CGAM

Manufacturer Information
Trane is a global manufacturer of commercial and industrial heating, ventilation, air conditioning and refrigeration equipment, including air-cooled chillers, water-cooled chillers, air handling units and integrated building climate control systems. The Trane CGAM series features air-cooled scroll liquid chillers designed to produce chilled water for commercial HVAC and industrial process cooling applications. Trane Performance Climate Changer air handling units are designed for commercial and industrial air distribution and temperature control, with configurations that can incorporate chilled water cooling coils and electric heating sections.
Main Product Description

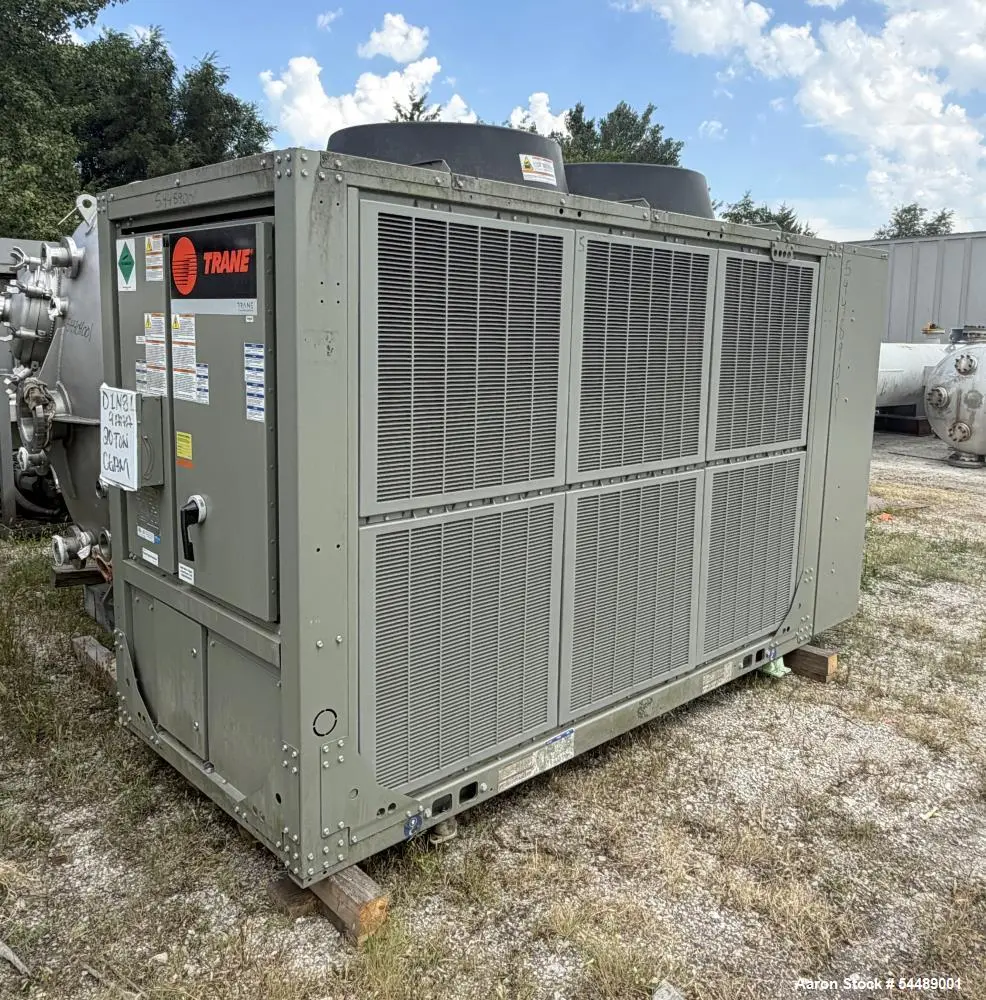

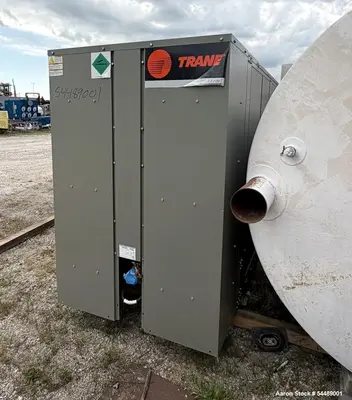

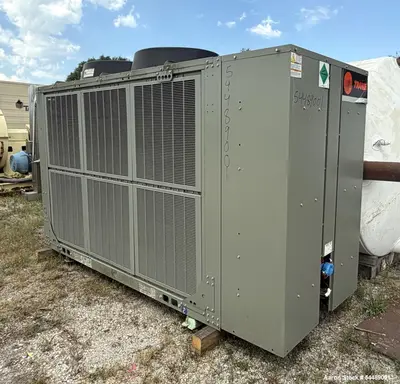

Used Trane Model CGAM 020F high-efficiency 20-ton air-cooled scroll liquid chiller with dual 5 HP circulation pumps and Trane Model CSAA006UBL00 Performance Climate Changer air handler equipped with a 17.5 kW electric heating coil section. Industrial and commercial chilled water cooling system designed for building air conditioning, central HVAC systems, process cooling and compatible manufacturing applications. Chiller is rated for approximately 20 tons of nominal cooling capacity, equivalent to 240,000 BTU/hour, and utilizes R-410A refrigerant with an approximate 45 lb refrigerant charge. Features an air-cooled condenser with lanced aluminum fins for heat transfer and scroll compressor refrigeration technology. Refrigeration system has a high-side design pressure of 650 PSI and low-side design pressure of 238 PSI. Equipped with (2) 5 HP circulation pumps for chilled water distribution to compatible process equipment, cooling coils and HVAC systems. Includes Trane Model CSAA006UBL00 Performance Climate Changer air handler with an electric heating coil section rated at 17.5 kW and a maximum output air temperature of 104°F, providing heating capability for compatible air handling applications. Chiller and air handler require 460 volts, 3-phase, 60 Hz electrical service. Chiller is UL listed. Chiller Serial #U21M04243. Full chiller model configuration: CGAM 020F 2W03 AXD2 A1A1 B1AX XA1C 1A4X XX8B 1A1A 3A1D 1XXC XX. Possible applications include commercial building air conditioning, chilled water HVAC systems, industrial process cooling, manufacturing equipment cooling, plastics processing, food and beverage production, pharmaceutical facilities and other compatible industrial or commercial applications requiring chilled water cooling and air temperature control.
Equipment Specifications

Manufacturer: Trane

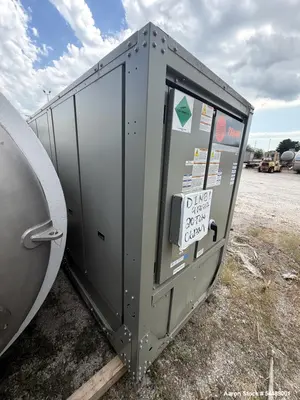

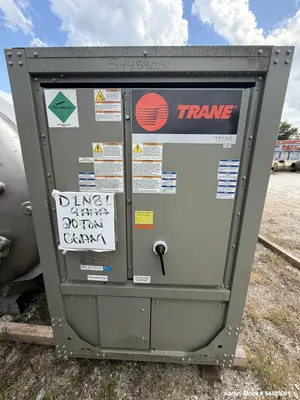

Chiller Model: CGAM 020F

Equipment Type: Air-Cooled Scroll Liquid Chiller and Air Handling System

Condition: Used

Nominal Cooling Capacity: Approximately 20 Tons

Cooling Capacity Equivalent: 240,000 BTU/Hour

Cooling Capacity Equivalent: Approximately 70.3 kW

Chiller Condenser Type: Air-Cooled

Compressor Technology: Scroll

Condenser Fin Construction: Lanced Aluminum Fins

Refrigerant: R-410A

Approximate Refrigerant Charge: 45 lbs

High-Side Refrigeration Design Pressure: 650 PSI

Low-Side Refrigeration Design Pressure: 238 PSI

Circulation Pumps: (2) 5 HP

Total Circulation Pump Motor Horsepower: 10 HP

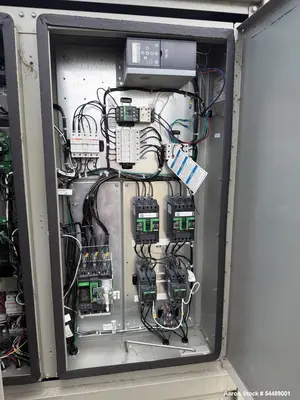

Chiller Electrical Requirements: 460V, 3-Phase, 60 Hz

Chiller Listing: UL Listed

Included Air Handler Manufacturer: Trane

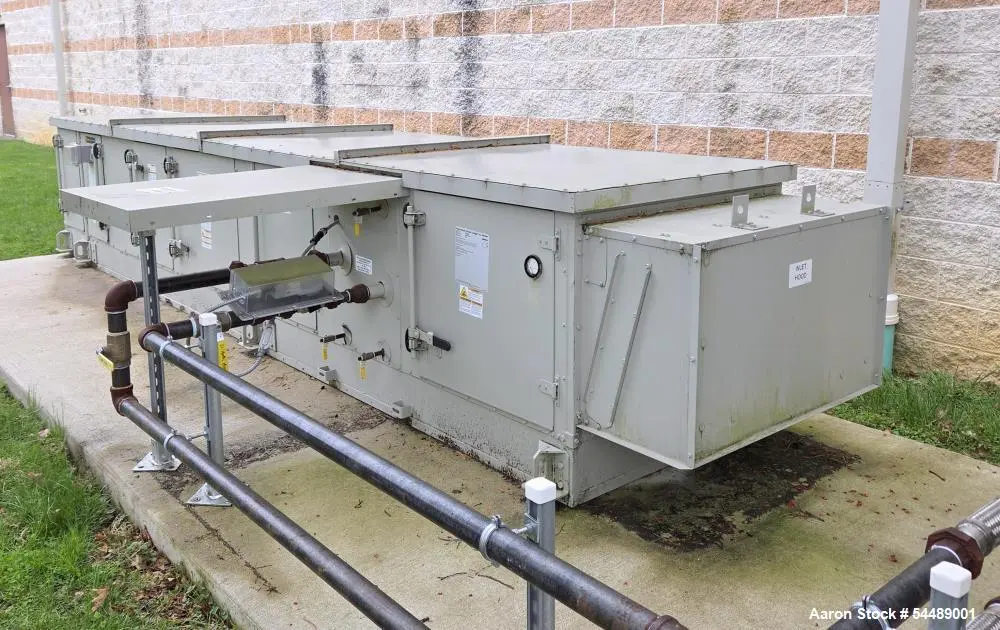

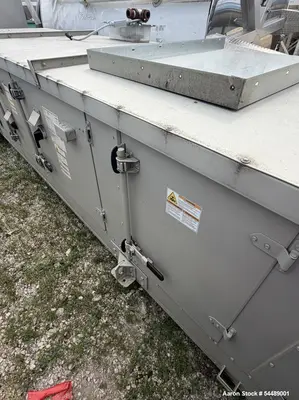

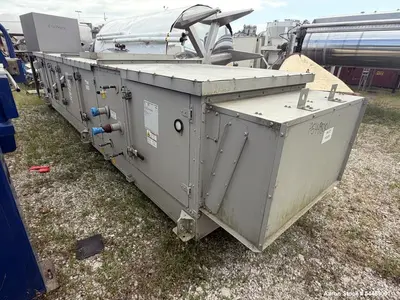

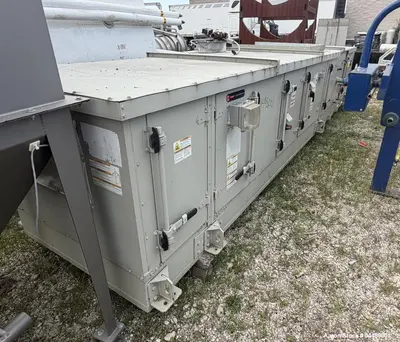

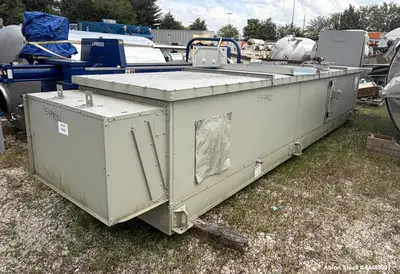

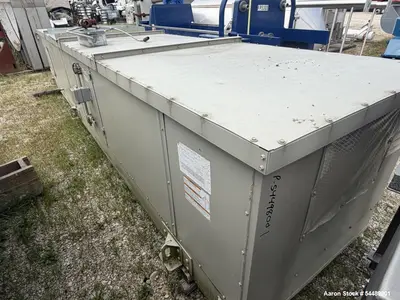

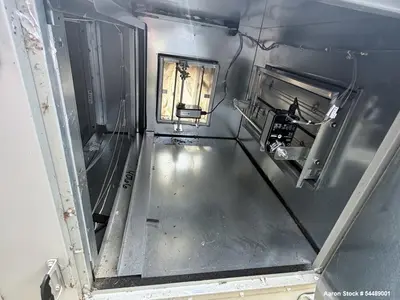

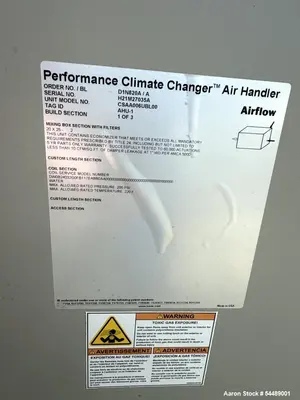

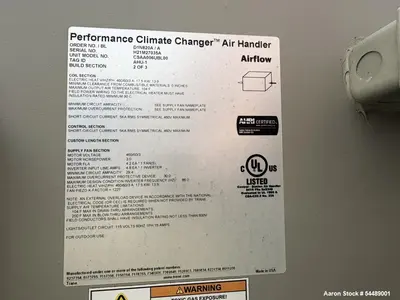

Air Handler Model: CSAA006UBL00

Air Handler Series: Performance Climate Changer

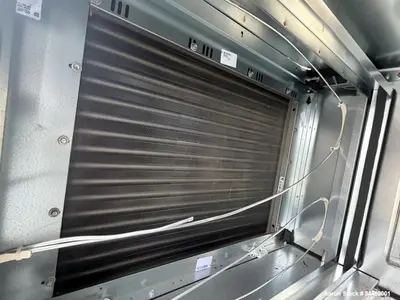

Air Handler Heating Section: Electric Heating Coil

Electric Heating Capacity: 17.5 kW

Electric Heating Capacity Equivalent: Approximately 59,700 BTU/Hour

Maximum Air Handler Output Air Temperature: 104°F

Air Handler Electrical Requirements: 460V, 3-Phase, 60 Hz

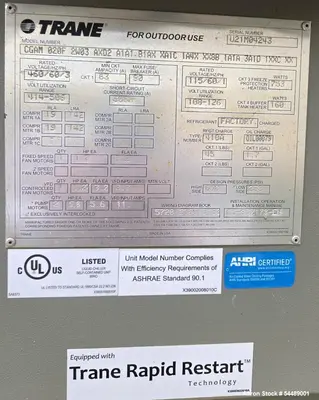

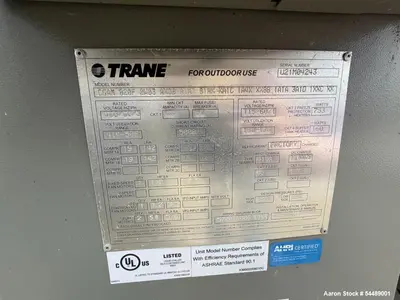

Chiller Serial Number: U21M04243

Full Chiller Model Configuration: CGAM 020F 2W03 AXD2 A1A1 B1AX XA1C 1A4X XX8B 1A1A 3A1D 1XXC XX

Applications

Commercial Building Air Conditioning: Supplying chilled water to compatible air handling equipment and cooling coils in office buildings, retail facilities, institutional properties and commercial spaces.

Central Chilled Water HVAC Systems: Providing approximately 20 tons of nominal cooling capacity for compatible chilled water distribution systems serving commercial and industrial buildings.

Commercial Air Heating and Cooling: Combining chilled water cooling with an air handling unit equipped with electric heating capability for compatible building temperature control applications.

Industrial Process Cooling: Producing chilled water for manufacturing operations requiring controlled process temperatures and continuous equipment cooling.

Manufacturing Equipment Cooling: Removing process heat from compatible industrial machinery, production equipment and temperature-sensitive manufacturing systems.

Plastics Manufacturing: Supplying chilled water to compatible injection molding machines, plastic extrusion equipment, mold cooling circuits and polymer processing operations.

Food and Beverage Processing: Providing chilled water for compatible production equipment, ingredient cooling processes and manufacturing temperature control systems.

Pharmaceutical Manufacturing: Supporting compatible process cooling equipment, facility air handling operations and industrial temperature management systems.

Laboratory and Research Facilities: Providing chilled water and air temperature control for compatible laboratory equipment and facility HVAC systems.

Printing and Packaging Operations: Supplying process cooling to compatible printing presses, packaging machinery and production equipment requiring controlled operating temperatures.

Industrial Closed-Loop Cooling: Circulating chilled water through compatible closed-loop cooling systems, heat exchangers and manufacturing equipment.

Commercial Facility Temperature Control: Supporting cooling and electric air heating requirements in compatible warehouses, production facilities, educational buildings and other commercial environments.

HVAC System Replacement or Expansion: Providing a potential equipment option for compatible chilled water system upgrades, replacement projects and facility cooling expansions.

Suitable Products, Fluids and Equipment

Chilled Water: Treated chilled water used in compatible commercial air conditioning, HVAC and industrial cooling systems.

Process Cooling Water: Compatible water-based cooling fluids used to remove heat from manufacturing machinery and industrial equipment.

Glycol Cooling Solutions: Compatible glycol/water mixtures where system design, operating temperatures and manufacturer specifications permit their use.

Commercial HVAC Air Handlers: Compatible chilled water air handling equipment and cooling coils used in commercial building air conditioning systems.

Industrial Manufacturing Equipment: Injection molding machines, extrusion equipment, industrial production machinery and compatible process equipment requiring liquid cooling.

Food and Beverage Equipment: Compatible processing machinery, production equipment and heat exchange systems requiring chilled water.

Pharmaceutical Equipment: Compatible production machinery, process cooling systems and equipment requiring controlled cooling water temperatures.

Printing Equipment: Industrial printing machinery and compatible production systems requiring process cooling.

Packaging Machinery: Temperature-sensitive packaging equipment and production components requiring liquid cooling.

Industrial Heat Exchangers: Compatible liquid-to-liquid heat exchangers and secondary process cooling circuits.

Commercial Air Distribution Systems: Compatible HVAC ductwork and air handling systems requiring conditioned air for building temperature control.

Industrial Air Handling Systems: Compatible commercial and industrial ventilation arrangements requiring air handling with electric heating capability.

Laboratory Equipment: Compatible temperature-sensitive instruments and research equipment requiring chilled liquid circulation.

Fluid compatibility, chilled water temperature, circulation flow requirements, HVAC system configuration and electric heating integration should be verified for each application.
Frequently Asked Questions
- What is the cooling capacity of this Trane CGAM 020F chiller?
The Trane CGAM 020F is rated for approximately 20 tons of nominal cooling capacity, equivalent to 240,000 BTU/hour or approximately 70.3 kW. Actual cooling performance depends on ambient temperatures, water temperatures, circulation flow rates and operating conditions.
- What type of chiller is the Trane CGAM 020F?
The CGAM 020F is an air-cooled scroll liquid chiller designed to provide chilled water for commercial HVAC and compatible industrial process cooling applications.
- Does this equipment include both a chiller and an air handler?
Yes. The system includes a Trane CGAM 020F 20-ton air-cooled liquid chiller and a Trane CSAA006UBL00 Performance Climate Changer air handler equipped with a 17.5 kW electric heating coil section.
- What is the Trane Performance Climate Changer air handler?
The Performance Climate Changer is a Trane commercial air handling product series designed for building air distribution and temperature control. This particular Model CSAA006UBL00 includes an electric heating coil section rated at 17.5 kW.
- Does the included air handler provide heating capability?
Yes. The included air handler features a 17.5 kW electric heating coil section with a specified maximum output air temperature of 104°F.
- What is the heating capacity of the electric coil?
The electric heating coil is rated at 17.5 kW, equivalent to approximately 59,700 BTU/hour of electrical heating input.
- What is the maximum air temperature specified for the air handler?
The supplied specifications identify a maximum output air temperature of 104°F for the Trane Performance Climate Changer air handler.
- Can the chiller and air handler provide both heating and cooling?
The chiller provides chilled water cooling, while the included air handler has an electric heating coil section. When appropriately configured with compatible cooling coils, controls and distribution equipment, the components may be incorporated into an HVAC system providing both heating and cooling.
- How many circulation pumps are included?
The system includes two 5 HP circulation pumps for chilled water handling and distribution, providing a combined installed pump motor rating of 10 HP.
- What refrigerant does the Trane CGAM 020F use?
The chiller utilizes R-410A refrigerant with an approximate specified charge of 45 lbs. Actual refrigerant charge and service requirements should be confirmed before operation.
- Does this chiller require a cooling tower?
No. The CGAM 020F uses an air-cooled condenser to reject heat to ambient air, eliminating the need for a separate cooling tower for condenser heat rejection.
- What are the chiller's refrigeration design pressures?
The high-side refrigeration design pressure is 650 PSI, and the low-side design pressure is 238 PSI. These values describe the refrigerant circuit and should not be interpreted as chilled water operating pressure ratings.
- What electrical service is required?
Both the chiller and included air handler are specified for 460 volts, 3-phase, 60 Hz electrical service. Individual electrical loads, circuit protection and installation requirements should be verified using the equipment nameplates and documentation.
- Can this Trane chiller be used for industrial process cooling?
Yes. The chiller may be suitable for compatible industrial cooling applications requiring approximately 20 tons of nominal cooling capacity, including plastics processing, manufacturing equipment cooling and industrial chilled water circulation.
- Can this system be used for commercial building HVAC?
Yes. The chiller is designed for commercial chilled water applications, and the included Trane Performance Climate Changer air handler provides additional air handling and electric heating capabilities. Final integration depends on building load requirements and equipment compatibility.
- Can the Trane CGAM 020F be used for plastics processing?
Potentially. Industrial chillers are used to supply cooling water for compatible injection molding machines, extrusion equipment and other plastics manufacturing operations. Required cooling capacity, water temperatures and flow rates should be evaluated.
- Is the Trane CGAM 020F UL listed?
Yes. The supplied specifications identify the chiller as UL listed.
- Can this equipment operate with glycol-based cooling fluids?
Compatible glycol/water mixtures may be suitable depending on fluid concentration, operating temperature, system configuration and manufacturer requirements.
- Can Aaron Equipment help determine whether this chiller and air handler are suitable for my facility?
Yes. Aaron Equipment can assist with reviewing the available specifications, cooling capacity, heating coil rating, electrical requirements, circulation pumps and HVAC equipment configuration to help evaluate suitability for a particular installation.
- Can Aaron Equipment arrange shipping for this chiller and air handling system?
Yes. Aaron Equipment can assist with coordinating domestic and international freight transportation. Dimensions, shipping weights, lifting requirements and loading arrangements for both the chiller and air handler should be confirmed before shipment.
- How can I request pricing, photographs or additional information?
Contact Aaron Equipment to request pricing, current availability, photographs, available technical documentation and additional information regarding Trane Model CGAM 020F, Serial #U21M04243, and the included Trane Performance Climate Changer air handler.
