USED ITW GEMA Paint Systems & Equipment Including Powder Coating Lines

Gema & Trimac Powder Coat Paint System

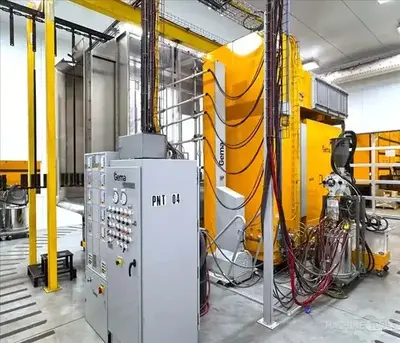

GEMA Smart-10K Electrostatic Powder Coat Paint System
Opening: 48” x 96”

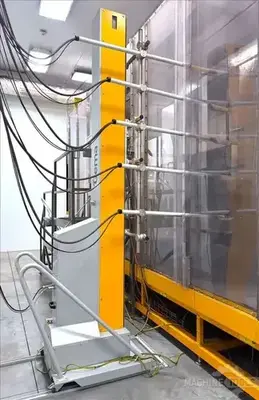

(2) 2020 GEMA Reciprocator ZA08-23 5-Gun Automatic Spray Systems w/ Gema OptiStar Guns Controls & (2) GEMA OptiMove Axis Controls

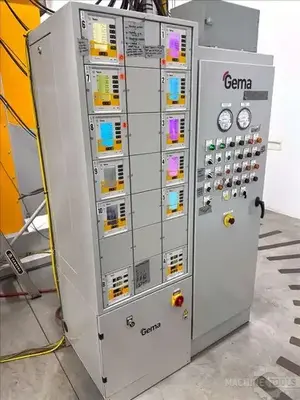

(2) GEMA OptiFlex Manual Guns w/ OptiStar CG13 Gun Controls

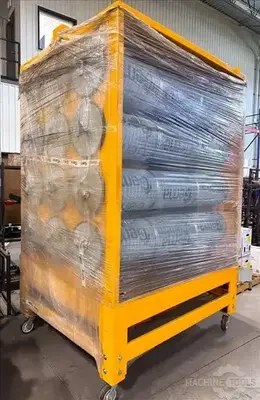

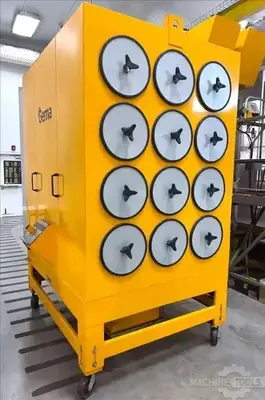

Reclaim System w/ (2) 12-Cartridge Filters (NEW - Never Used 12-Cartridge Filter Included)

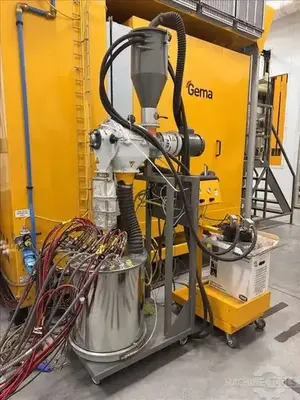

Powder Hopper
Thermal Wrap System

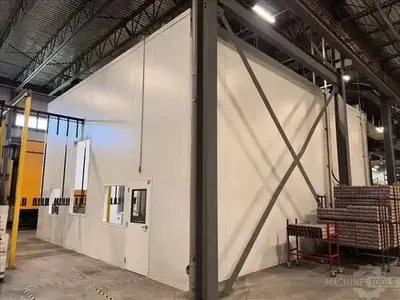

Environmental Room
Smooth White Steel/Foam/Steel Tongue & Groove Panel
R-119 Encapsulated Insulation
Hi-Bay Lights
10' x 10' Garage Door
(2) Man Doors
Total Dimensions (W x H x L): 30’8” x 18’ x 30’8”

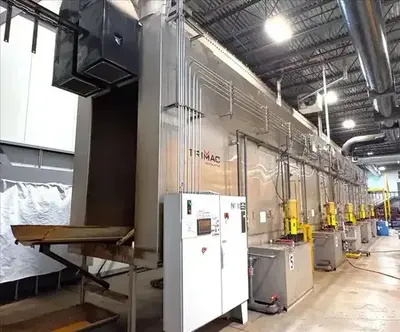

2021 TRIMAC INDUSTRIAL SYSTEMS KEMAC Stainless Steel 5-Stage Wash
Stage 1: Wash - 8’ Length, 1476 Gallon Tank, 80 Seconds, 140°F, 2.8 GPM Nozzles, (9) Risers, 172 Nozzles, 482 GPM Pump, 15 HP
Stage II: Rinse - 5’ Length, 950 Gallon Tank, 50 Seconds, Ambient. Drain - 8’ Length, 80 Seconds
Stage III: Phos - 5’ Length, 950 Gallon Tank, 50 Seconds, 120°F
Stage IV: Rinse - 5’ Length, 950 Gallon Tank, 5 Seconds
Stage V: Rinse - 5’ Length, 950 Gallon Tank, 50 Seconds, Ambient. Exit Drain - 8’ Length, 80 Seconds
Stages 2-5: 2.8 GPM Nozzles, (6) Risers Each Stage, (114) Nozzles Each Stage, 319 GPM Pumps, 10 HP Motors, (2) 30” 6600 CFM Exhaust Fans
Total Dimensions (W x H x L): 13’6” x 9’6” x 76’

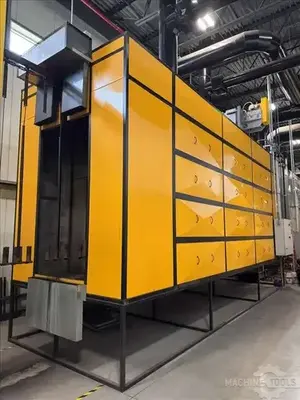

2021 TRIMAC INDUSTRIAL SYSTEMS GAS CAT DRY Infrared Dry-Off Oven
Thermal Wrap System w/ 3500 CFM High Temp. Recirculation w/ Adjustable Controls
Variable Speed Motor Control for Air Volume
High Reflective Aluminum Insulated Panel Construction
(16) 24” x 72” Gas Cat Catalytic Heating Units @ 72,000 BTU/hr Each
192 Sq/ Ft. Catalytic Surface Area - Total of 1,152,000 BTU/Hr
Line Speed: 6 FPM
Opening: 48" x 96"
Hook Slot: 8" x 18"H
Heated Process Time: 2.5 Minutes
(2) 1500 CFM Exhaust Fans
(2) 2500 CFM Recirculation Fans
Total Dimensions (W x H x L): 12' x 7'2" x 27'

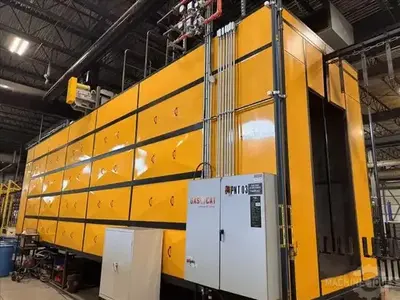

2021 TRIMAC INDUSTRIAL SYSTEMS GAS CAT CURE Infrared Cure/Bake Oven
Thermal Wrap System w/ 5000 CFM High Temp. Recirculation w/ Adjustable Controls
Variable Speed Motor Control for Air Volume
(32) 24” x 72” Trimac Flamless Gas Cat Catalytic Heating Units @ 72,000 BTU/hr Each
384 Sq. ft. Catalytic Surface Area - Total of 2,304,000 BTU/Hr. 4-Zone
576,000 BTU/Hr Per Zone w/ (8) Emitters/Zone
High Reflective Aluminum Insulated Panel Construction
Line Speed: 6 FPM
Opening: 48" x 96"
Hook Slot: 8" x 18"H
Heated Process Time: 5 Minutes
(2) 1500 CFM Exhaust Fans
(2) 2500 CFM Recirculation Fans
Total Dimensions (W x H x L): 12' x 7'2" x 42'

Conveyor System
Enclosed Track Monorail
Centers: 8"
Length: 350'
Max. Weight Per Hanger: 125 lb.

Drawings Available Upon Request
