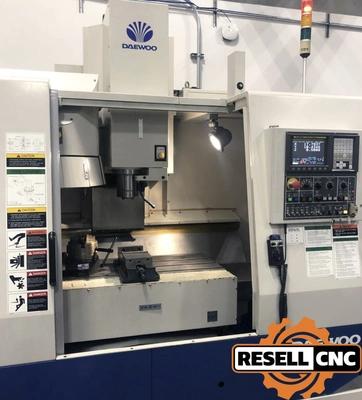

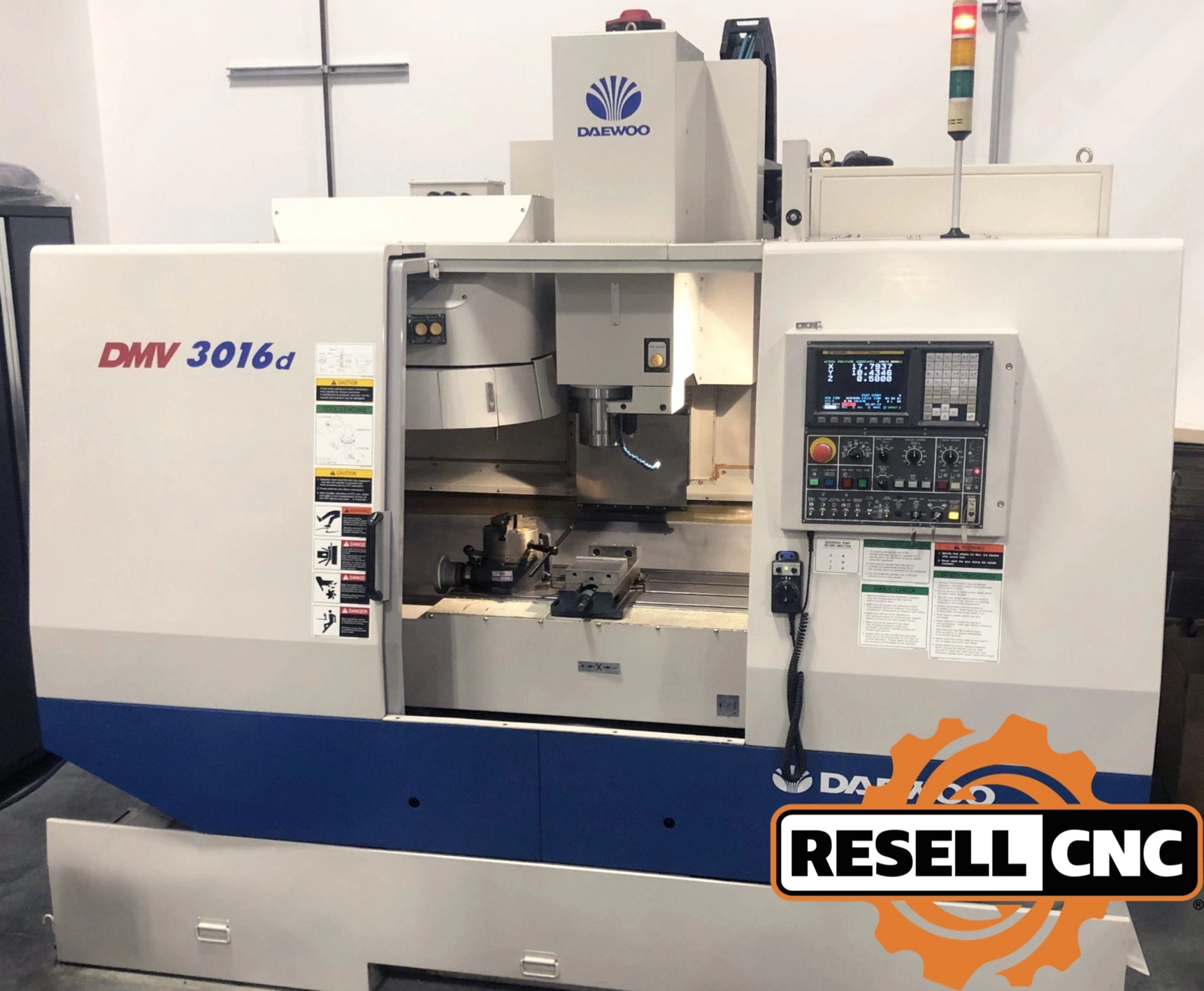

USED 2004 DAEWOO DMV 3016

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Numerous Canned Cycles

Mirrored Imaging

Engraving Program

RS232C I/O Device

Additional Machine Specs: Box Way Construction on X,Y,and Z Axes

Automatic Lubrication System

Clamping Kit

Leveling Pads

Frequency: 60Hz

Power: 35KVA

Positional Accuracy: ± .005mm/full stroke

Repeatability: ± .002mm

B Axis: false
C Axis: false
Control Make Model: Fanuc CNC Control
Control Options: Rigid Tapping, Rotation and Scaling
Coolant Type S: Flood Coolant
Electrical: 208V
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 15
Spindle Speed: 8000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Magazine Capacity: 20.0
Twin Turret: false
Vertical Table Pallet Size: 39.37" x 17.72
X Travel: 32.28
Y Axis: false
Y Travel: 16.14
Z Travel: 20.08
