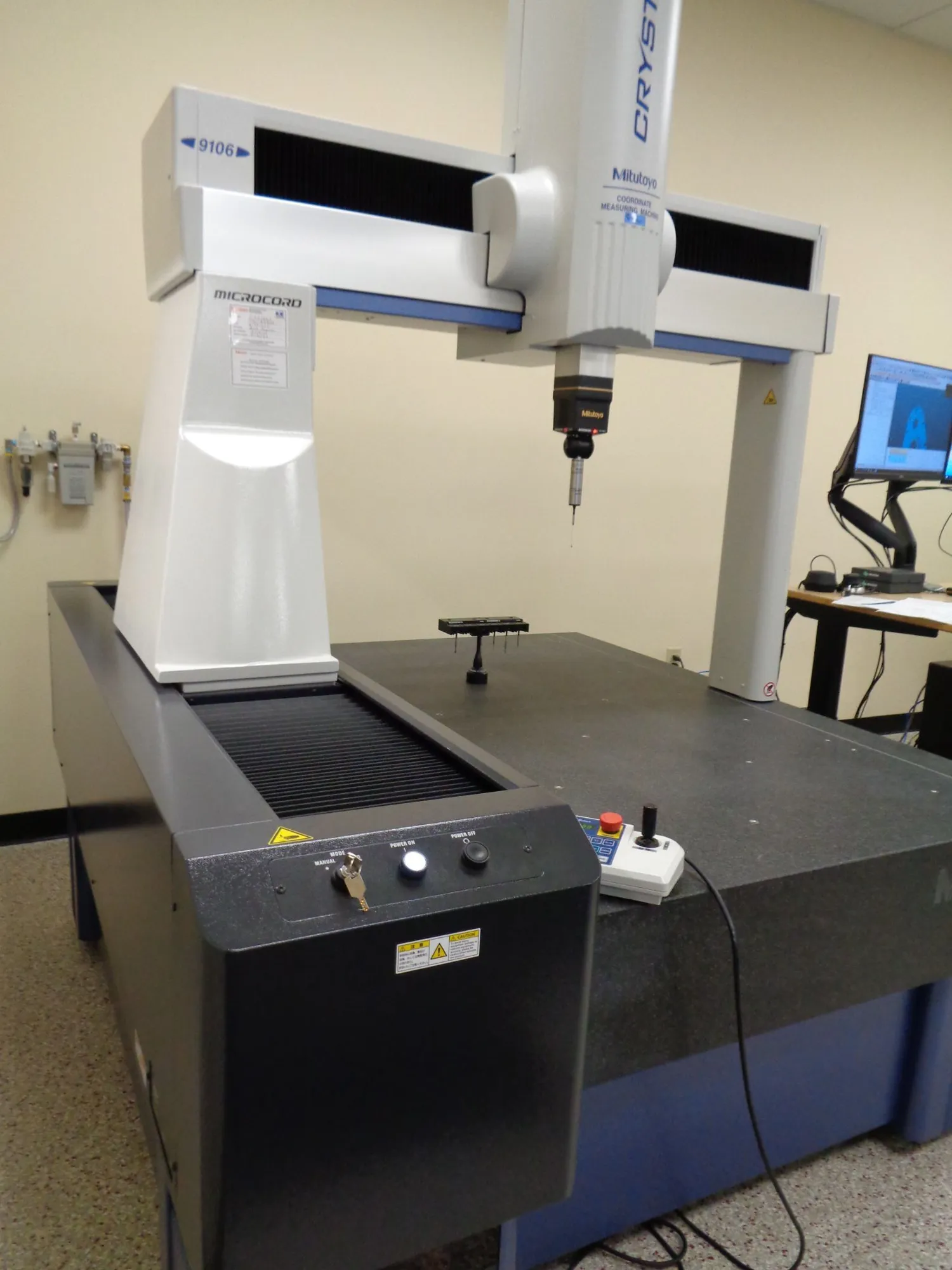

USED 2018 MITUTOYO CRYSTA-APEX S9106
Overview
Description
The Mitutoyo Crysta-Apex S9106 is a high-performance CNC coordinate measuring machine (CMM) designed for high-speed, high-accuracy measurements. It is particularly known for its integrated temperature compensation system, which allows it to maintain precision even in environments ranging from 16°C to 26°C.
***CURRENTLY CRATED BY MITUTOYO AND NOT IN USE***
Specifications
| X | 35.4" | 899.16 mm |
|---|---|---|
| Y | 39.4" | 1,000.8 mm |
| Z | 23.6" | 599.44 mm |
| Control | CNC | CNC |
Measuring Range (X, Y, Z): 905 x 1005 x 605 mm
Resolution: 0.1 µm (0.0001 mm)
Table Size: 880 x 1720 mm
Maximum Workpiece Height: 800 mm
Maximum Workpiece Loading: 1,200 kg
Machine Mass: Approximately 2,231 kg (including controller and stand)
Table Material: Granite with M8 x 1.25mm tapped inserts
Guaranteed AccuracyTemp Range: 16°C to 26°C (60.8°F to 78.8°F)
Air Supply Pressure: 0.4 MPa (approx. 58 PSI)
Air Consumption: 60 L/min (normal conditions); 120 L/min source recommended.
Guide System: High-precision air bearings on each axis.
***CURRENTLY CRATED BY MITUTOYO AND NOT IN USE***
Equipped With
MCOSMOS software
Many enhancements
