USED 2017 FICEP EXCALIBUR 1201 DE

Available Immediately. Please note: Sold “as‑is, where‑is.” Pricing excludes decommissioning, loading, shipping, installation, training, taxes, and all other associated costs.

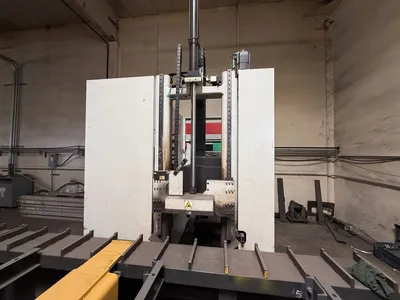

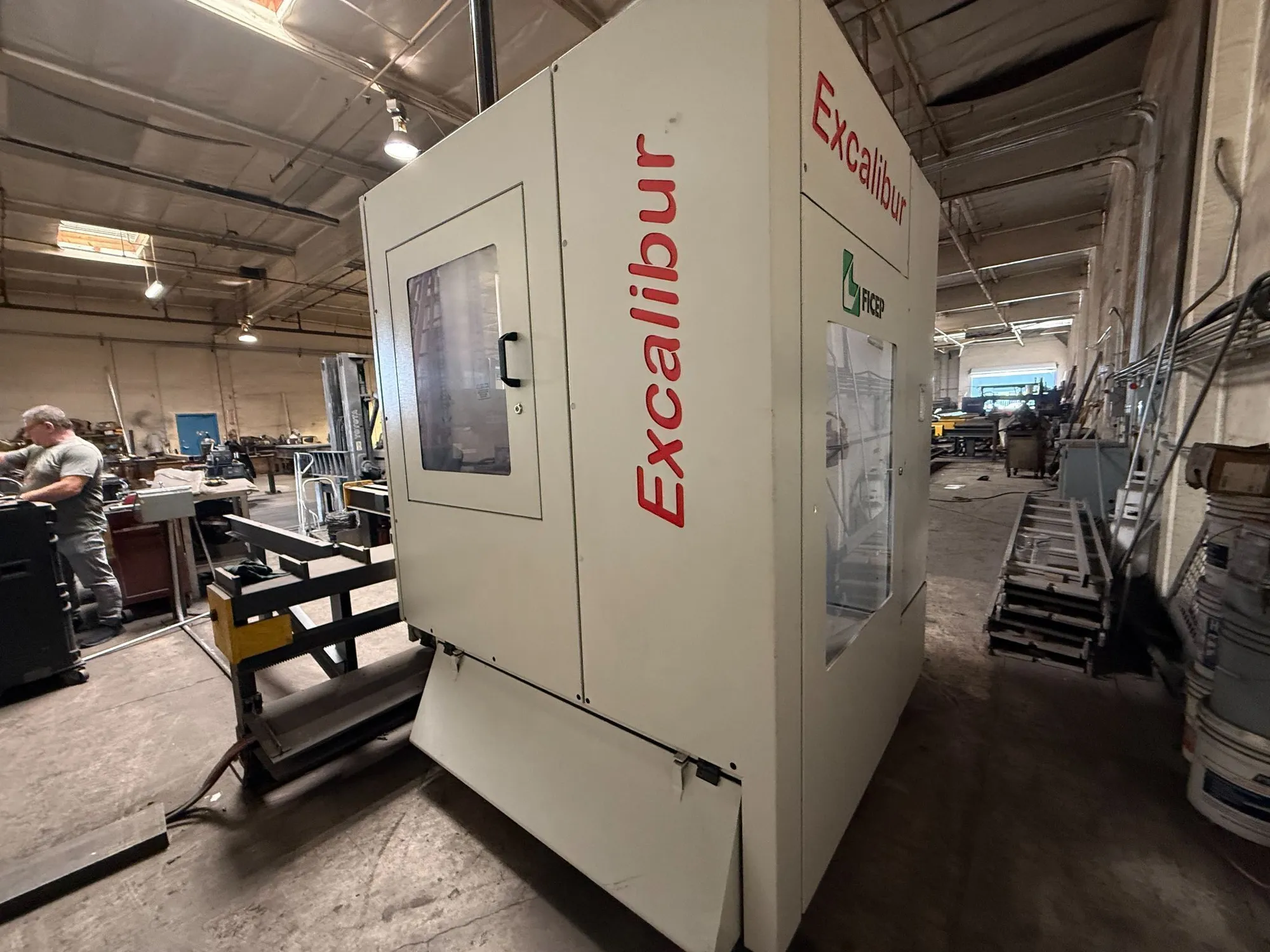

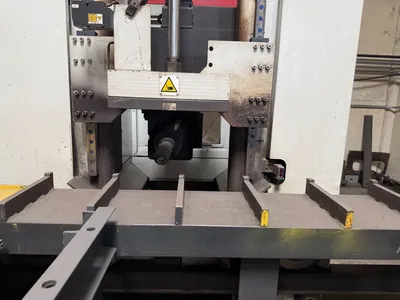

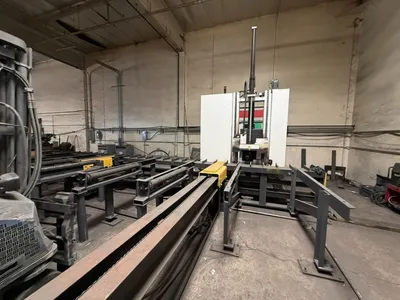

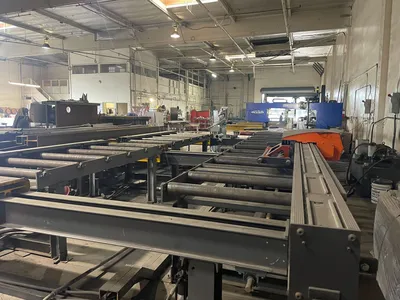

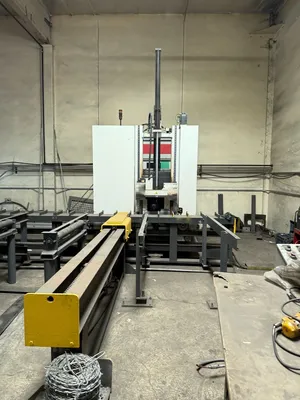

2017 Ficep Excalibur CNC Single‑Spindle Beam Drill Line Specs:

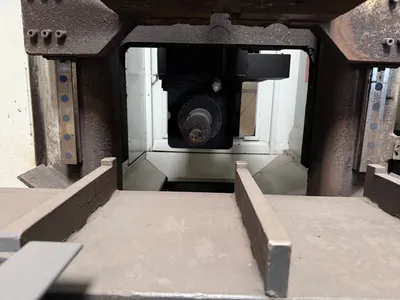

Drill Heads: 1 vertical / monospindle head
Spindles: 1
Spindle Power: 25 HP (19 kW)
Spindle Speed: 180–4,000 RPM (some later configs up to 5,000 RPM)
Max Drill Diameter: 1‑9/16" (40 mm)

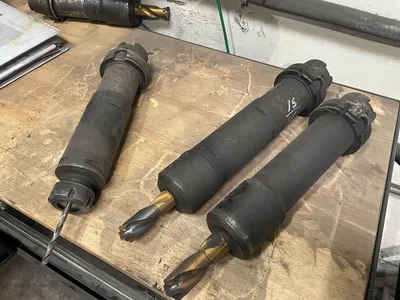

Tool Changer: 6‑station automatic tool changer
Tool Holder: HSK A80
Max Beam Capacity: 47" × 47" (1200 × 1200 mm)
Minimum Section Depth: 2"

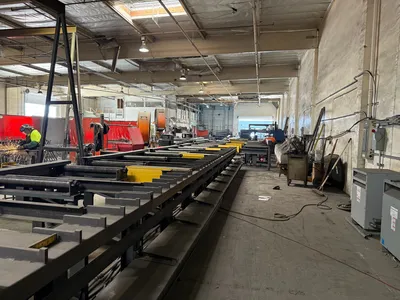

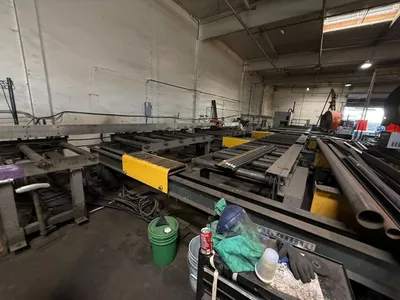

Beam Processing Length: Typically 50–60 ft systems
X‑Axis Speed: ~115–138 FPM
Y‑Axis Speed: ~470–742 IPM

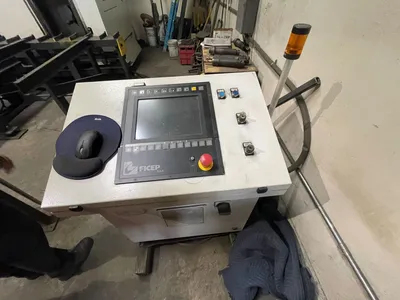

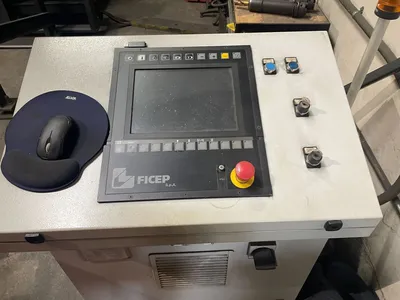

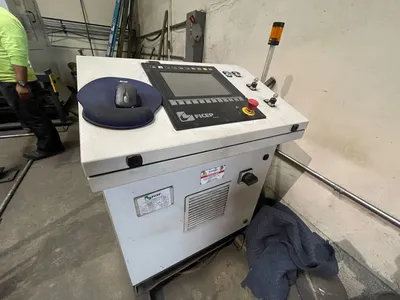

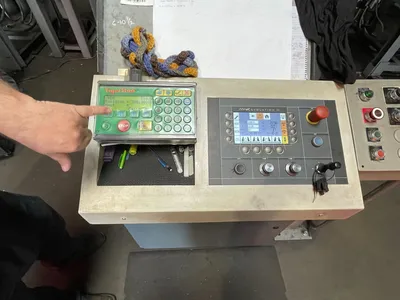

CNC Control: Pegaso REX12 / Ficep Windows‑based CNC
Spindle Type: Direct drive
Coolant System: Internal & external drill coolant

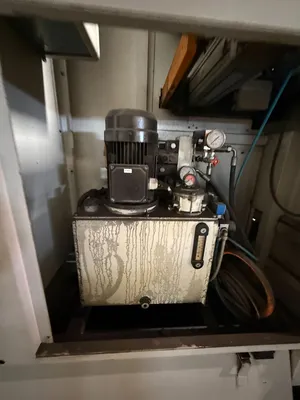

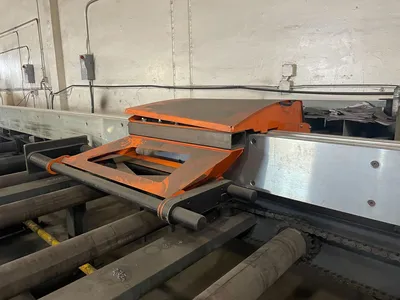

Clamping System: Automatic hydraulic top/bottom clamp

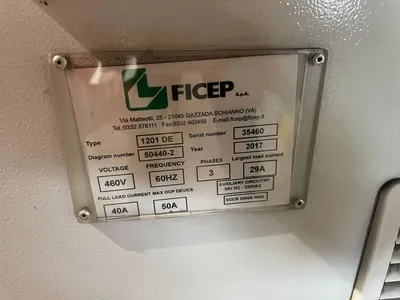

Power Requirement: 460V / 3‑phase
Material Types: Wide flange, HSS tube, channel, angle, flat bar

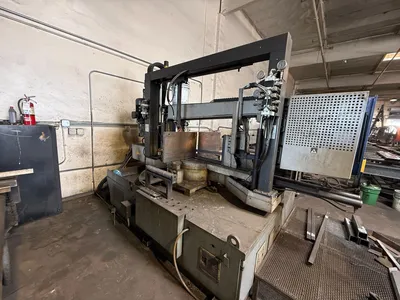

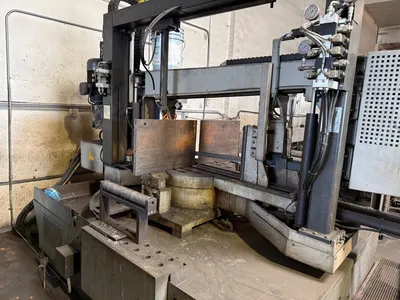

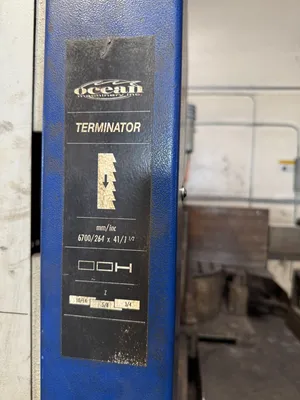

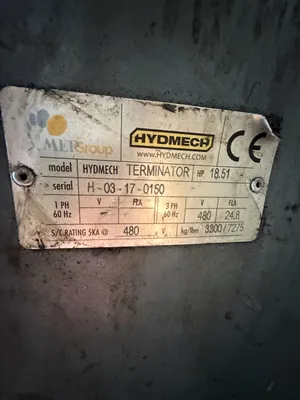

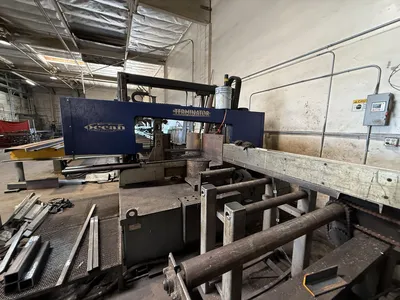

2017 Ocean Terminator DCM 18/25 Horizontal Dual-Column Automatic Band Saw Specs:

Type: Horizontal Automatic Band Saw
Saw Style: Dual-column production saw
Cutting Capacity
Round Capacity: 18"
Rectangle Capacity: 18" × 25"
Blade Size: 1.5" × 0.05" × 19' 0" (varies slightly by year)
Blade Speed: 60–300 FPM (variable)
Blade Tension: Hydraulic
Blade Guides: Carbide + roller guides
Blade Motor: ~10 HP
Hydraulic Motor: ~3 HP
Feed Type: Automatic hydraulic feed
Material Feed Stroke: ~25" per stroke

Tigerstop measuring device is included in the OceanTerminator Saw.
