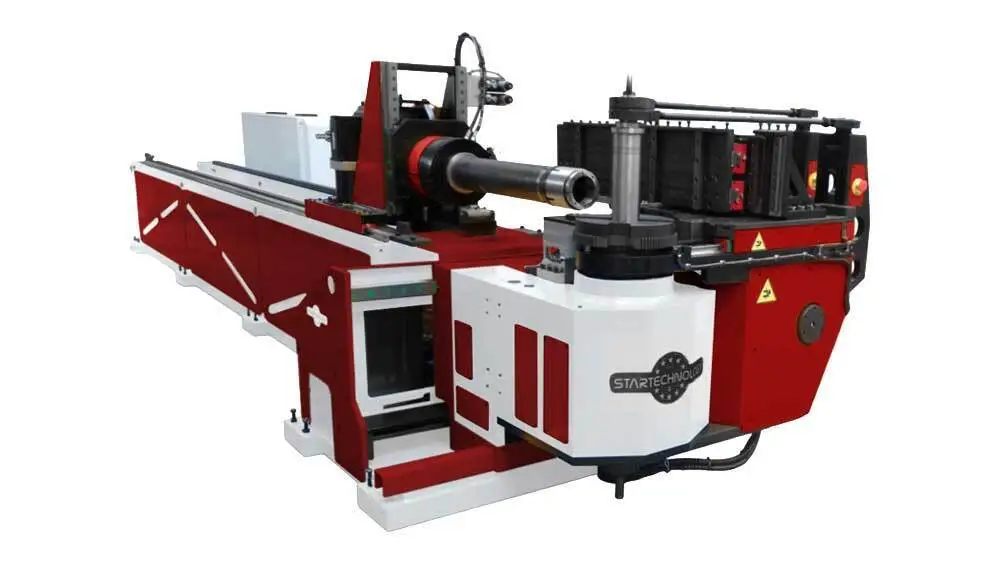

NEW STAR TECHNOLOGY HEAVY BEND 1200 SERIES

The Heavy Bend 1200 Series from Star Technology is a heavy-duty CNC tube and pipe bending solution engineered for large-capacity bending, advanced automation, and demanding industrial manufacturing applications. Manufactured in Italy, the Heavy Bend 1200 Series offers multiple automation levels and configurable machine layouts to support complex tube fabrication requirements across a wide range of industries.

Specifications & Configurations May Vary Depending on Heavy Bend 1200 Model & Automation Level

Maximum Mild Steel Tube Capacity: 120 x 10 mm
Maximum Stainless Steel Tube Capacity: 100 x 8 mm
Maximum Aluminum/Copper Tube Capacity: 140 x 10 mm
Maximum Bending Radius: 600 mm
Useful Length on Clamp: 5,000 mm
Useful Length on Mandrel: 7,000 mm
Maximum Bar Passage Diameter: 115 mm
Head Clearance Radius: 300 mm
Power Supply: 400/480 V
Operating Frequency: 50/60 Hz
Maximum Power: 65 kW
Approximate Machine Weight: 9,500 kg
Heavy-Duty CNC Bending Technology
Left or Right Bending Capability
Integrated 3D Part Simulation
File Import Programming Capability
Brushless Servo-Controlled Axes
Hydraulic & Pneumatic Axis Integration
Made in Italy
ISO 9001:2008 Certified System

STI Exclusive Machine Control System
Simplified Graphical User Interface
Integrated 3D Tube Simulation Software
File Import Programming Capability
Brushless Servo-Controlled Bending Axis
Hydraulic Clamp System
Hydraulic Shoulder System
Hydraulic Mandrel System
Pneumatic Following System
Pneumatic Die Return System
Pneumatic Mandrel Movement
Left or Right Bending Capability
Multiple Heavy Bend 1200 Series Configurations Available
Configurable Automation Layouts
ISO 9001:2008 Certified System
