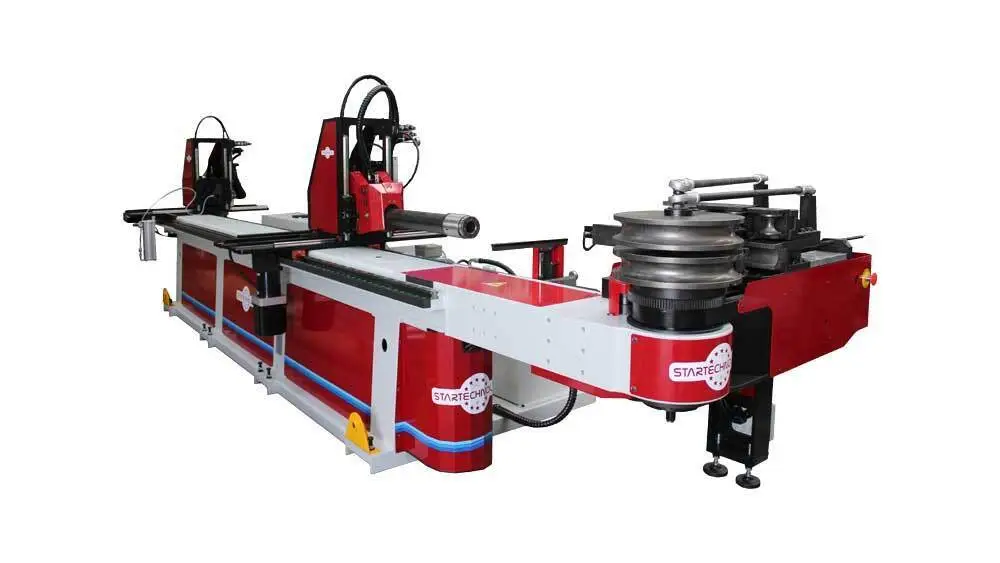

NEW STAR TECHNOLOGY FULL BEND 800 SERIES

The Full Bend 800 Series from Star Technology is a fully electric CNC tube and pipe bending solution engineered for large-capacity bending, advanced automation, and high-production manufacturing environments. Manufactured in Italy, the Full Bend 800 Series offers multiple automation levels and configurable machine layouts to support demanding industrial tube fabrication applications.

Specifications & Configurations May Vary Depending on Full Bend 800 Model & Automation Level

Maximum Mild Steel Tube Capacity: 80 x 5 mm
Maximum Stainless Steel Tube Capacity: 70 x 4 mm
Maximum Aluminum/Copper Tube Capacity: 90 x 5 mm
Maximum Bending Radius: 400 mm
Useful Length on Clamp: 4,500 mm
Useful Length on Mandrel: 6,000 mm
Maximum Bar Passage Diameter: 76 mm
Head Clearance Radius: 220 mm
Power Supply: 400/480 V
Operating Frequency: 50/60 Hz
Maximum Power: 35 kW
Approximate Machine Weight: 5,500 kg
Fully Electric CNC Bending Technology
Left or Right Bending Capability
Integrated 3D Part Simulation
File Import Programming Capability
Brushless Servo-Controlled Axes
Made in Italy
ISO 9001:2008 Certified System

STI Exclusive Machine Control System
Simplified Graphical User Interface
Integrated 3D Tube Simulation Software
File Import Programming Capability
Fully Electric Servo-Controlled Bending Axis
Brushless Servo Axis Control
Hydraulic Clamp System
Hydraulic Shoulder System
Hydraulic Mandrel System
Pneumatic Following System
Pneumatic Die Return System
Left or Right Bending Capability
Multiple Full Bend 800 Series Configurations Available
Configurable Automation Layouts
ISO 9001:2008 Certified System
