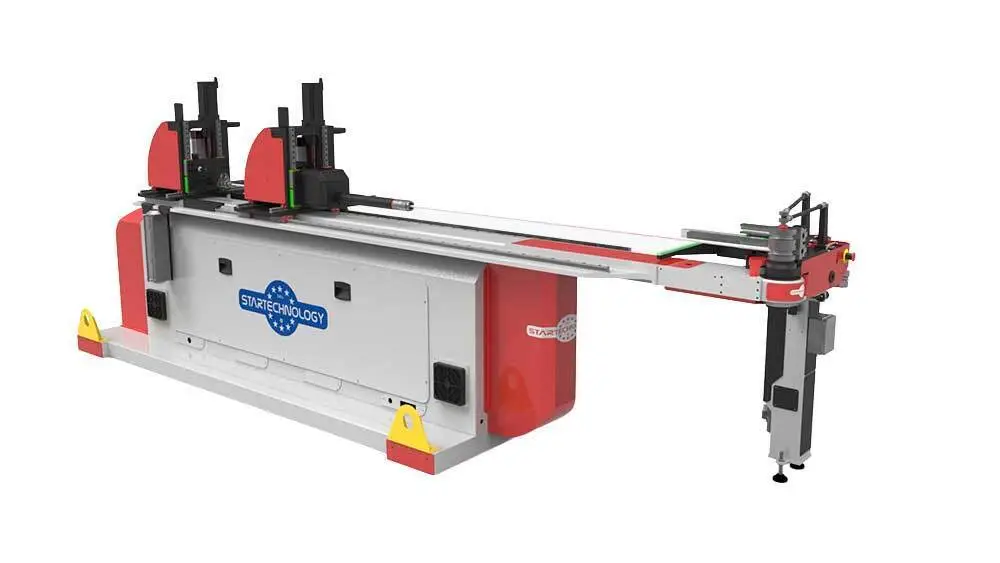

NEW STAR TECHNOLOGY FULL BEND 250 SERIES

The Full Bend 250 Series from Star Technology is a fully electric CNC tube and pipe bending solution engineered for high-precision bending, advanced automation, and efficient production performance. Manufactured in Italy, the Full Bend 250 Series offers multiple automation levels and configurable machine layouts to support demanding tube fabrication applications across a wide range of industries.

Specifications & Configurations May Vary Depending on Full Bend 250 Model & Automation Level

Maximum Mild Steel Tube Capacity: 25 x 3 mm
Maximum Bending Radius: 180 mm
Useful Length Over Mandrel: 3,500 mm
Maximum Bar Passage Diameter: 28 mm
Head Clearance Radius: 90 mm
Power Supply: 400/800 V
Operating Frequency: 50/60 Hz
Maximum Power: 10/15 kW
Approximate Machine Weight: 2,900 kg
Fully Electric CNC Bending Technology
Left or Right Bending Capability
21.5″ Multitouch B&R Control Console
i5 Processor With 16 GB RAM
Integrated 3D Part Simulation
File Import Programming Capability
Brushless Servo-Controlled Axes
Made in Italy
ISO 9001:2008 Certified System

STI Exclusive Machine Control System
Simplified Graphical User Interface
21.5″ Industrial Multitouch Screen
B&R Console With i5 Processor
16 GB RAM Industrial Control Platform
Integrated 3D Tube Simulation Software
File Import Programming Capability
Fully Electric Servo-Controlled Bending Axis
Electric Clamp System
Electric Mandrel System
Brushless Servo Axis Control
Left or Right Bending Capability
Multiple Full Bend 250 Series Configurations Available
Configurable Automation Layouts
ISO 9001:2008 Certified System
