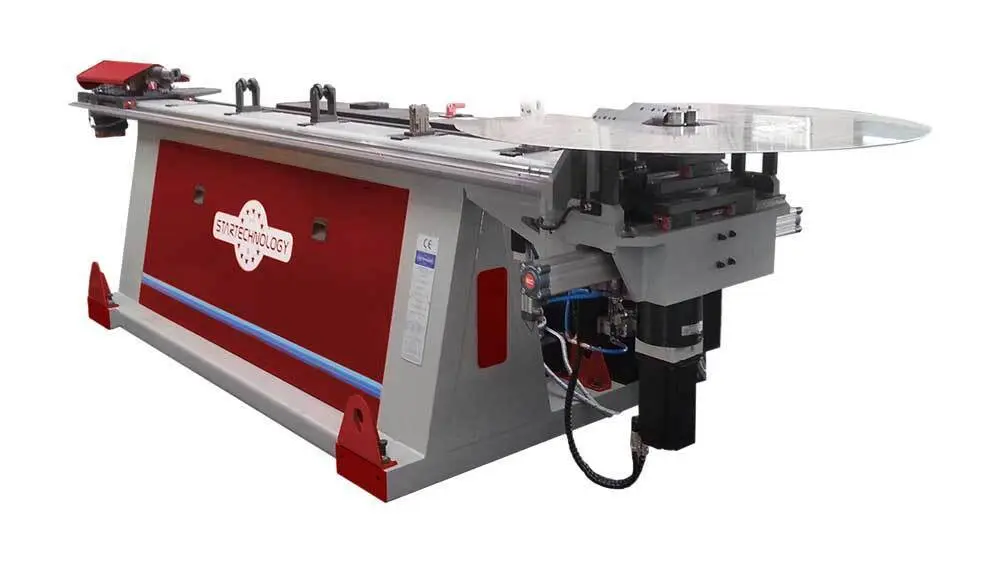

NEW STAR TECHNOLOGY FLEXI BEND 250 SERIES

The Flexi Bend 250 Series from Star Technology is a versatile CNC tube and pipe bending solution designed for flexible production, precision bending, and efficient manufacturing performance. Engineered and manufactured in Italy, the Flexi Bend 250 Series offers multiple automation levels and configurable machine layouts to support a wide range of tube fabrication applications.

Specifications & Configurations May Vary Depending on Flexi Bend 250 Model & Automation Level

Maximum Mild Steel Tube Capacity: 25 x 3 mm
Maximum Stainless Steel Tube Capacity: 20 x 2 mm
Maximum Aluminum/Copper Tube Capacity: 30 x 3 mm
Maximum Bending Radius: 180 mm
Useful Length on Clamp: 2,100 mm
Useful Length on Mandrel: 3,500 mm
Maximum Bar Passage Diameter: 28 mm
Head Clearance Radius: 90 mm
Power Supply: 400/800 V
Operating Frequency: 50/60 Hz
Maximum Power: 10/15 kW
Approximate Machine Weight: 2,900 kg
Left or Right Bending Capability
21.5″ Multitouch B&R Control Console
i5 Processor With 16 GB RAM
Integrated 3D Part Simulation
File Import Programming Capability
Brushless Servo-Controlled Axes
Hydraulic & Pneumatic Axis Integration
Made in Italy
ISO 9001:2008 Certified System

STI Exclusive Machine Control System
Simplified Graphical User Interface
21.5″ Industrial Multitouch Screen
B&R Console With i5 Processor
16 GB RAM Industrial Control Platform
Integrated 3D Tube Simulation Software
File Import Programming Capability
Brushless Servo Bending Axis
Hydraulic Clamp System
Hydraulic Shoulder System
Hydraulic Mandrel System
Pneumatic Tube Support
Pneumatic Die Return System
Pneumatic Mandrel Movement
Pneumatic Position Movement
Left or Right Bending Capability
Multiple Flexi Bend 250 Series Configurations Available
