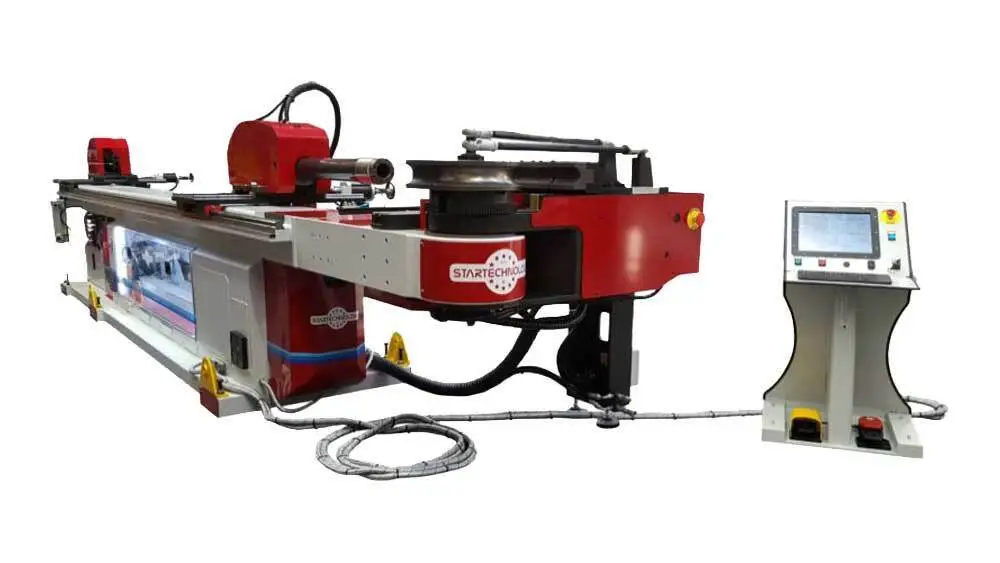

NEW STAR TECHNOLOGY EVO BEND 800 SERIES

The EVO Bend 800 Series from Star Technology is a high-performance CNC tube and pipe bending solution engineered for large-capacity bending applications requiring precision, flexibility, and production efficiency. Manufactured in Italy, the EVO Bend 800 Series offers multiple automation levels and configurable machine layouts to support demanding industrial tube fabrication operations.

Specifications & Configurations May Vary Depending on EVO Bend 800 Model & Automation Level

Maximum Mild Steel Tube Capacity: 80 x 5 mm
Maximum Bending Radius: 400 mm
Maximum Push Length: 4,500 mm
Useful Length Over Mandrel: 6,000 mm
Maximum Bar Passage Diameter: 76 mm
Dimension Under Bending Head: 500 mm
Bending Head Overhang: 1,200 mm
Head Clearance Radius: 220 mm
Power Supply: 400/480 V
Operating Frequency: 50/60 Hz
Maximum Power: 35 kW
Approximate Machine Weight: 5,500 kg
Left or Right Bending Capability
21.5″ Multitouch B&R Control Console
i5 Processor With 16 GB RAM
Integrated 3D Part Simulation
File Import Programming Capability
Brushless Servo-Controlled Axes
Hydraulic & Pneumatic Axis Integration
Made in Italy
ISO 9001:2008 Certified System

STI Exclusive Machine Control System
Simplified Graphical User Interface
21.5″ Industrial Multitouch Screen
B&R Console With i5 Processor
16 GB RAM Industrial Control Platform
Integrated 3D Tube Simulation Software
File Import Programming Capability
Brushless Servo Bending Axis
Hydraulic Clamp System
Hydraulic Shoulder System
Hydraulic Mandrel System
Pneumatic Tube Support
Pneumatic Die Return System
Pneumatic Mandrel Movement
Pneumatic Position Movement
Left or Right Bending Capability
Multiple EVO Bend 800 Series Configurations Available
