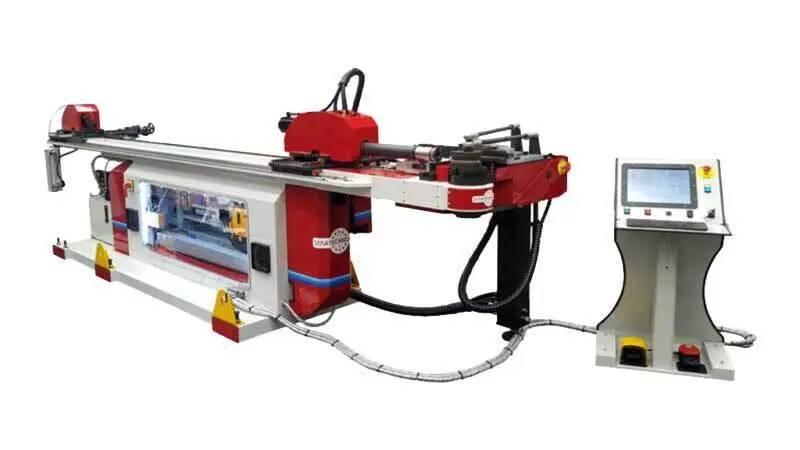

NEW STAR TECHNOLOGY EVO BEND 450 SERIES

The EVO Bend 450 Series from Star Technology is a high-performance CNC tube and pipe bending solution designed for precision bending, production flexibility, and efficient manufacturing workflows. Engineered and manufactured in Italy, the EVO Bend 450 Series offers multiple automation levels and configurable machine layouts to support a wide range of tube fabrication applications.

Specifications & Configurations May Vary Depending on EVO Bend 450 Model & Automation Level

Maximum Mild Steel Tube Capacity: 45 x 3 mm
Maximum Bending Radius: 240 mm
Maximum Push Length: 3,000 mm
Useful Length Over Mandrel: 4,000 mm
Maximum Bar Passage Diameter: 45 mm
Dimension Under Bending Head: 290 mm
Bending Head Overhang: 990 mm
Head Clearance Radius: 125 mm
Power Supply: 200/400/480 V
Operating Frequency: 50/60 Hz
Maximum Power: 18/27 kW
Approximate Machine Weight: 3,400 kg
Left or Right Bending Capability
21.5″ Multitouch B&R Control Console
i5 Processor With 16 GB RAM
Integrated 3D Part Simulation
File Import Programming Capability
Brushless Servo-Controlled Axes
Hydraulic & Pneumatic Axis Integration
Made in Italy
ISO 9001:2008 Certified System

STI Exclusive Machine Control System
Simplified Graphical User Interface
21.5″ Industrial Multitouch Screen
B&R Console With i5 Processor
16 GB RAM Industrial Control Platform
Integrated 3D Tube Simulation Software
File Import Programming Capability
Brushless Servo Bending Axis
Hydraulic Clamp System
Hydraulic Shoulder System
Hydraulic Mandrel System
Pneumatic Tube Support
Pneumatic Die Return System
Pneumatic Mandrel Movement
Pneumatic Position Movement
Left or Right Bending Capability
Multiple EVO Bend 450 Series Configurations Available
