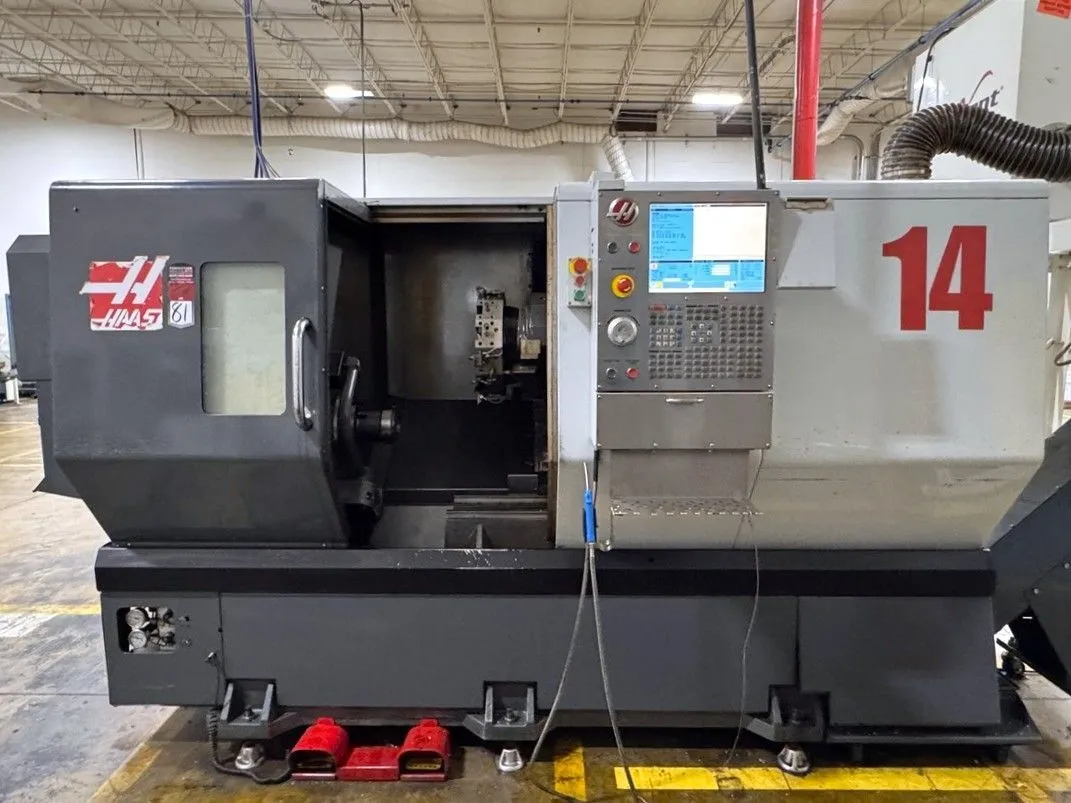

USED 2014 HAAS ST-30

HAAS ST-30 CNC Lathe, 2014 model, in used condition. Features include 31.75" swing, 26" machining length, 10" chuck size, 3" bar capacity, 30 HP power, 3400 RPM max, and 21" turning diameter. Ideal for precise and efficient turning operations.

Chuck: 10″
Max. Part Swing: 21″
Max. Cutting Diameter: 15″
Max. Cutting Length: 32.5″
Bar Capacity: 3″
Distance Between Centers: 32.5″
X-Axis Travel: 9.4″
Z-Axis Travel: 32.5″
X & Z Axis Rapids: 945 IPM
Spindle Nose: A2-6
Spindle Power: 30 HP
Max. Spindle Speed: 3,400 RPM
Spindle Bore: 3.5″
Turret Capacity: 12 Tool

Haas CNC Control
Programmable Hydraulic Tailstock
Tool Presetter
Chip Conveyor
