USED 1985 WHACHEON 20 1/2 x 80
Overview

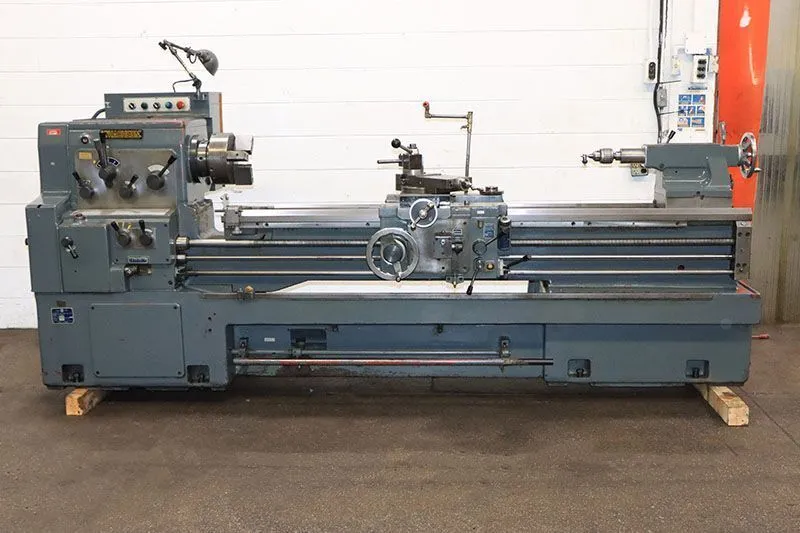

WHACHEON 20 1/2 x 80 used engine lathe from 1985. Features removable gap bed, inch/metric threading, hardened bed ways, 10 HP motor, quick change toolpost, and full-length foot treadle brake. Robust 137"x 54" dimensions. Approx weight: 7,500 lbs.
Specs
.5"/29.5" x 80" WHACHEON GAP BED ENGINE LATHE
S/N: L12851109, NEW 1985
SPECIFICATIONS:
SWING OVER BED AND CARRIAGE WINGS ......... 20-1/2"
SWING OVER GAP ............................ 29-1/2"
LENGTH OF GAP, APPROXIMATELY .............. 7-5/8"
SWING OVER CROSS SLIDE .................... 11-3/4"
DISTANCE BETWEEN CENTERS .................. 80"
SPINDLE HOLE .............................. 2-3/64"
SPINDLE NOSE CAMLOCK ...................... D1-6
HEADSTOCK SPINDLE CENTER TAPER ............ #4 MORSE
SPINDLE SPEEDS (12) ....................... 28 -1,350 R.P.M.
FEED CHANGES, LONGITUDINAL (40) ........... .0010 -.0196 IPR
THREADS, INCH ............................. 4-80 T.P.I.
METRIC .................................... .25-7 MM
TAILSTOCK SPINDLE CENTER TAPER ............ #5 MORSE
TAILSTOCK SPINDLE TRAVEL .................. 6"
APPROXIMATE DIMENSIONS .................... 137"x 54"
APPROXIMATE WEIGHT ........................ 7,500 LBS.
Equipped With
EQUIPPED WITH:
- REMOVABLE GAP BED
- INCH AND METRIC THREADING CAPABILITY
- HARDENED AND GROUND BED WAYS
- THREE-JAW CHUCK
- QUICK CHANGE TOOLPOST WITH HOLDER
- FULL LENGTH FOOT TREADLE OPERATED SPINDLE BRAKE
- THREADING DIAL
- MICROMETER CARRIAGE STOP
- JACOBS DRILL CHUCK FOR TAILSTOCK
- SELF-CONTAINED COOLANT SYSTEM WITH FULL LENGTH REAR SPLASH GUARD
- 10 H.P. 3/60/220-440 VOLT SPINDLE DRIVE MOTOR AND ELECTRICAL CONTROLS
