USED 2002 BRIDGEPORT SERIES 1

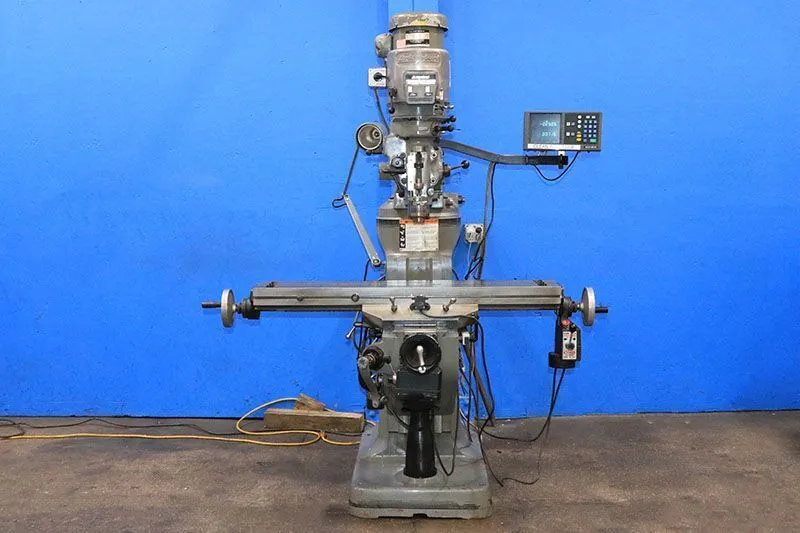

2002 Bridgeport Series 1 vertical mill. 9"x48" table, 36" longitudinal travel, 12" cross travel. Equipped with AcuRite digital readout, servo power feeds, chrome ways, and spray mist coolant system. R-8 spindle taper, 2HP motor. Located in NJ.

BRIDGEPORT VERTICAL MILLING MACHINE
MODEL: SERIES I, S/N: BR 284726, NEW: 2002

SPECIFICATIONS:
TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS

EQUIPPED WITH:
ACURITE TWO AXIS DIGITAL READOUT
SERVO MODEL: TYPE 350X POWER FEED FOR LONGITUDINAL TRAVEL
SERVO MODEL:TYPE 150 POWER FEED FOR CROSS TRAVEL
CHROME WAYS
BIJUR SPRAY MIST COOLANT SYSTEM
BIJUR ONE SHOT LUBRICATION SYSTEM
BRIDGEPORT SERIES I MILLING HEAD S/N: 314709
2 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
